Pinout Values and Diagnostic Parameters

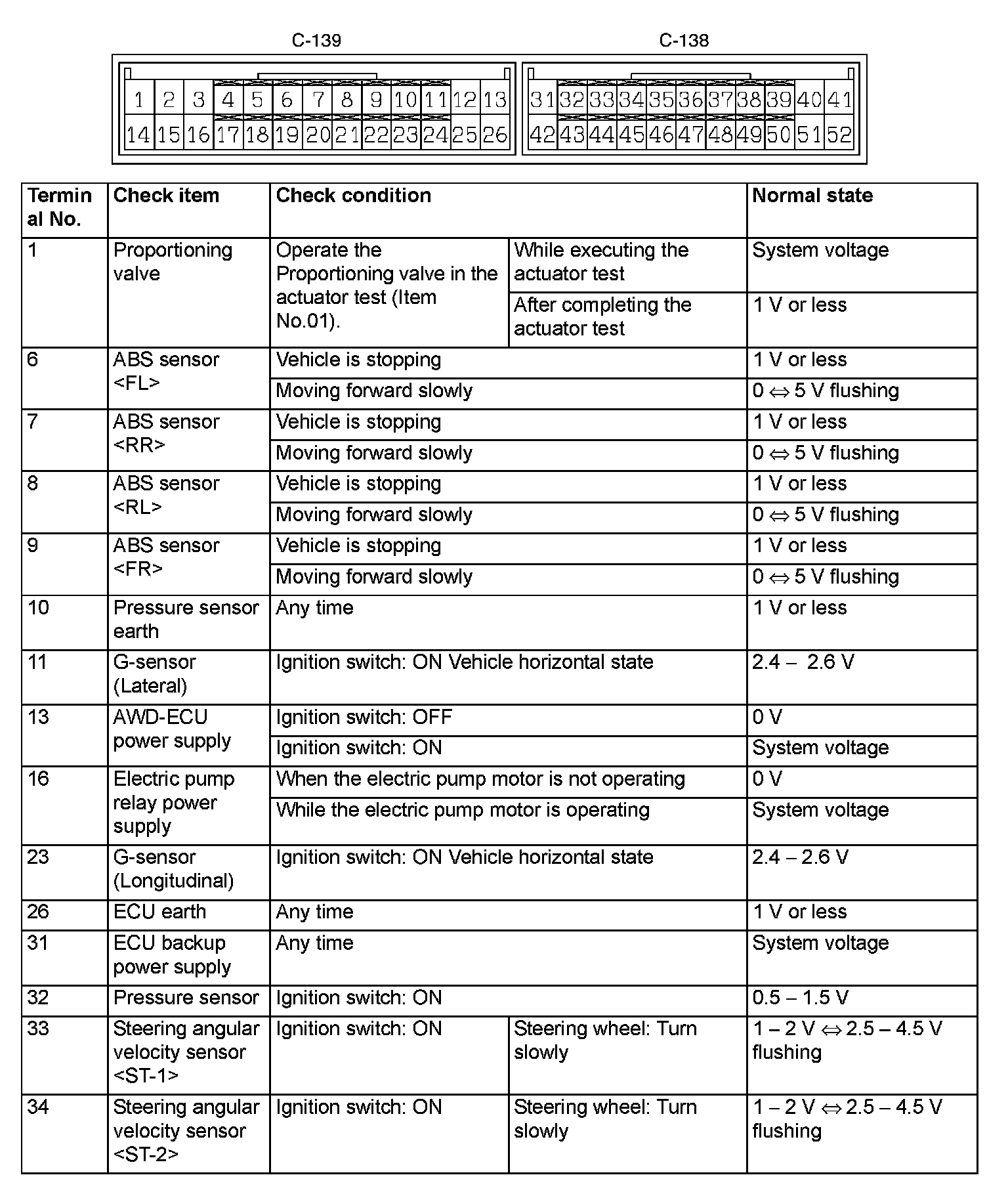

AWD-ECU TERMINAL VOLTAGE REFERENCE CHART FOR ACD (PART 1):

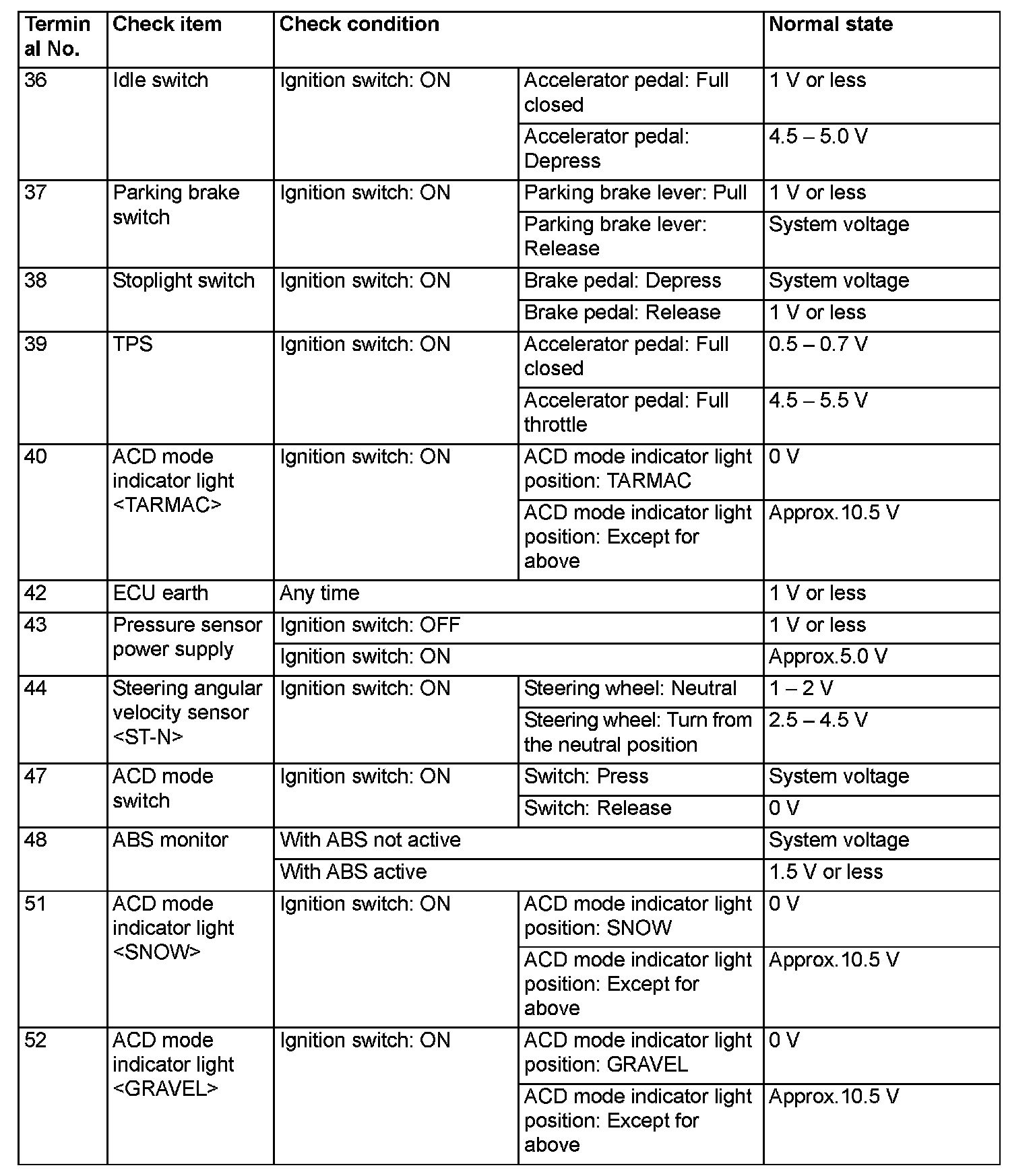

AWD-ECU TERMINAL VOLTAGE REFERENCE CHART FOR ACD (PART 2):
