Diagnostic Function

DIAGNOSTIC FUNCTION
READING DIAGNOSIS CODE

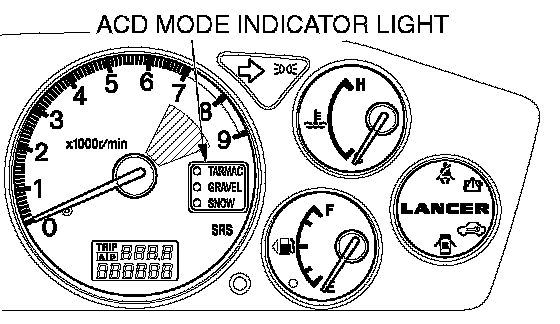

When the ACD has failed, the ACD indicator light illuminates in all modes (remains illuminated until the ignition switch is turned to OFF position). Check the diagnostic trouble codes if the ACD indicator light has illuminated in all modes.
