W6MAA

TRANSFER ASSEMBLY

REMOVAL AND INSTALLATION

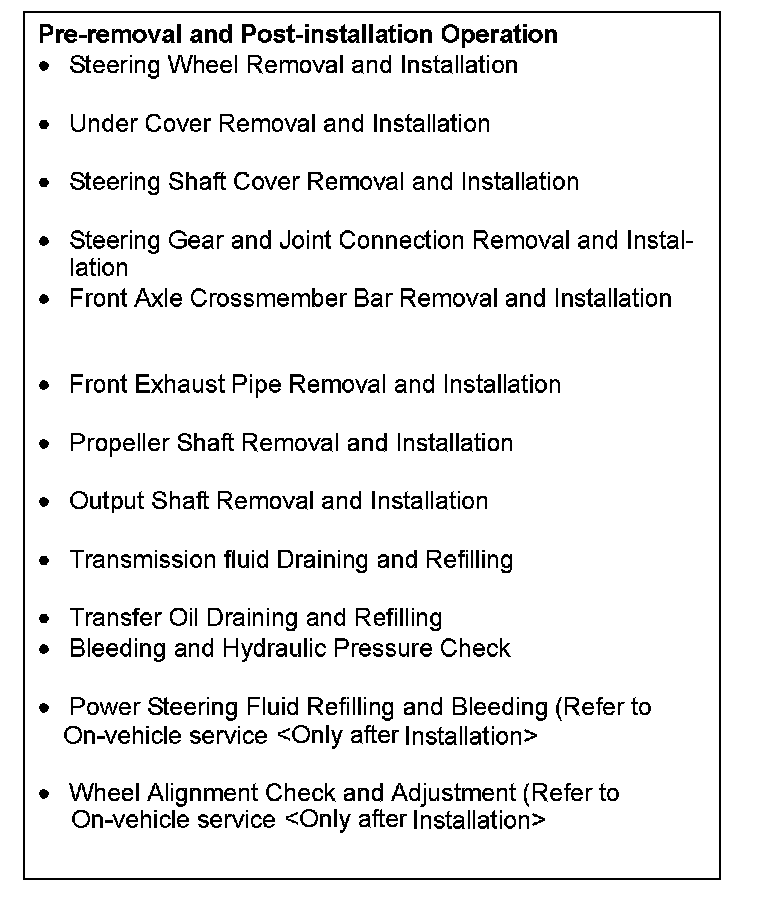

Pre-removal And Post-installation Operation:

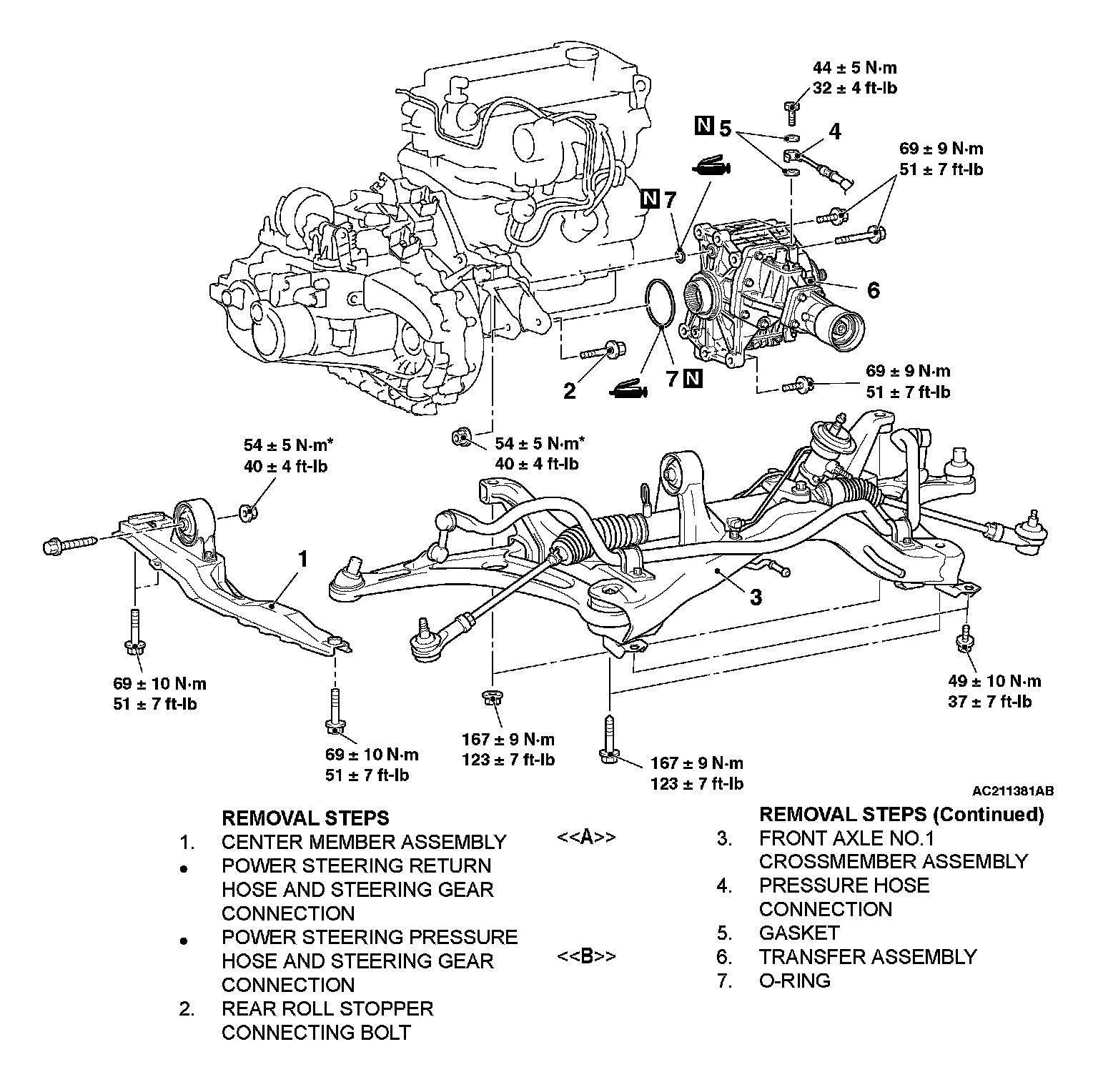

Removal Steps 1-7:

CAUTION:
1. Always refer to Service Precautions and Airbag Modules and Clock Spring before removing the steering wheel and airbag module assembly.
2. If the Brembo brake caliper is used, be careful not to hit parts and tools against the caliper when servicing because the paint of the caliper may delaminate.
3. *: indicates parts which should be temporarily tightened, and then fully tightened with the engine weight applied on the vehicle body.

REMOVAL SERVICE POINTS

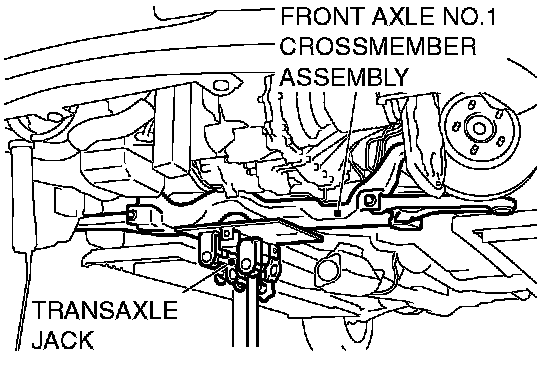

<> FRONT AXLE No.1 CROSSMEMBER ASSEMBLY REMOVAL

Support the front axle No. 1 crossmember assembly with a transaxle jack, and remove the crossmember mounting bolts and the front axle No. 1 crossmember assembly.

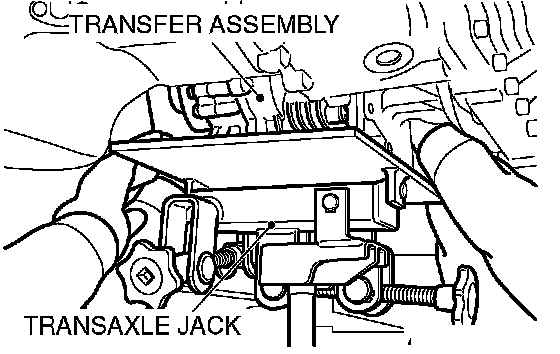

<> TRANSFER ASSEMBLY REMOVAL

Support the transfer assembly with a transaxle jack, and remove the transfer mounting bolts and the transfer assembly.
