W5M51

TRANSFER ASSEMBLY

REMOVAL AND INSTALLATION

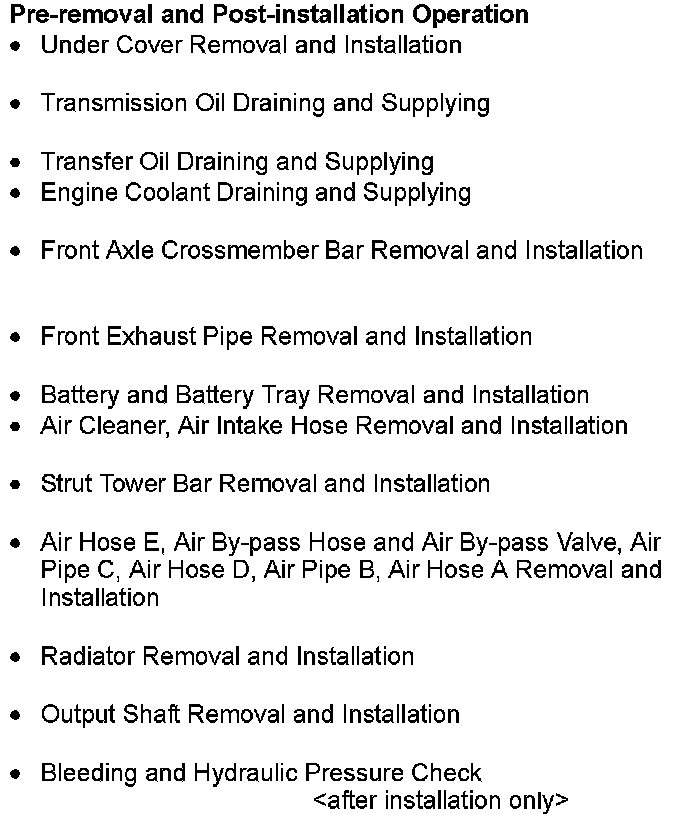

Pre-removal And Post-installation Operation:

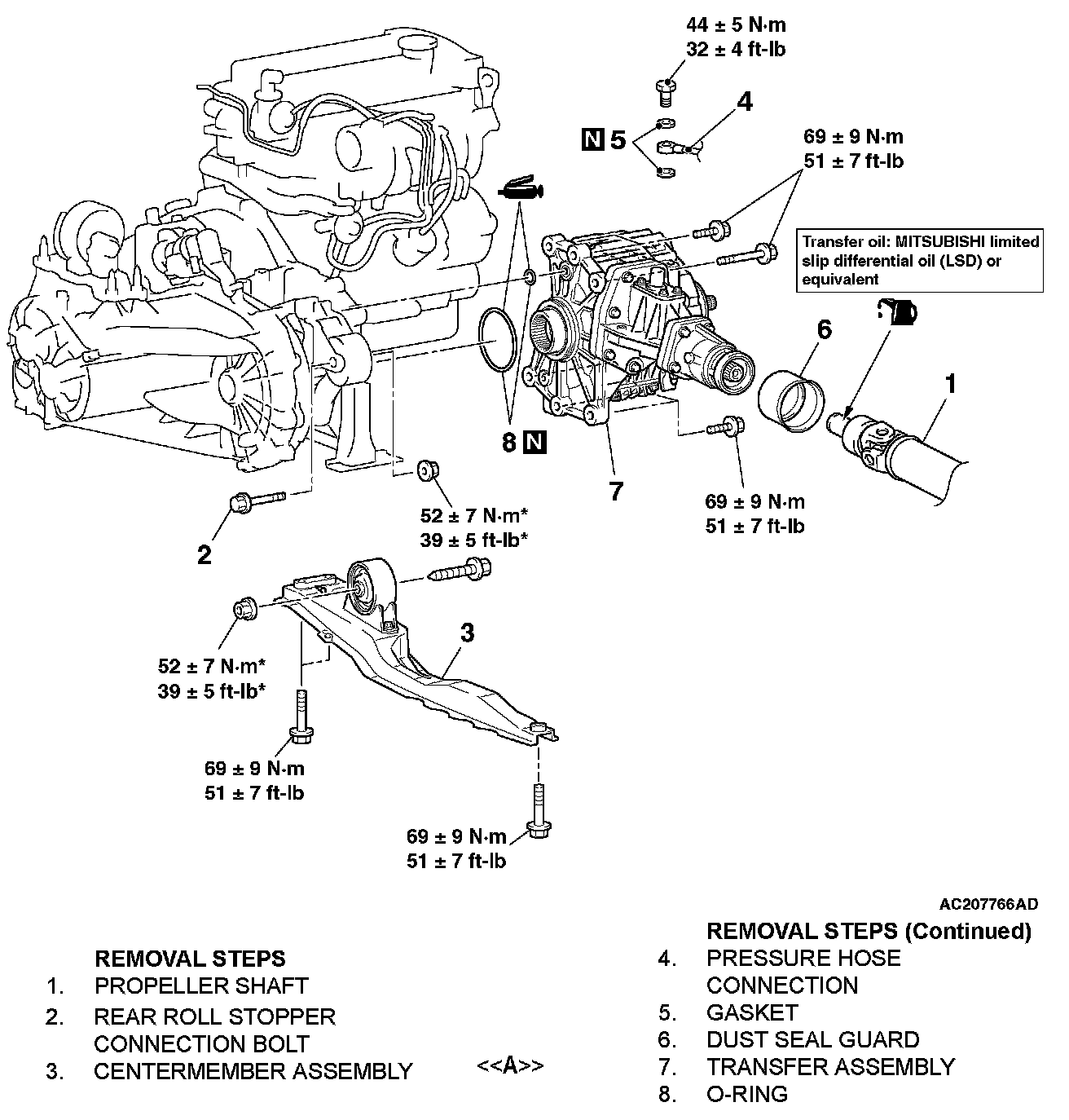

Removal Steps 1-8:

CAUTION:
1. If the Brembo brake caliper is used, be careful not to damage the caliper with parts and tools when servicing because the paint of the caliper may delaminate.
2. *: Indicates parts which should be initially tightened, and then fully tightened after placing the vehicle horizontally and loading the full weight of the engine on the vehicle body.

REMOVAL SERVICE POINTS

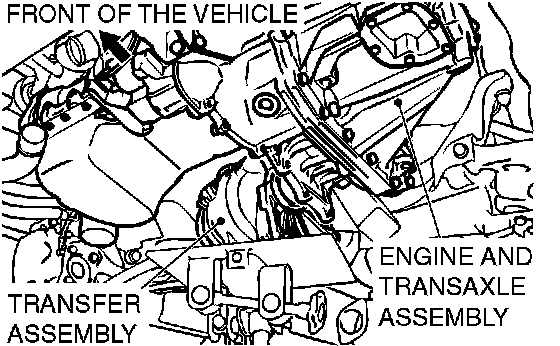

<> TRANSFER ASSEMBLY REMOVAL

With the engine mount and transaxle mount installed, roll the engine and transaxle assembly towards the front of the vehicle, and remove the transfer assembly from between the engine block and crossmember.
