M/T - Clutch Release Bearing Installation
No: TSB-05-22-003DATE: October 19, 2005
SUBJECT: CLUTCH RELEASE BEARING
INSTALLATION MODEL: See below
PURPOSE
The manual transmission on affected vehicles has a pull-type clutch. When removing or installing the transmission, use care to prevent dislodging the clutch cover (pressure plate) wire ring due to interference with the input shaft and/or clutch housing. If the wire ring is dislodged, it could come off completely during driving, causing the clutch to become inoperative.
AFFECTED VEHICLES
2003-on Lancer Evolution models
2001-2005 Eclipse and Eclipse Spyder models equipped with V6 engine
PROCEDURE

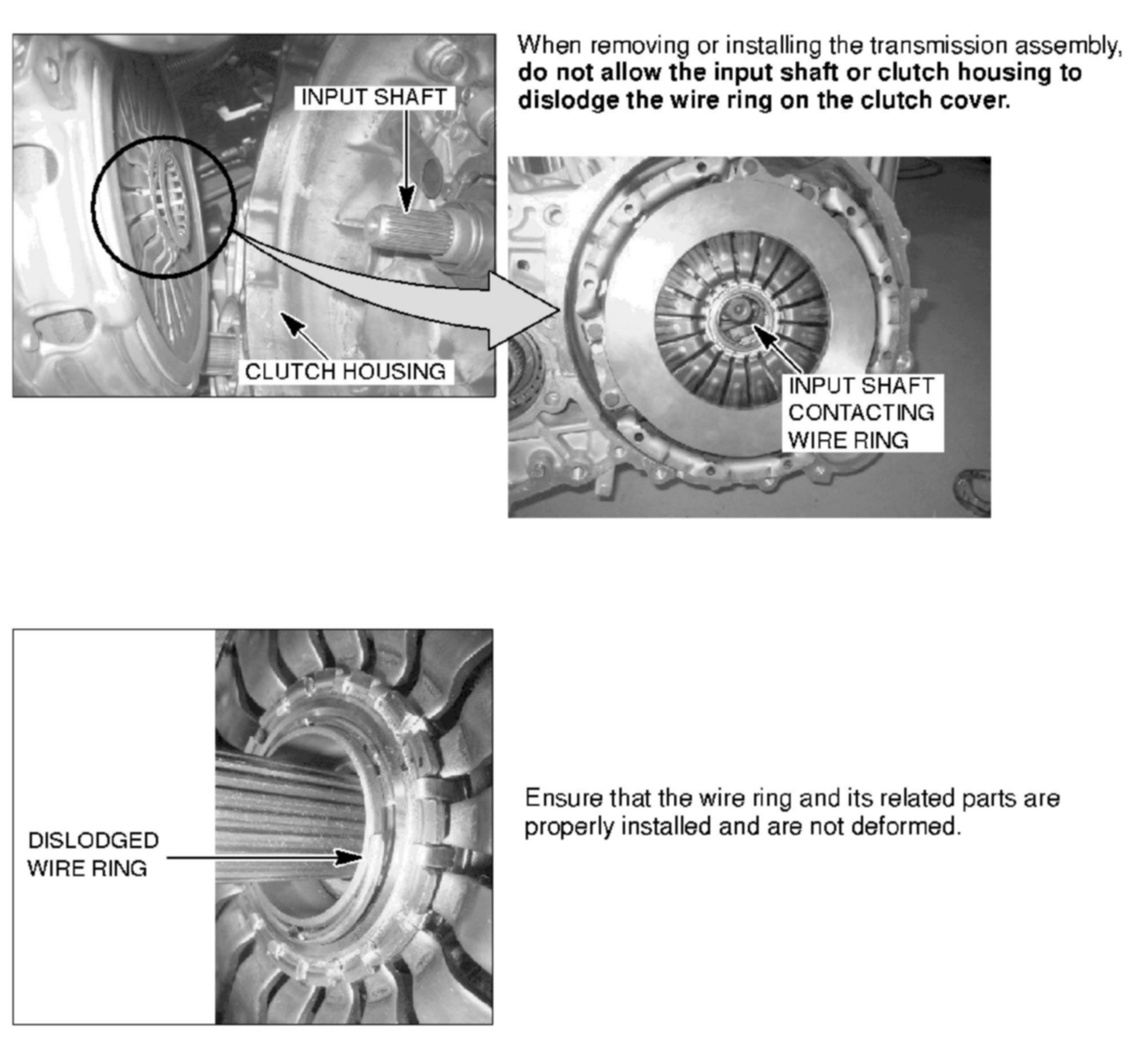

0Illustration of Clutch and Input Shaft.
The information contained in this bulletin is subject to change. For latest version of this document go to the Mitsubishi Dealer Link, MEDIC, or the Mitsubishi Service Information website.
