Drive Axle - Disassembly Caution

No: TSB-07-26-003
DATE: April, 2007
MODEL: 2006 Lancer

SUBJECT:
BJ ASSEMBLY FOR FRONT AXLE

TSB Revision: TSB-07-26-002

PURPOSE

The cautionary instruction for disassembly of the BJ assembly for the front axle is corrected in the applicable Workshop Manual. This TSB contains the corrected description.

AFFECTED VEHICLES
2006 Lancer

AFFECTED SERVICE MANUAL
2006 Lancer Workshop Manual

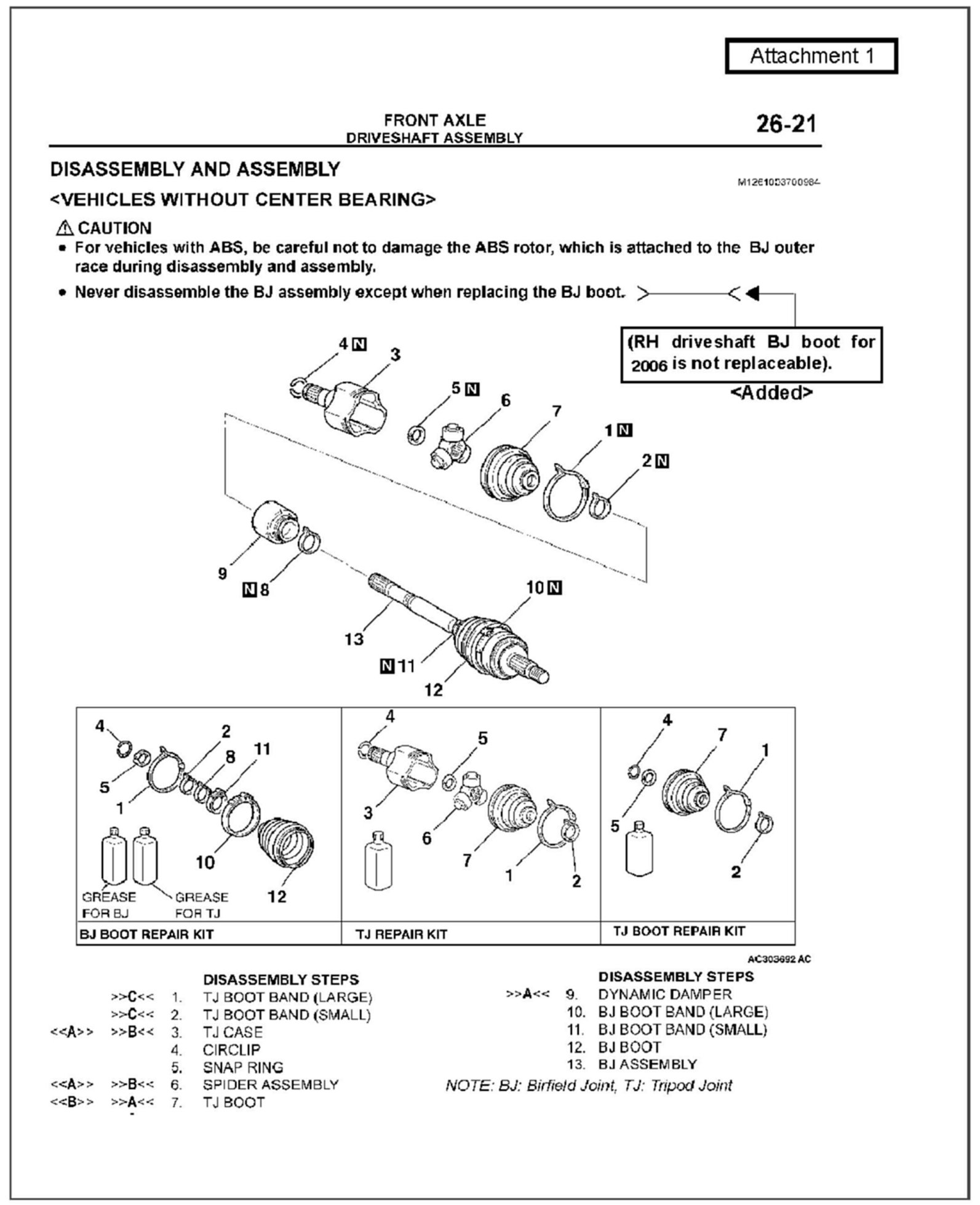

Page 26-21 See attachment 1
