Inspection Procedure 1: Noise, Vibration
INSPECTION PROCEDURE 1: Noise, VibrationDIAGNOSIS
STEP 1. Check the idle speed.
Q: Does the idle speed meet the standard values?
YES: Go to Step 2.
NO: Refer to Specifications-Curb Idle Speed Check.
STEP 2. Check whether the transaxle and engine mount is loose or damaged.
Q: Are the transaxle and engine mount loose or damaged?
YES: Tighten or replace the part. Then go to Step 7.
NO: Go to Step 3.

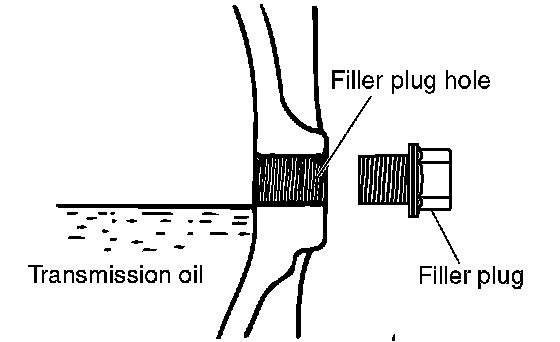

STEP 3. Check that the oil level is up to the lower edge of the filler plug hole.
Q: Is the oil level up to the lower edge of the filler plug hole?
YES: Go to Step 4.
NO: Refill gear oil API classification GL- 4 SAE 75W-85W or75W-90
STEP 4. Check for the specified oil.
Q: Is the specified oil gear oil API classification GL-4 SAE 75W85W or 75W-90
YES: Go to Step 5.
NO: If in doubt, replace the oil. Then go to Step 7.
STEP 5. Remove the transaxle. Check the end play of the input and output shafts.
Q: Does the end play of the input and output shafts meet the standard value?
YES: Go to Step 6.
NO: Adjust the end play of the input and output shafts. Then go to Step 7.
STEP 6. Disassemble the transaxle. Check the gears for wear and damage.
Q: Are the gears worn or damaged?
YES: Replace the gears. Go to Step 7.
NO: Go to Step 7.
STEP 7. Retest the systems.
Q: Is the noise or vibration still there?
YES: Return to Step 1.
NO: The procedure is complete.
