Removal and Replacement

The content of this article reflects the changes identified in TSB 10-22-001.

TRANSAXLE CONTROL

BUSHING DISASSEMBLY AND REASSEMBLY






REASSEMBLY SERVICE POINT

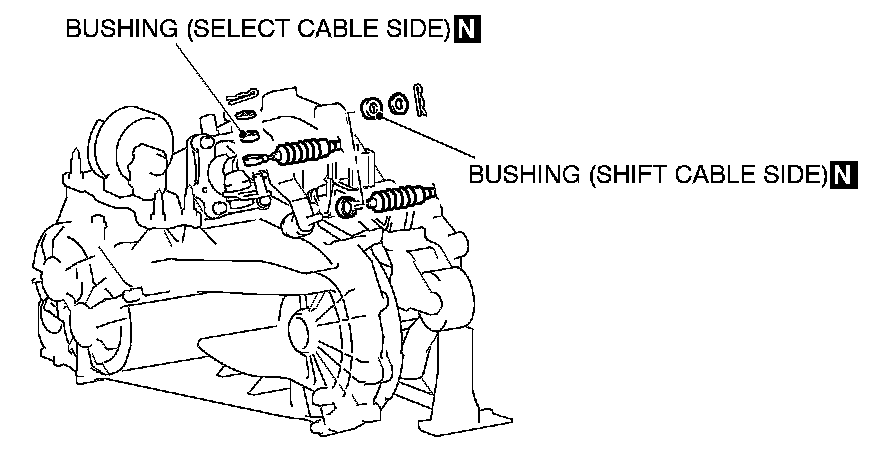

Bushing (Shift Cable Side and Select Cable Side) Installation

CAUTION:
^ Be careful not to damage the bushing and the bushing support at cable end when the bushings (shift cable and select cable sides) are installed.

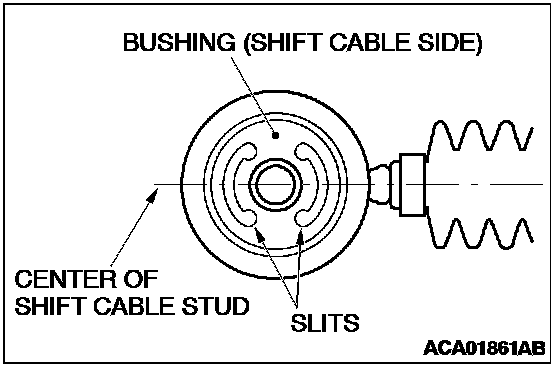

^ Make sure that slits of the shift cable-side bushing point are as shown.
