W6MAA

TRANSAXLE

INSPECTION

BACKUP LIGHT SWITCH

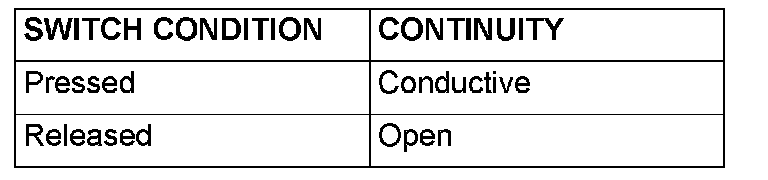

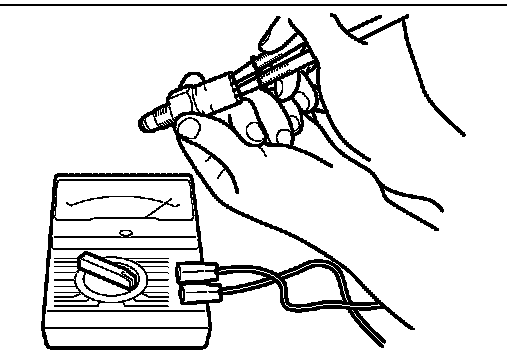

1. Check the backup light switch for proper continuity between the terminals.





2. Replace the backup light switch if the continuity is not as indicated above.

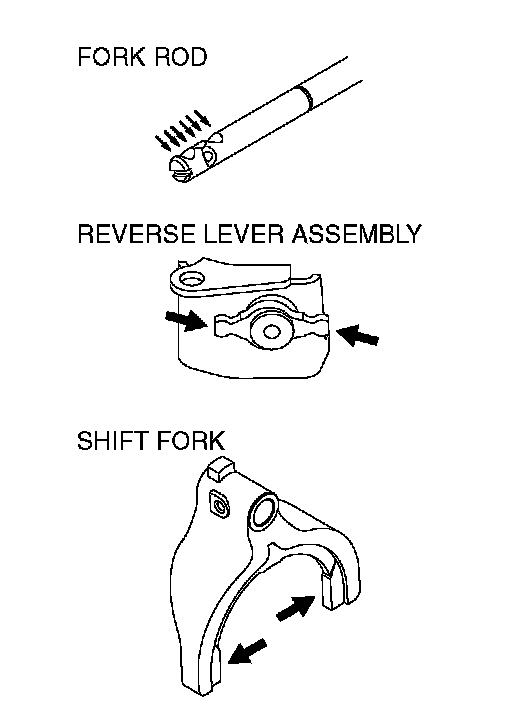

FORK ROD / REVERSE LEVER ASSEMBLY SHIFT FORK





1. Inspect contacting and rubbing surfaces for excessive wear, damage, bend, or other defects. Replace if necessary. (Parts with slight contact marks need not be replaced.)

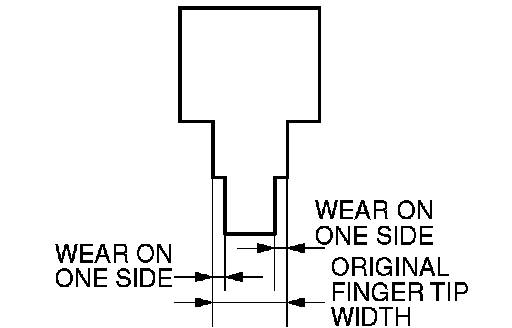

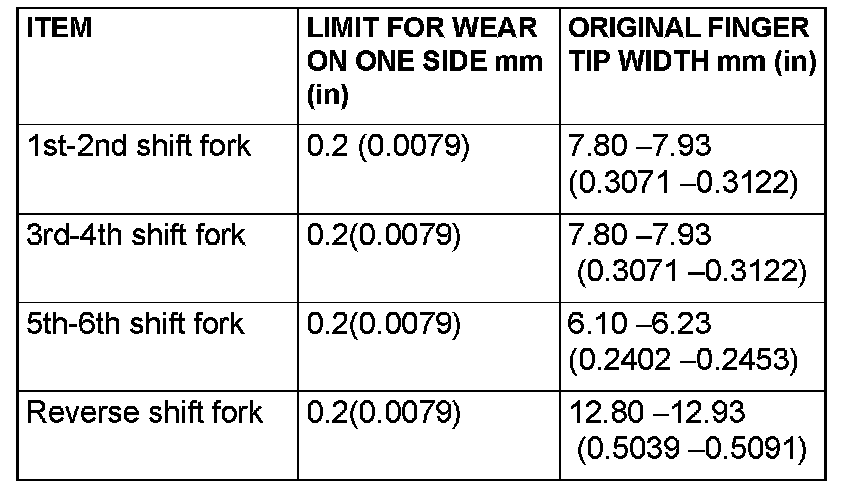

2. Check if the width of each shift fork finger tip (which rubs against the coupling sleeve) is greater than the limit.
