W6MAA

TRANSMISSION CASE

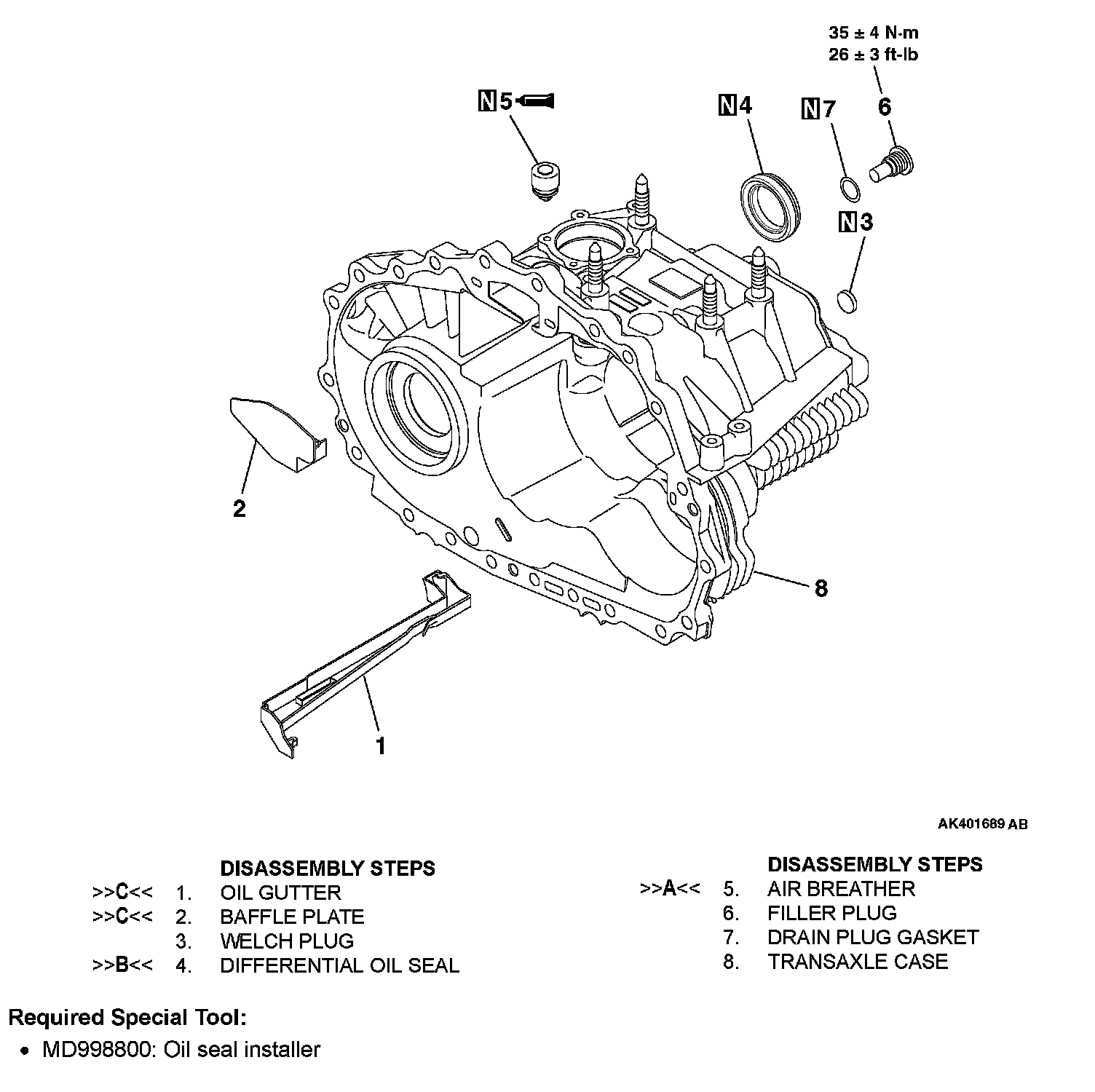

DISASSEMBLY AND ASSEMBLY
ASSEMBLY SERVICE POINTS
>>A<< AIR BREATHER INSTALLATION
1. Apply adhesive (3M AAD Part No.8001 or equivalent) to the entire air breather fitting surface of the transaxle case.
2. Install the air breather on the transaxle case.

>>B<< DIFFERENTIAL OIL SEAL INSTALLATION





CAUTION: The oil seal is not reusable.

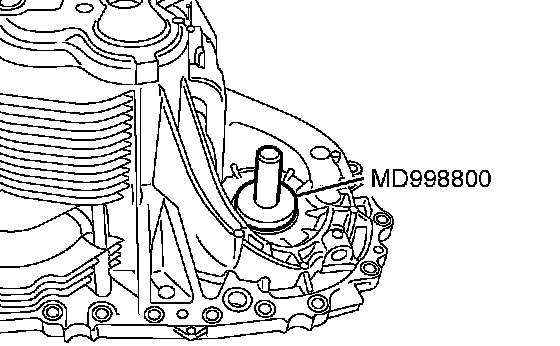

Using special tool MD998800, install the differential oil seal into the transaxle case.

>>C<< BAFFLE PLATE / OIL GUTTER INSTALLATION

CAUTION: Apply Vaseline to the claws of the baffle plate and oil gutter to prevent both parts from failing off.

Install the baffle plate and oil gutter on the transaxle case.
