W5M51

TRANSMISSION CASE

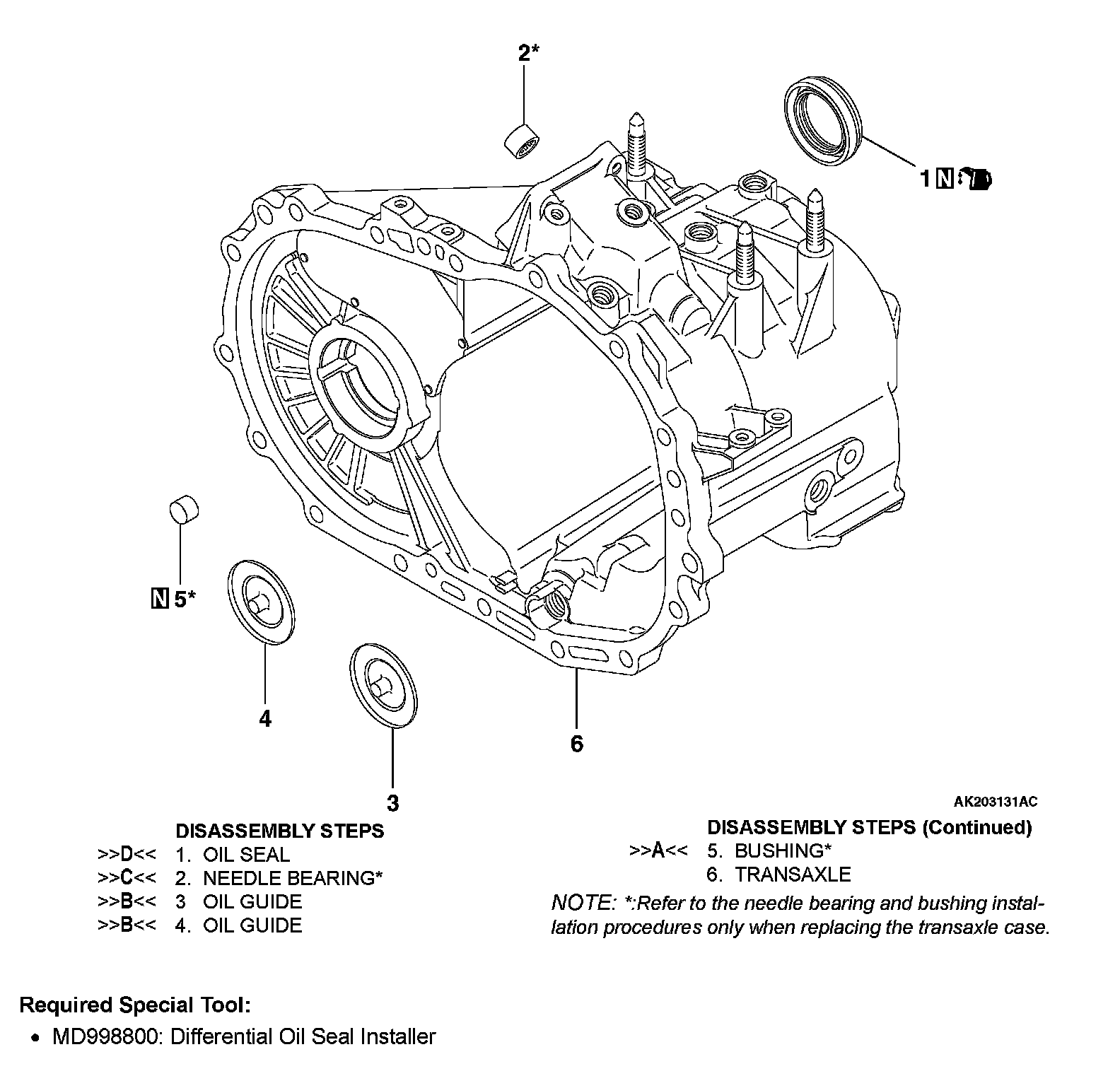

Disassembly Steps 1-6:

DISASSEMBLY AND ASSEMBLY
ASSEMBLY SERVICE POINTS

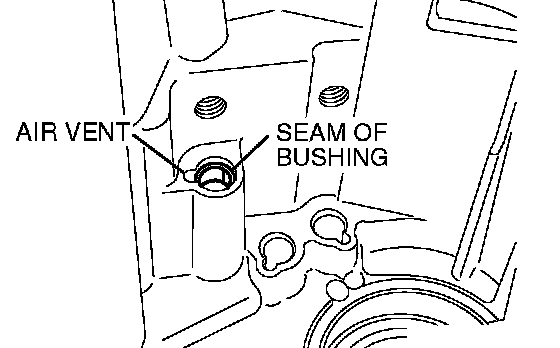

>>A<< BUSHING INSTALLATION





1. Press fit the bushing so the seam is away from the air vent.





2. Be sure the bushing is fully seated as shown. It must be 3 mm (0.12 inch) below the housing surface.

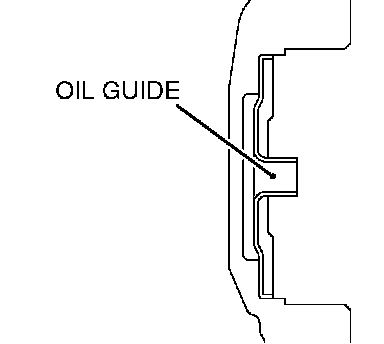

>>B<< OIL GUIDE INSTALLATION





1. Evenly press the oil guide so it is fully seated and at an angle.

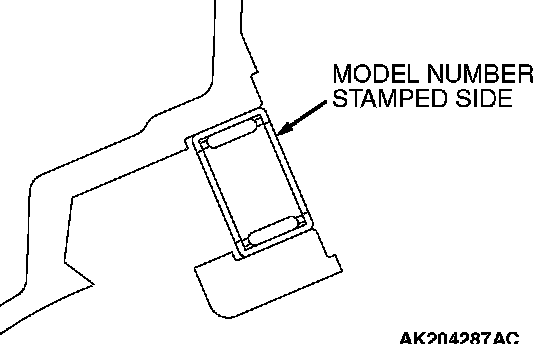

>>C<< NEEDLE BEARING INSTALLATION





1. Check the installation direction of the needle bearing.
2. Press fit the needle bearing until it is flush with the case.

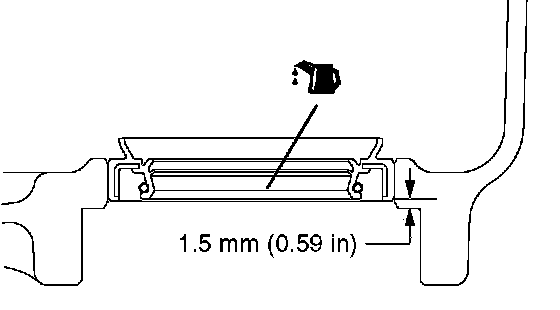

>>D<< OIL SEAL INSTALLATION





1. Apply gear oil (Hypoid gear oil SAE 75W-90 or 75W-85W conforming to API classification GL-4).

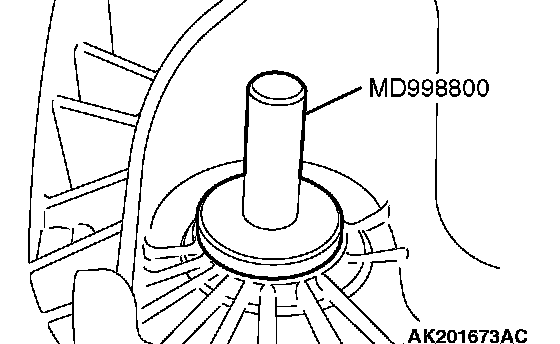

2. Using special tool MID998800, press fit the oil seal into the transaxle case.
