W5M51

TRANSFER

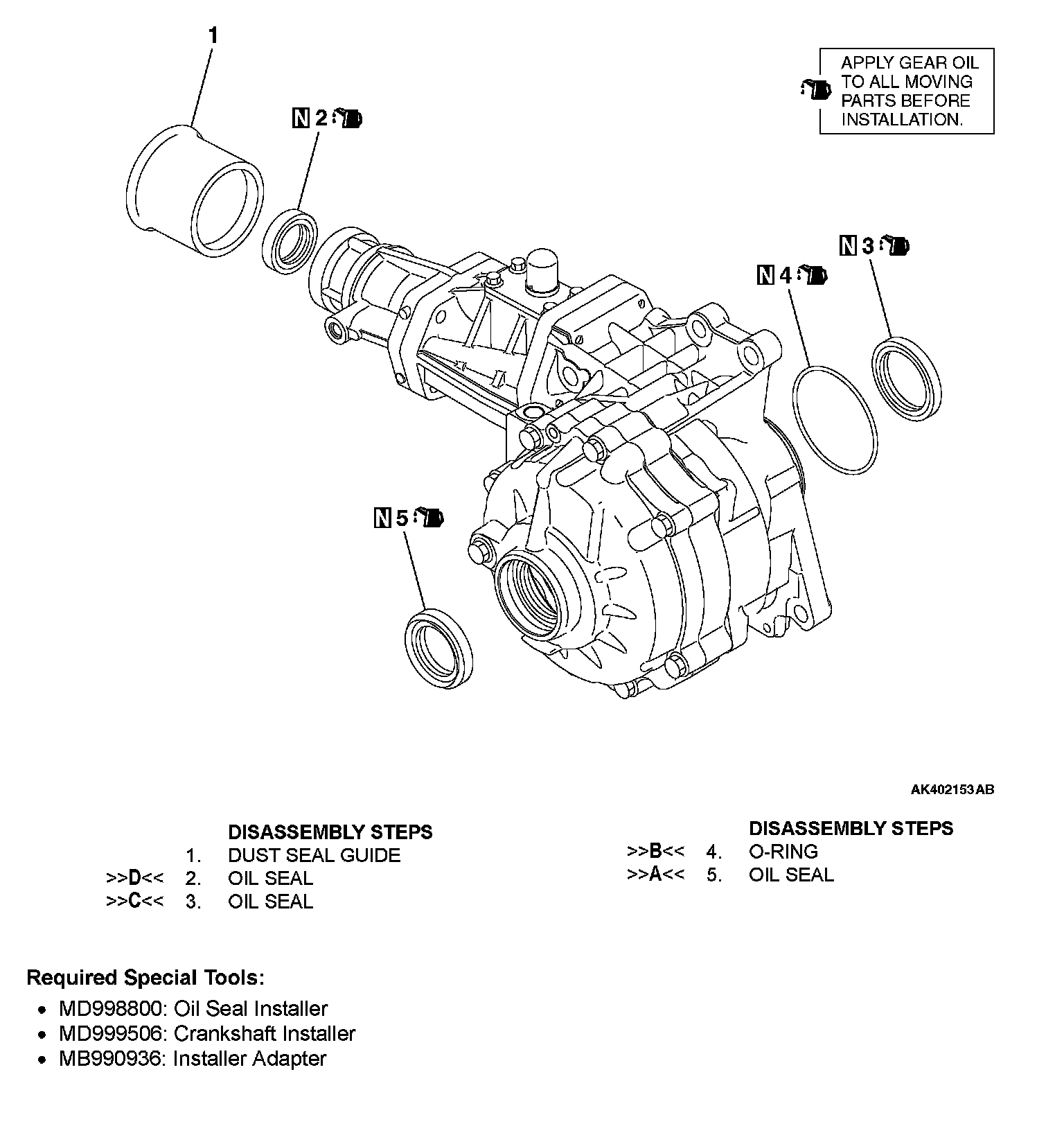

Disassembly Steps 1-5:

DISASSEMBLY AND ASSEMBLY
ASSEMBLY SERVICE POINTS
>>A<< OIL SEAL INSTALLATION





1. Apply gear oil (Hypoid gear oil API classification GL-5 SAE 90).

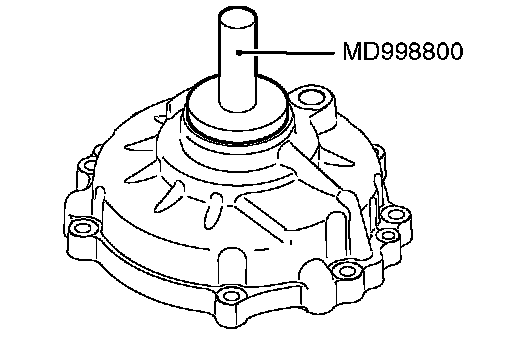

2. Using special tool MD998800, press fit the oil seal into the transfer cover.

>>B<< O-RING INSTALLATION
Install a O-ring to the transfer, and apply gear oil (Hypoid gear oil API classification GL-5 SAE 90) to the O-ring.

>>C<< OIL SEAL INSTALLATION





1. Apply gear oil (Hypoid gear oil API classification GL-5 SAE 90).

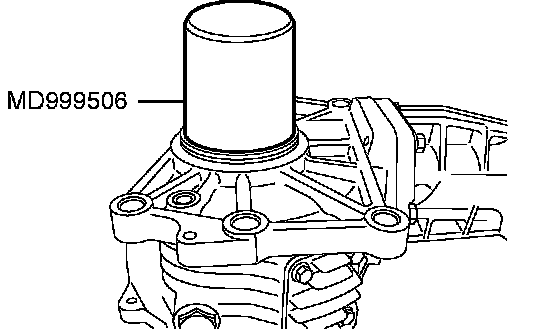

2. Using special tool MD999506, press fit the oil seal into the transfer.

>>D<< OIL SEAL INSTALLATION





1. Apply gear oil (Hypoid gear oil API classification GL-5 SAE 90).

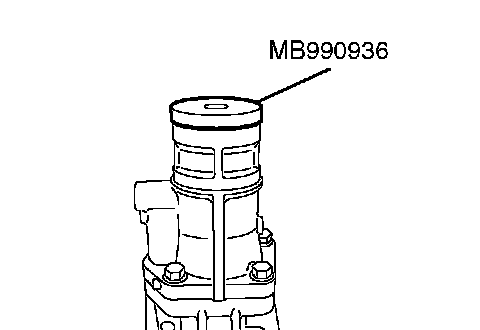

2. Using special tool MB990936, press fit the oil seal into the transfer.
