Select Lever

SELECT LEVER

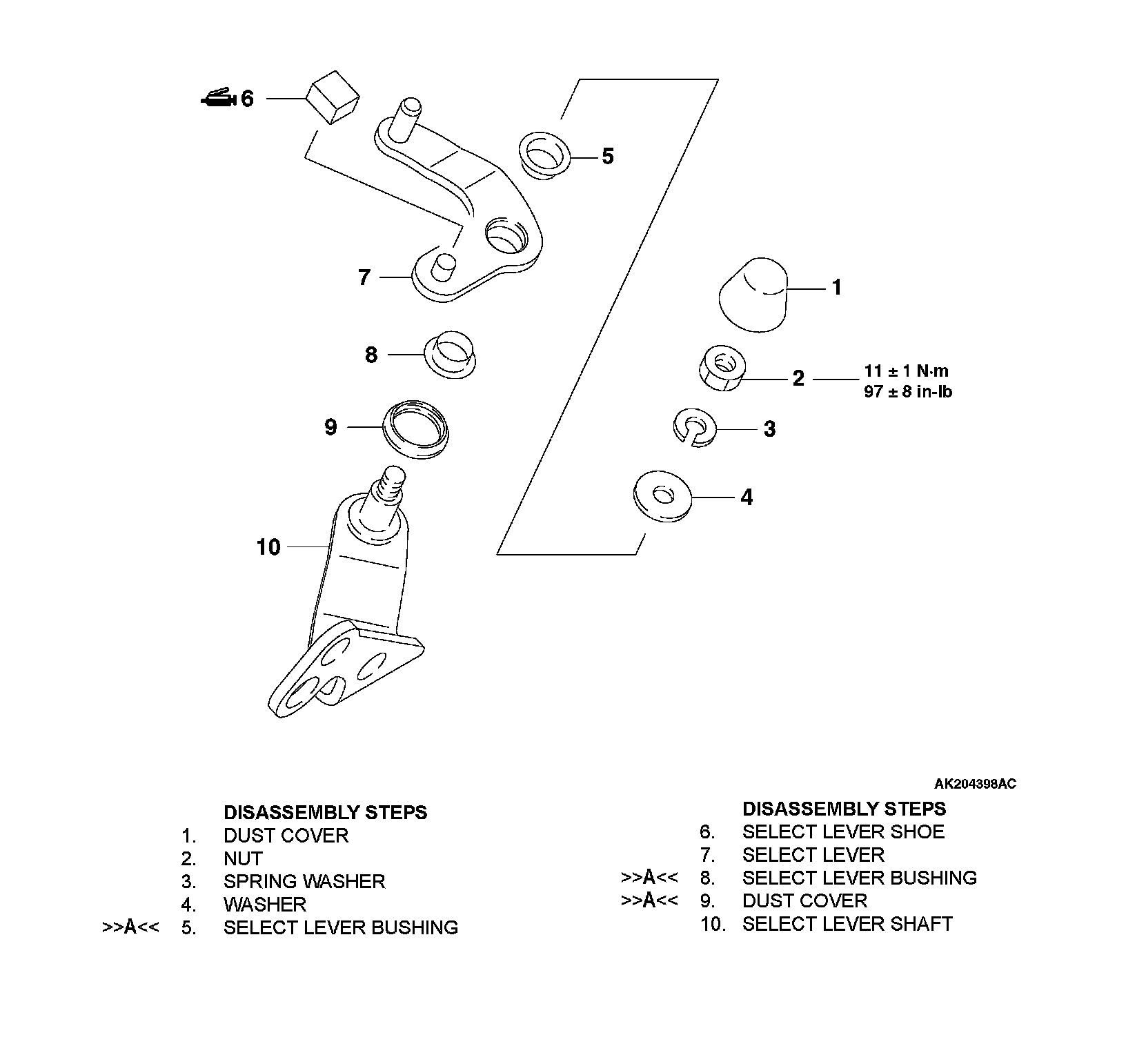

Disassembly Steps 1-10:





DISASSEMBLY AND ASSEMBLY
ASSEMBLY SERVICE POINT

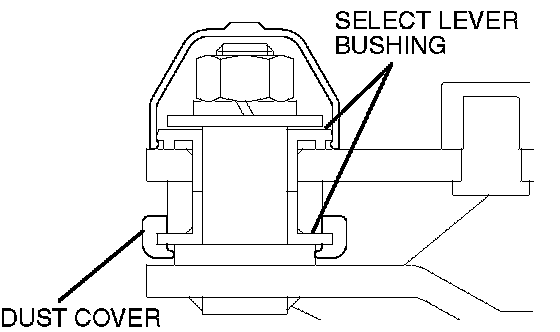

>>A<< DUST COVER AND SELECT LEVER BUSHING INSTALLATION





Make sure the dust cover and select lever bushing installation direction is correct, and distinguished parts are correctly assembled. Refer to the figure.
