REVERSE IDLER GEARDisassembly Steps 1-14:
DISASSEMBLY AND ASSEMBLY
DISASSEMBLY SERVICE POINTS

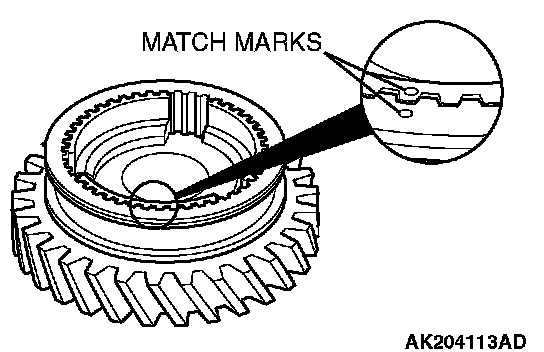

<> REVERSE IDLER GEAR SLEEVE REMOVAL
CAUTION: Meshing problems may occur if the original spline engagement phase is changed during assembly. Make match marks on the reverse idler gear sleeve and reverse idler gear hub.
ASSEMBLY SERVICE POINTS

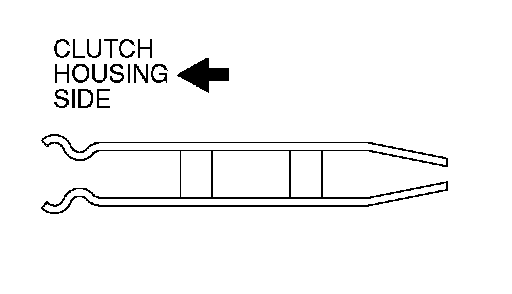

>>A<< INSERT SPRING INSTALLATION
Install each insert spring on the reverse idler gear sleeve, making sure to insert it in the right direction.

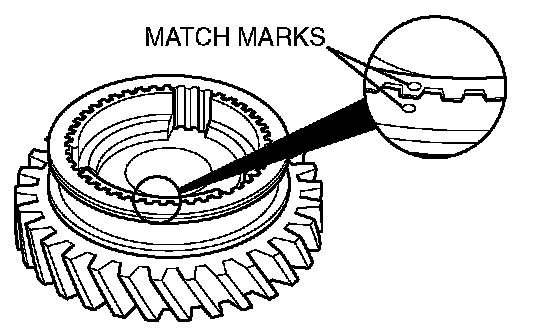

>>B<< REVERSE IDLER GEAR SLEEVE INSTALLATION
CAUTION: Meshing problems may occur if the spline engagement phase is changed during assembly.
Align the match marks when engaging the splines.
