W6MAA

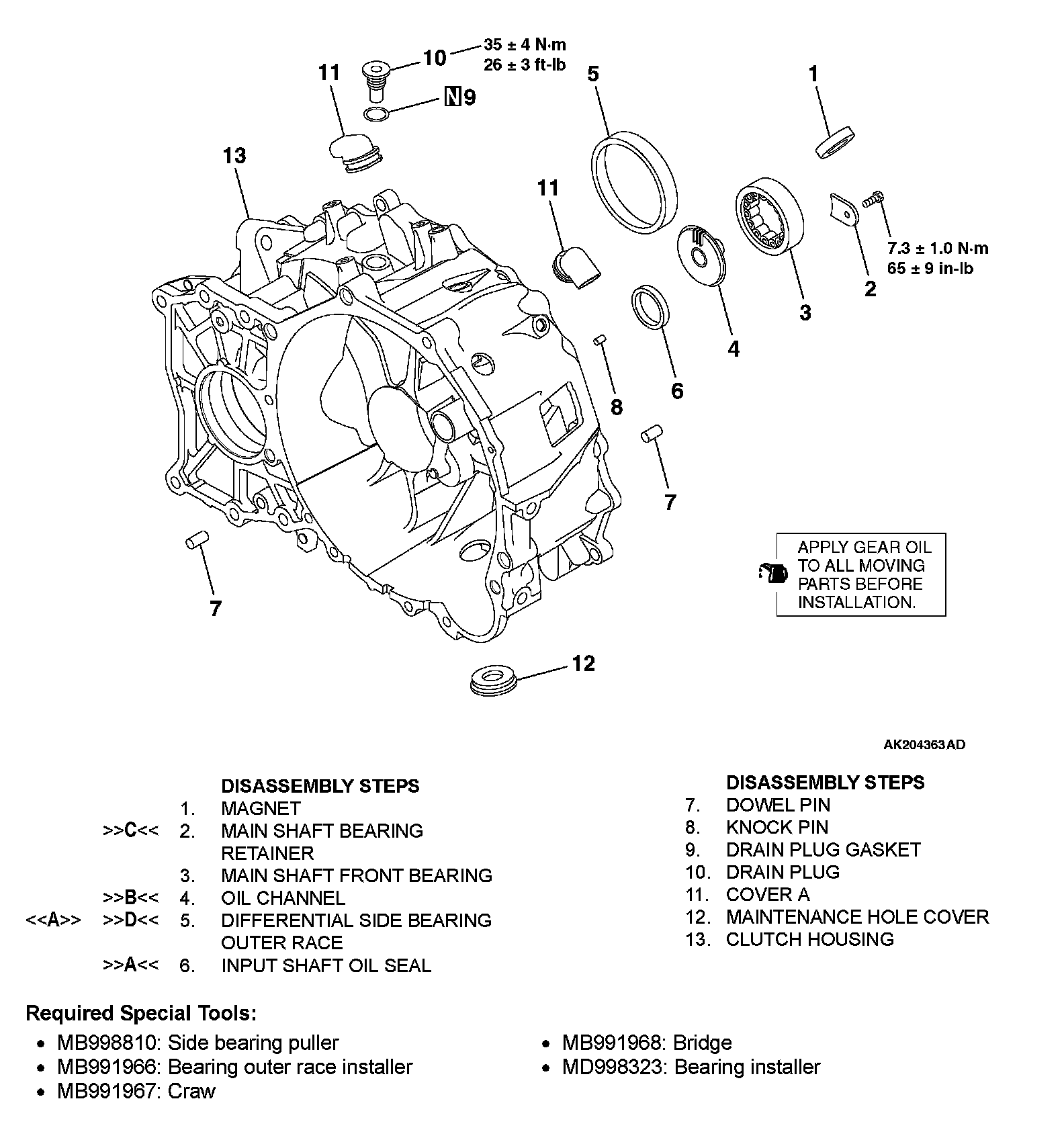

CLUTCH HOUSING
DISASSEMBLY AND ASSEMBLY
DISASSEMBLY SERVICE POINTS
<> DIFFERENTIAL SIDE BEARING OUTER RACE REMOVAL

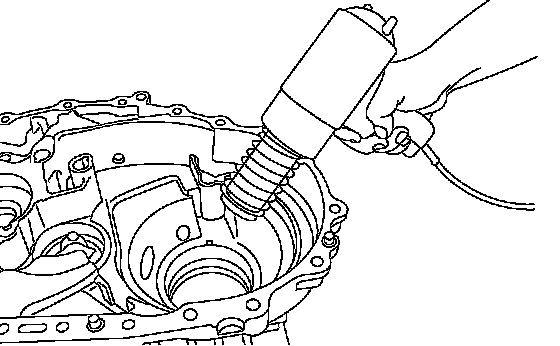

1. Heat the clutch housing to about 100°C (212°F).
NOTE: maximum temperature: 120°C (248°F).

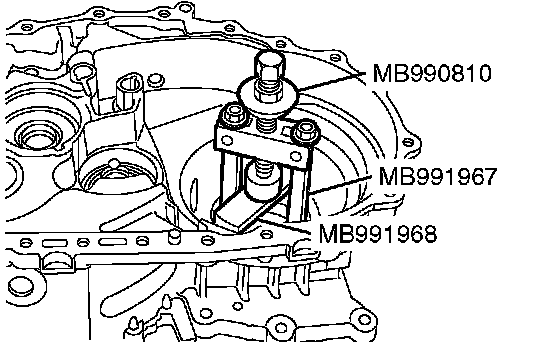

2. Using special tools MB990810, MB991967 and MB991968, remove the differential side bearing outer race.
ASSEMBLY SERVICE POINTS
>>A<< INPUT SHAFT OIL SEAL INSTALLATION
CAUTION: The oil seal is not reusable.

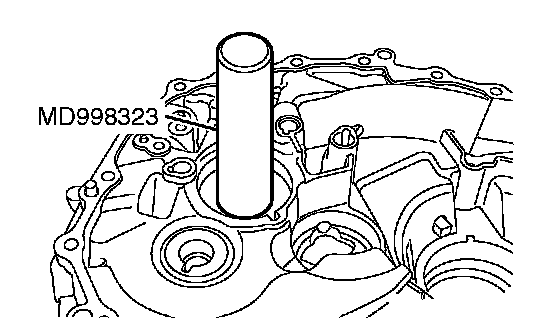

Using special tool MD998323, hammer the input shaft oil seal into the clutch housing.

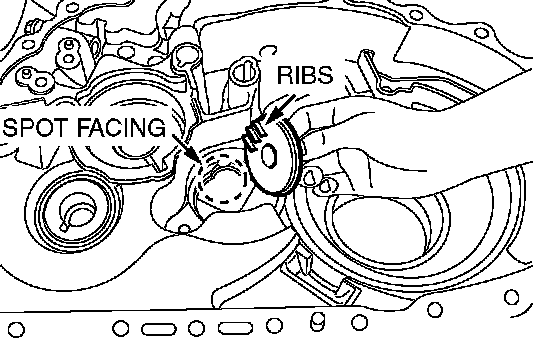

>>B<< OIL CHANNEL INSTALLATION
Install the oil channel so that the ribs located on the channel's main shaft side are fitted into the spot faced portion on the clutch housing.

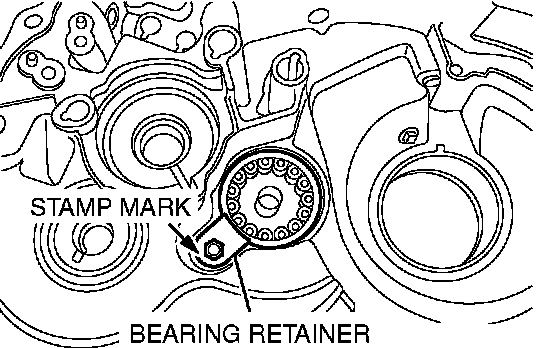

>>C<< BEARING RETAINER INSTALLATION
Install the bearing retainer so that the stamp mark is visible, and tighten the mounting bolt to the specified torque.
Tightening torque: 7.3 ±1.0 Nm (65 ±9 inch lbs.)
>>D<< DIFFERENTIAL SIDE BEARING OUTER RACE INSTALLATION
1. Heat the clutch housing to about 100°C (212°F).
NOTE: maximum temperature: 120°C (248°F).

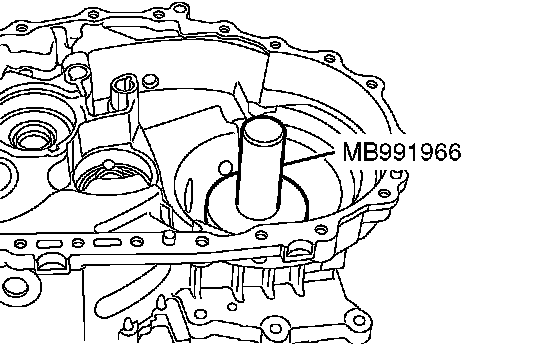

2. Using special tool MB991966, install the differential side bearing outer race in the clutch housing.
