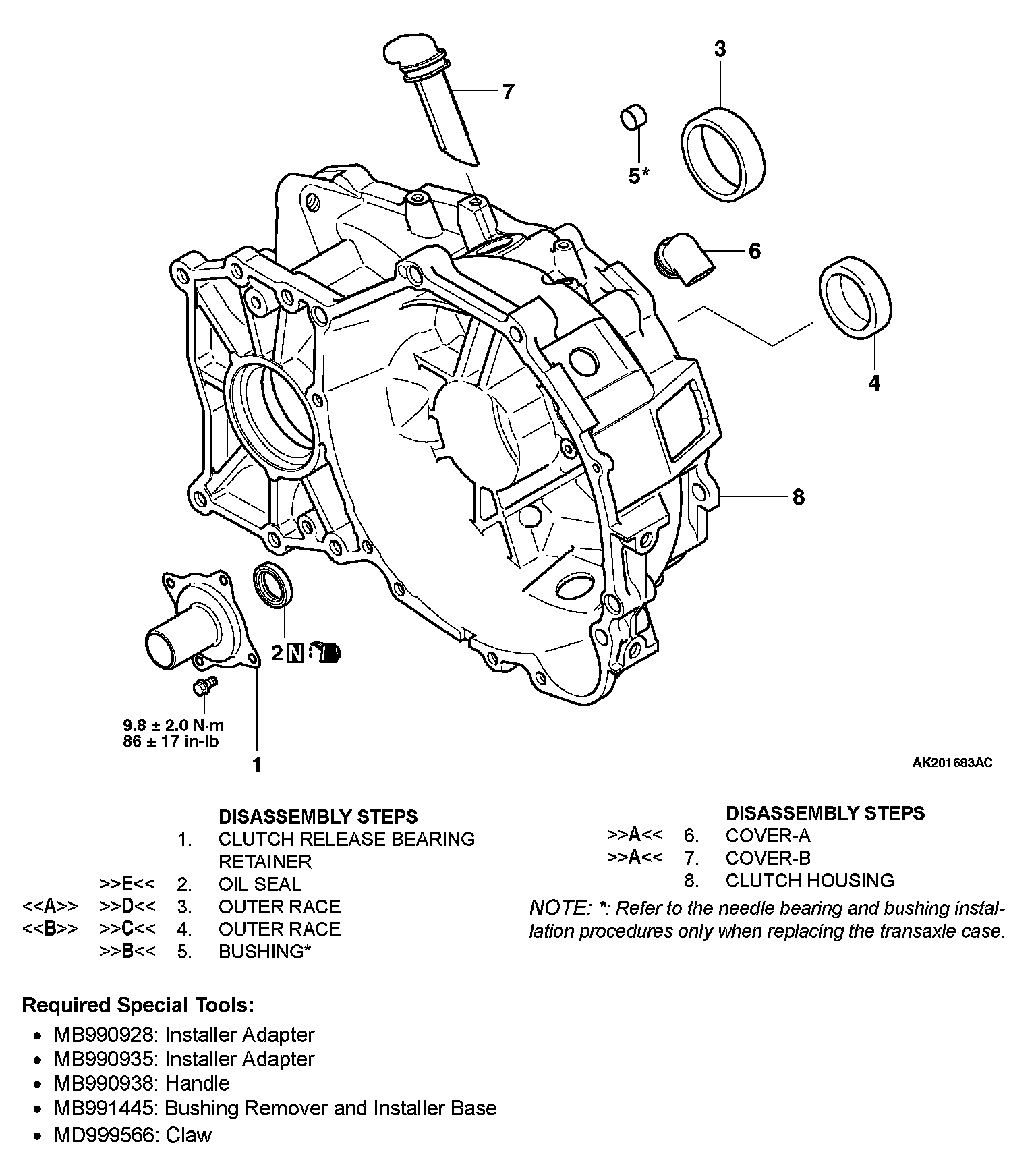

CLUTCH HOUSINGDisassembly Steps 1-8:
DISASSEMBLY AND ASSEMBLY
DISASSEMBLY SERVICE POINT
<> OUTER RACE REMOVAL

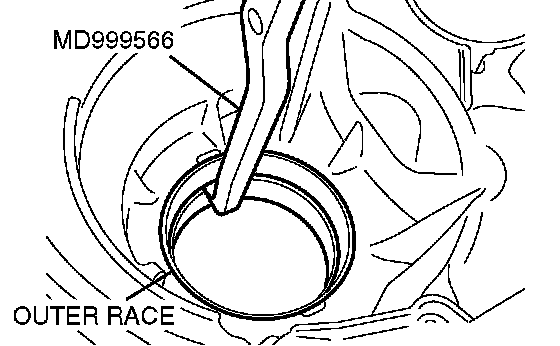

Using special tool MD999566, remove the outer race from the clutch housing.
<> OUTER RACE REMOVAL
Using special tool MD999566, remove the outer race from the clutch housing.
ASSEMBLY SERVICE POINTS

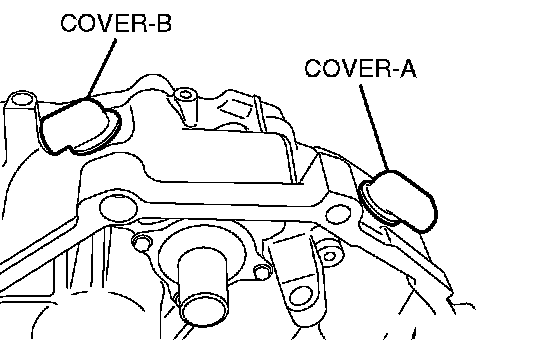

>>A<< COVER-B/COVER-A INSTALLATION
Install the covers directed as shown in the illustration.
>>B<< BUSHING INSTALLATION

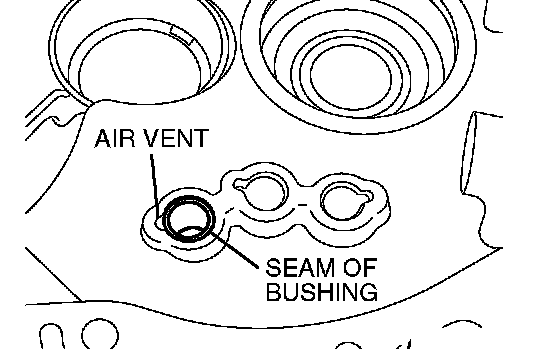

1. Press fit the bushing so the seam is away from the air vent.

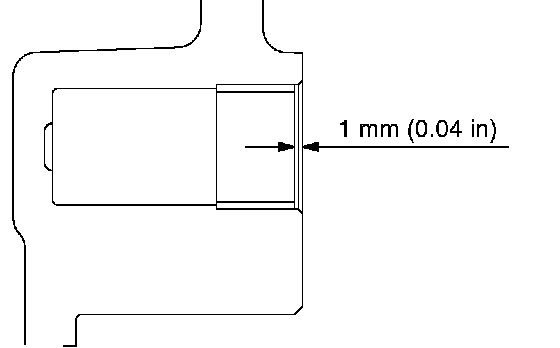

2. Be sure the bushing is fully seated as shown. It must be 1 mm (0.04 inch) below the housing surface.
>>C<< OUTER RACE INSTALLATION

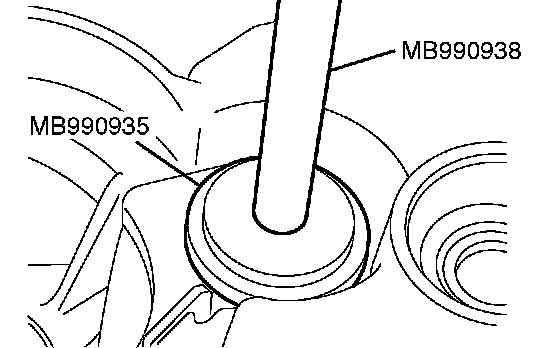

Using special tools MB990938 and MB990935, press fit the outer race into the clutch housing.
>>D<< OUTER RACE INSTALLATION
1. Check the installation direction of the outer race.

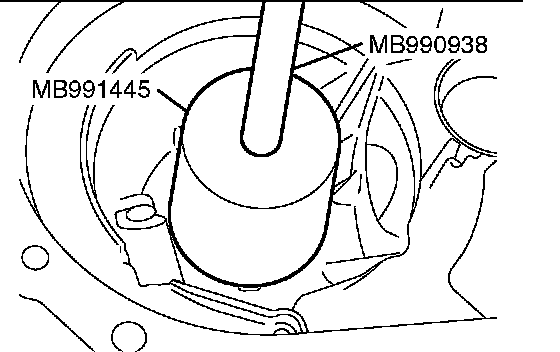

2. Using special tools MB990938 and MB991445, press fit the outer race into the clutch housing.

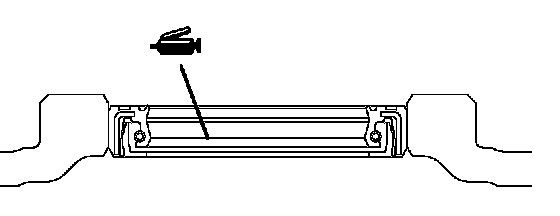

>>E<< OIL SEAL INSTALLATION

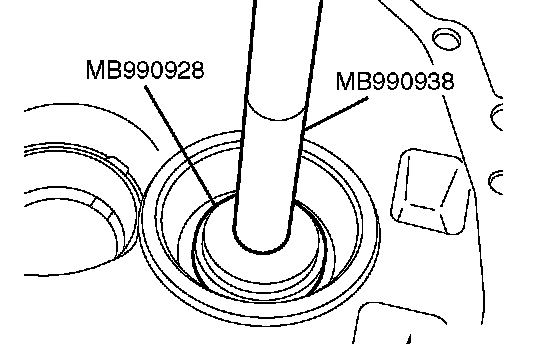

1. Pack grease (Mitsubishi genuine grease part No. 0101011 or equivalent) in the oil seal lip area.
2. Using special tools MB990938 and MB990928, press fit the oil seal into the clutch housing.
