Adjusting Snap Rings and Spacers

ADJUSTING SNAP RINGS AND SPACERS

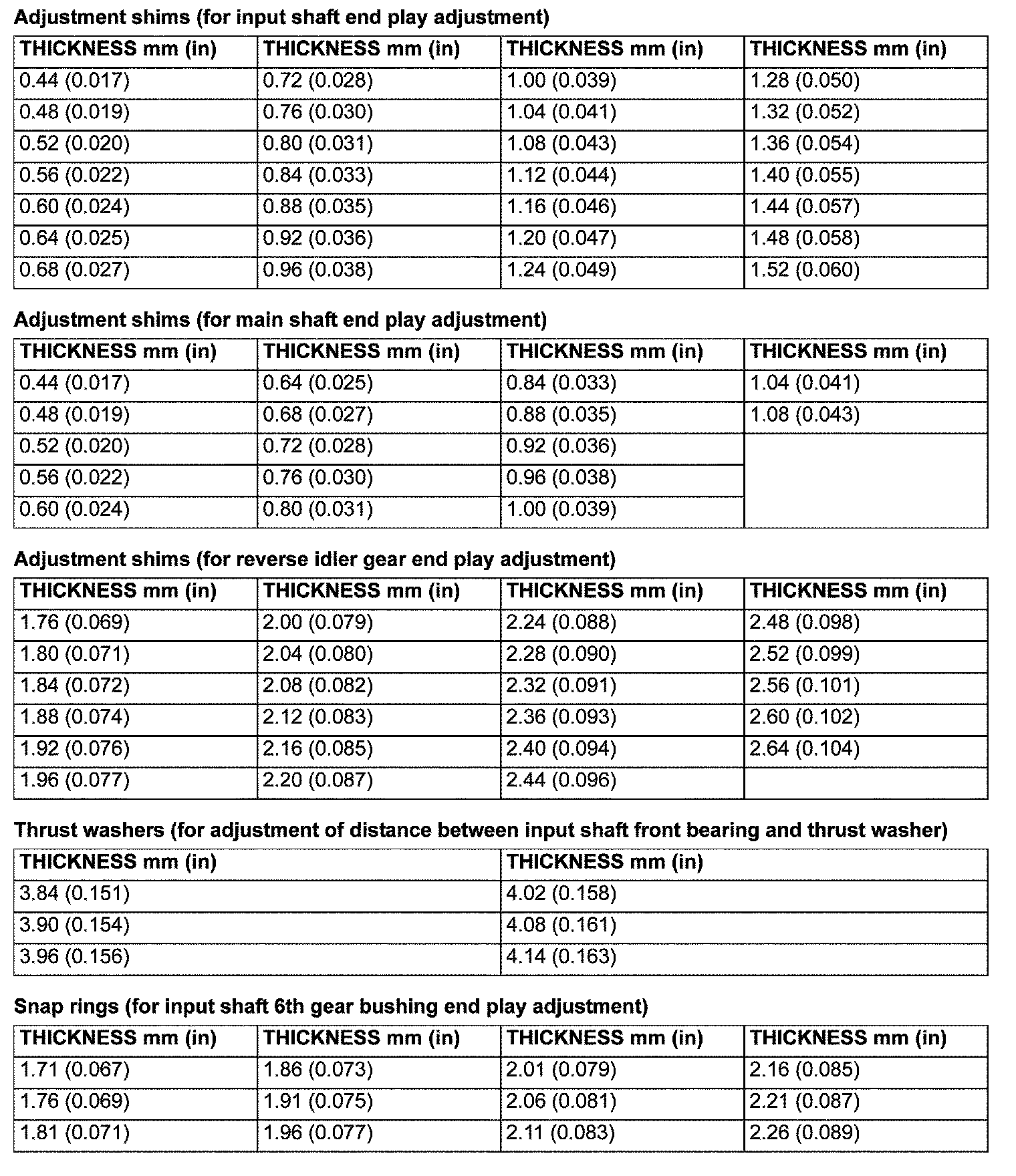

Adjusting Snap Springs And Spacers (Part 1):

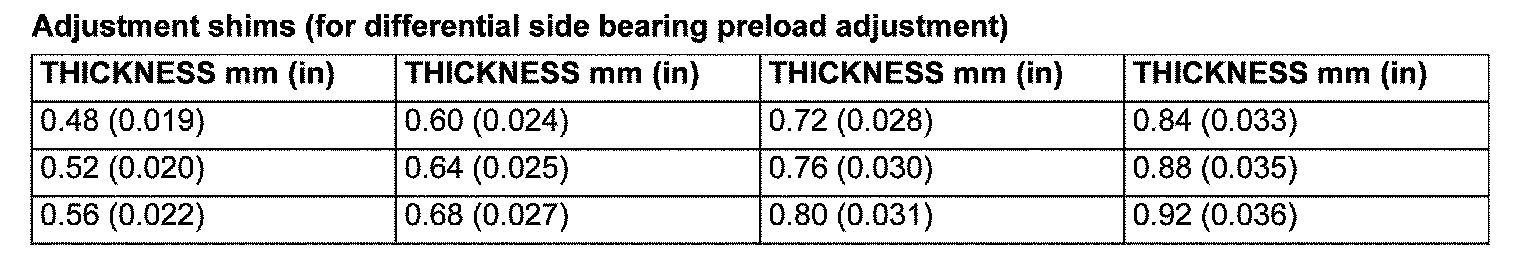

Adjusting Snap Springs And Spacers (Part 2):
