Snap Rings, Spacers and Thrust Plate For Adjustment

SNAP RINGS, SPACERS AND THRUST PLATE FOR ADJUSTMENT

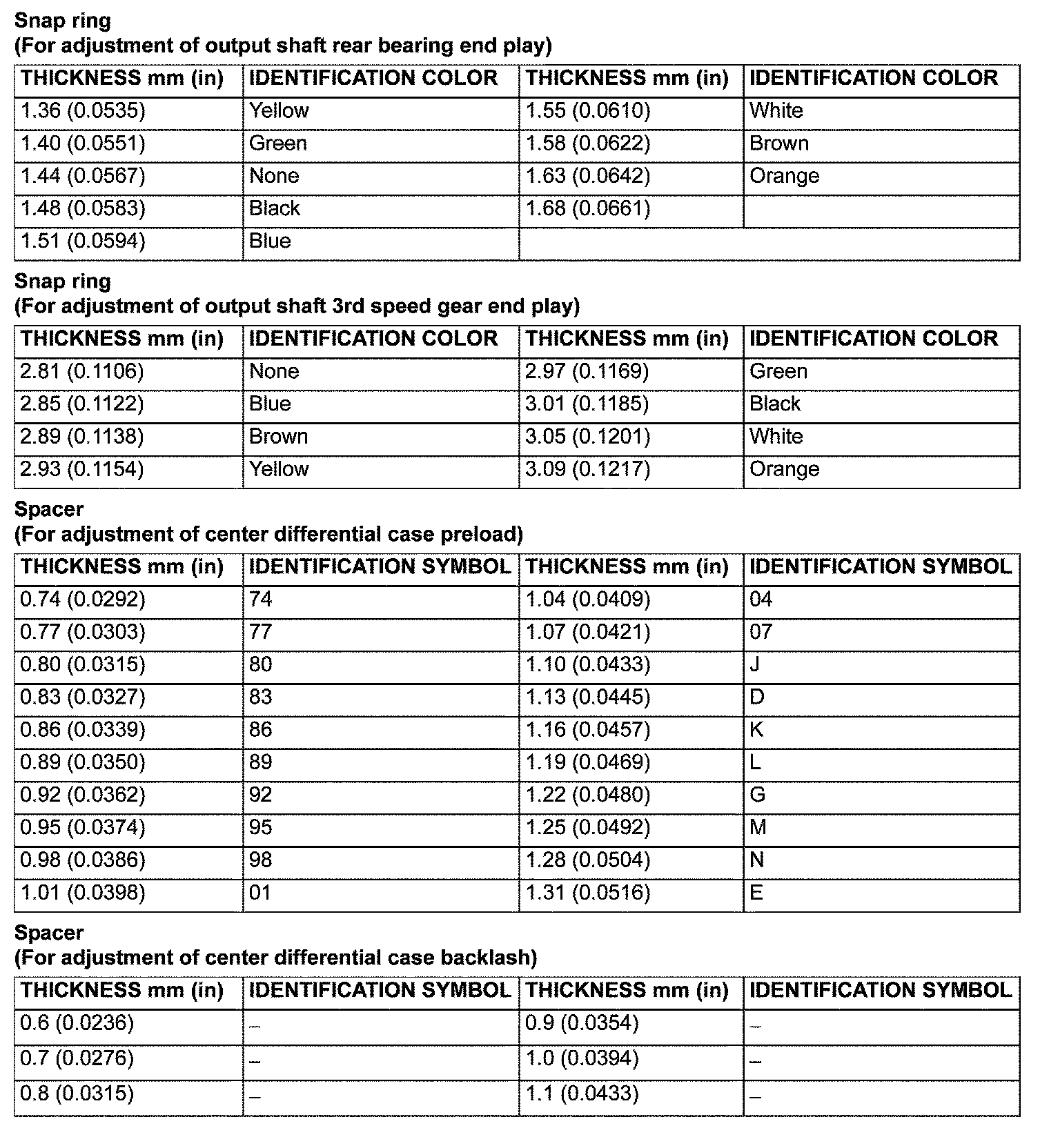

SNAP RINGS, SPACERS AND THRUST PLATE FOR ADJUSTMENT (PART 1):

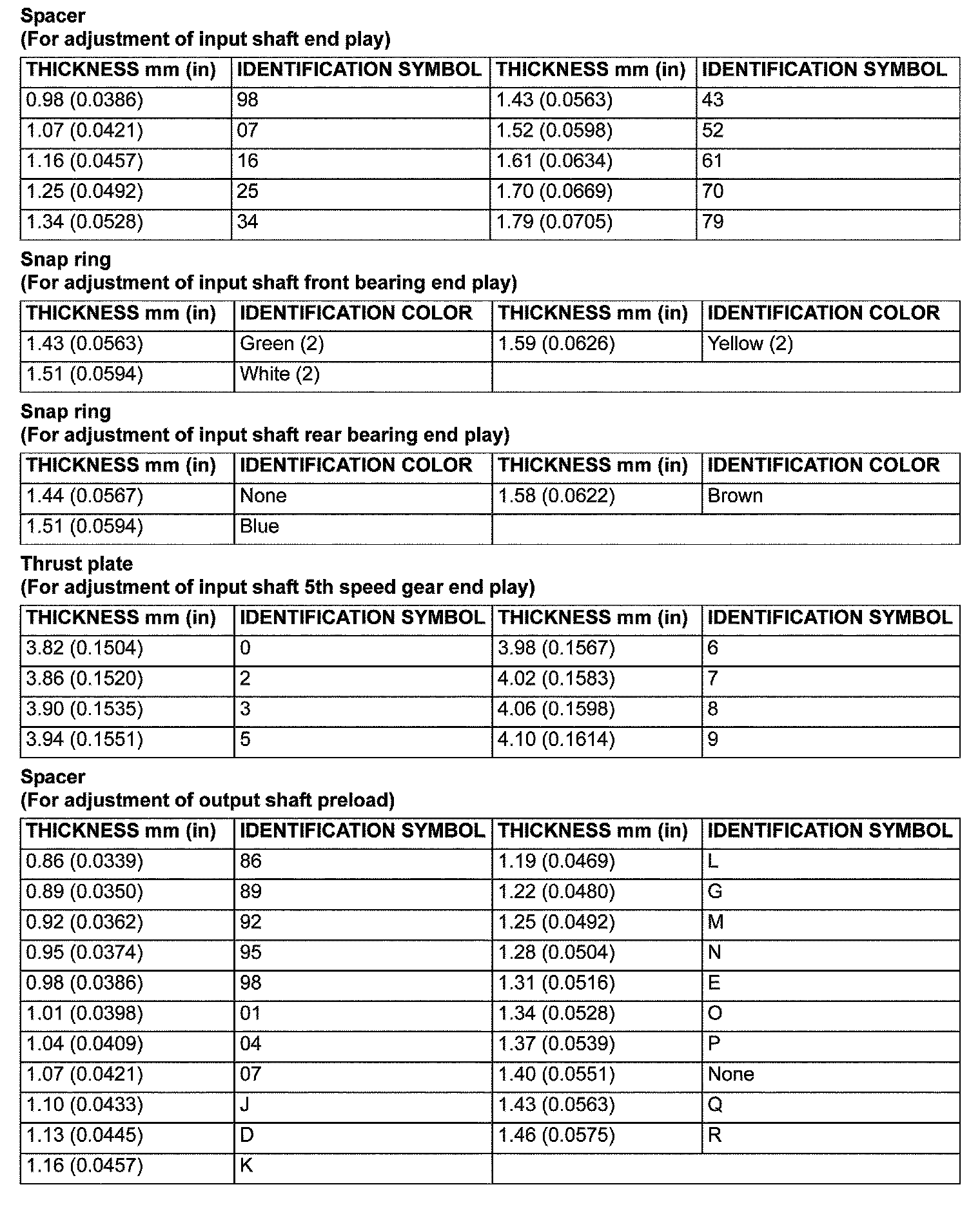

SNAP RINGS, SPACERS AND THRUST PLATE FOR ADJUSTMENT (PART 2):
