Removal and Replacement

PROPELLER SHAFT






REMOVAL AND INSTALLATION

REMOVAL SERVICE POINT
<> PROPELLER SHAFT ASSEMBLY REMOVAL

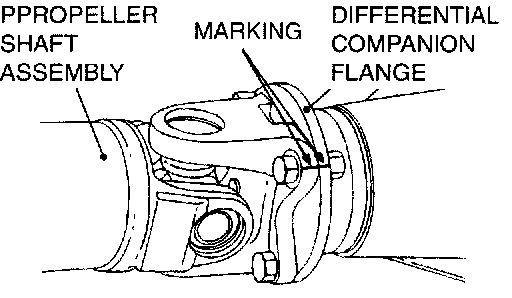

1. Make mating marks on the differential companion flange and the propeller shaft assembly.

CAUTION: Be careful not to bend the joint portion when removing the propeller shaft because this will damage to the joint boot.

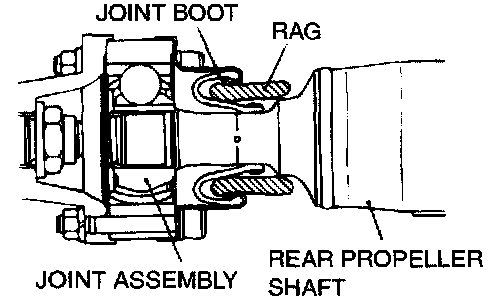

2. Insert a rag so as to avoid boot damage, and remove the propeller shaft assembly in a straight and level manner

INSTALLATION SERVICE POINT
>>A<< PROPELLER SHAFT ASSEMBLY INSTALLATION

CAUTION:

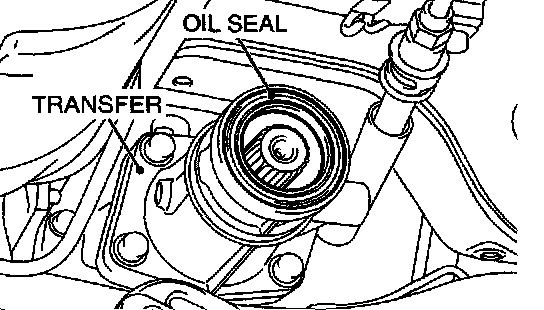

^ Do not damage the oil seal lips on the transfer case.
^ Remove oil and grease from the threads of the mounting bolts and nuts before tightening, or they will loosen.
^ Be careful not to bend the joint portion when removing the propeller shaft, because this will damage the joint boot.

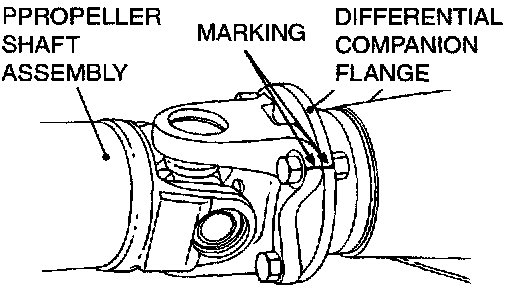

If reusing the propeller shaft, align the mating marks of differential companion flange and propeller shaft assembly to install.

INSPECTION
^ Check the sleeve yoke and flange yoke for wear, damage or cracks.
^ Check the propeller shaft for bends, twisting or damage.
^ Check the universal joint for smooth operation in all directions.
^ Check the center bearing for smooth movement.

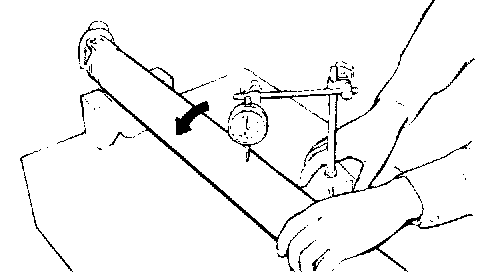

PROPELLER SHAFT RUNOUT





Limit: 0.5 mm (0.02 inch)
