W6MAA

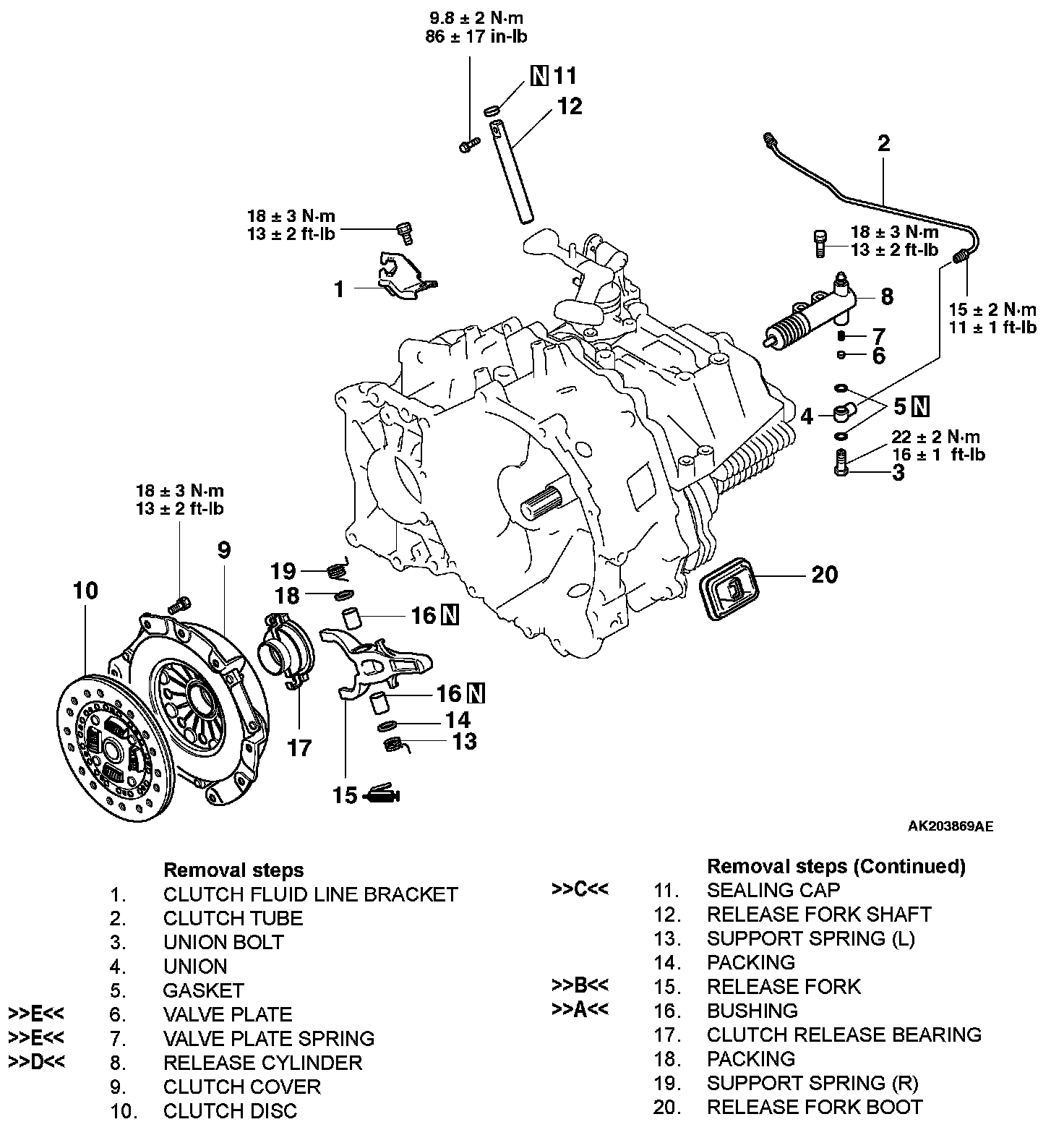

CLUTCH REMOVAL AND INSTALLATION
INSTALLATION SERVICE POINTS

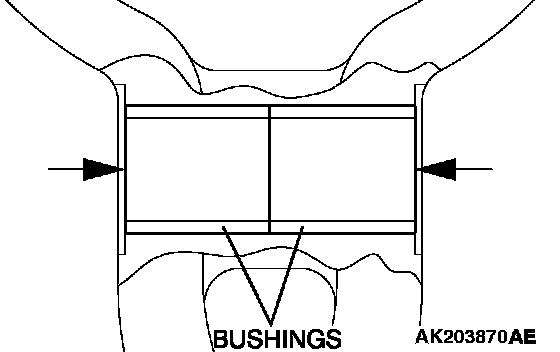

>>A<< BUSHING INSTALLATION





Press fit the bushing into the release fork as shown in the illustration.

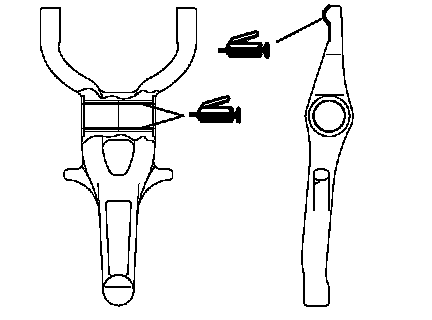

>>B<< RELEASE FORK INSTALLATION





Apply Mitsubishi genuine grease Part No. 0101011 or equivalent to the release fork at the areas indicated in the illustration.

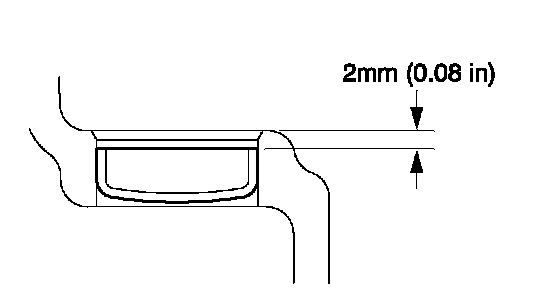

>>C<< SEALING CAP INSTALLATION
Press fit the sealing cap into the release fork to a depth indicated in the illustration, making sure it does not tilt.

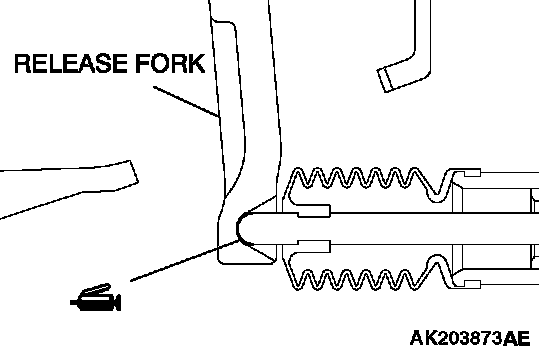

>>D<< RELEASE CYLINDER INSTALLATION





Apply Mitsubishi genuine grease Part No. 0101011 or equivalent to the release fork at the area indicated in the illustration.

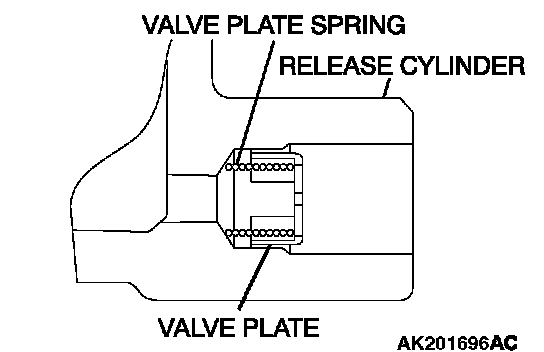

>>E<< VALVE PLATE SPRING / VALVE PLATE INSTALLATION
Install the valve plate spring and valve plate with the spring's major diameter end toward the valve plate.
