Removal and Installation

CLUTCH OVERHAUL

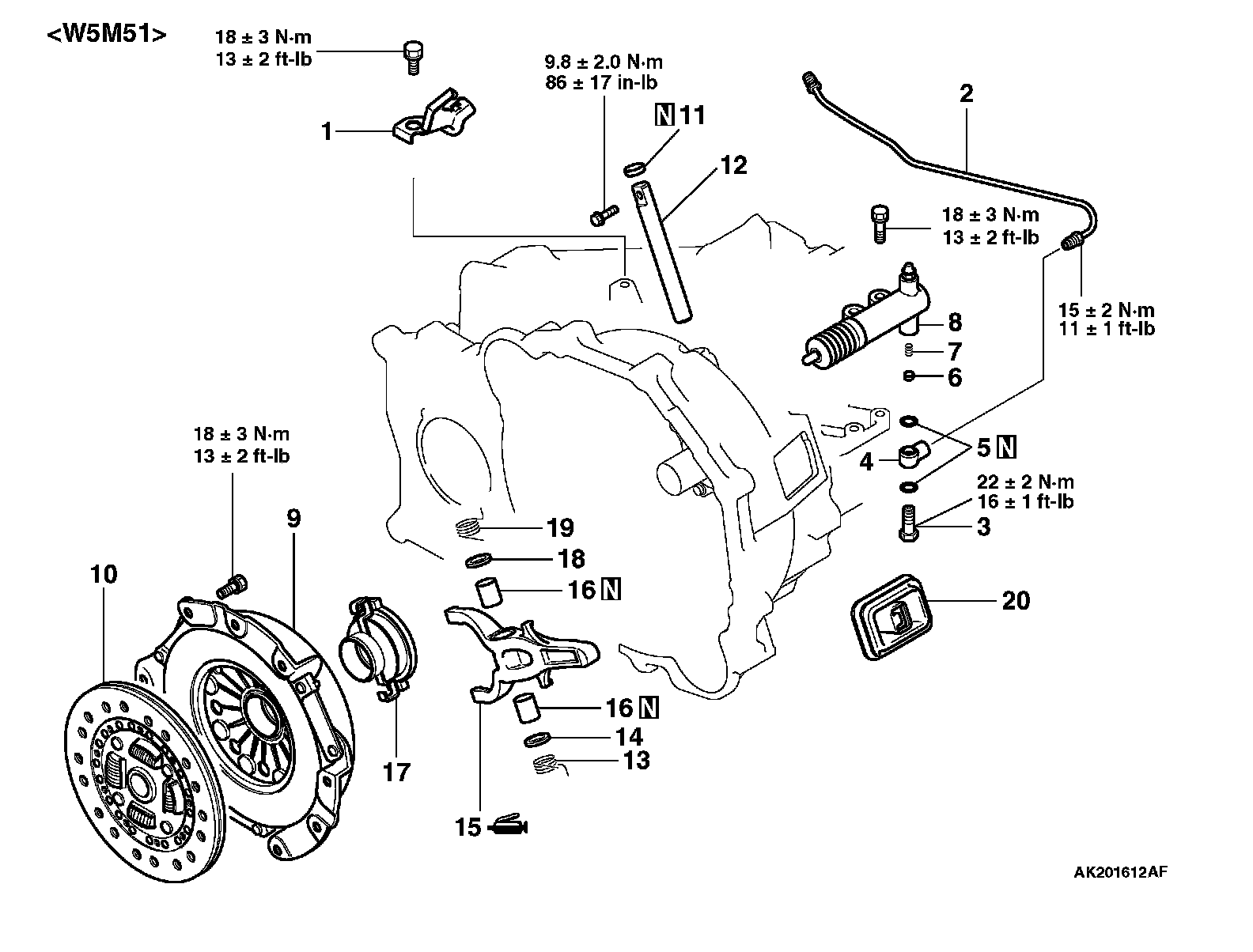

Removal Steps 1-20 (W5M51):

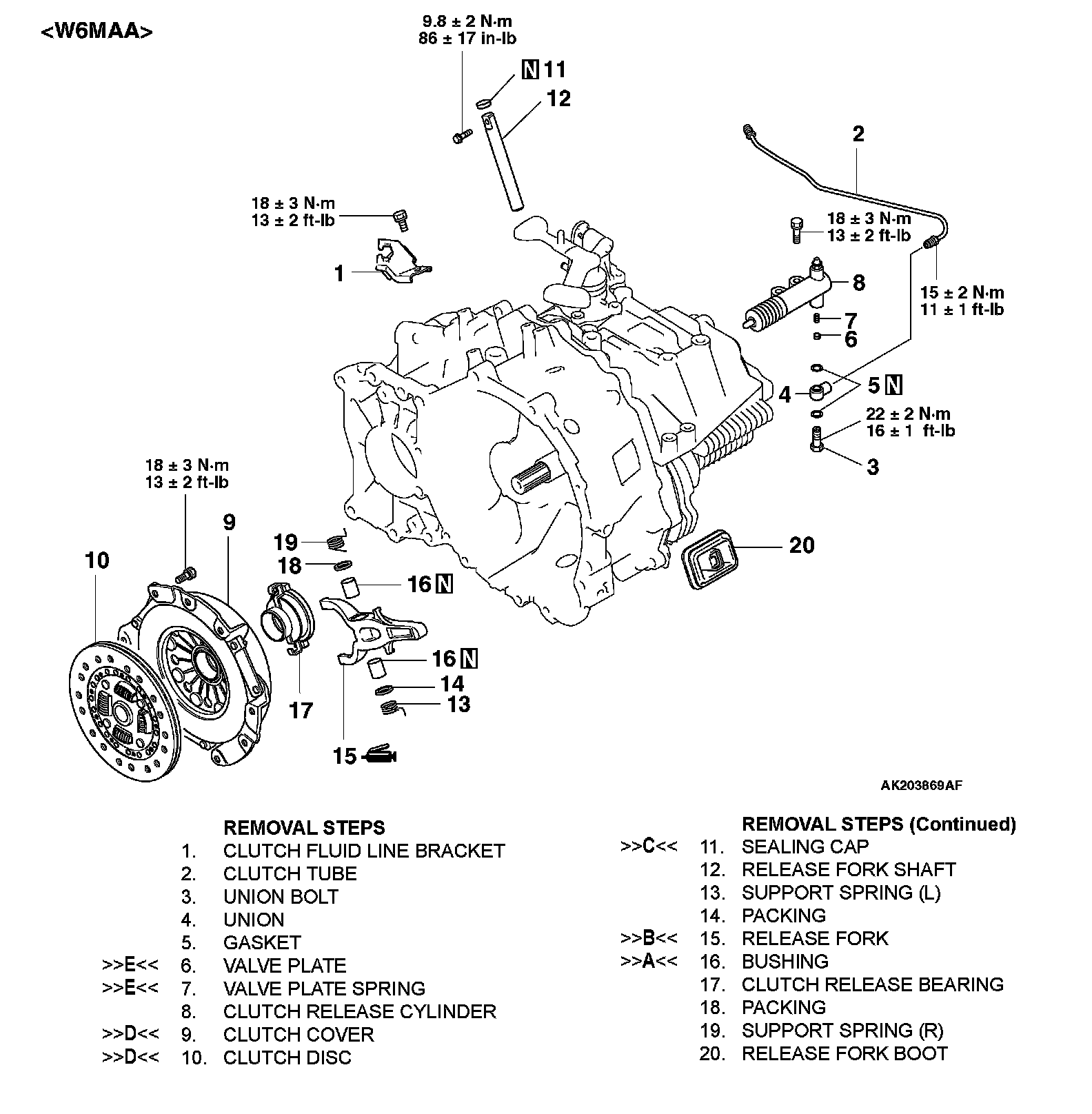

Removal Steps 1-20 (W6MAA):

REMOVAL AND INSTALLATION
INSTALLATION SERVICE POINTS

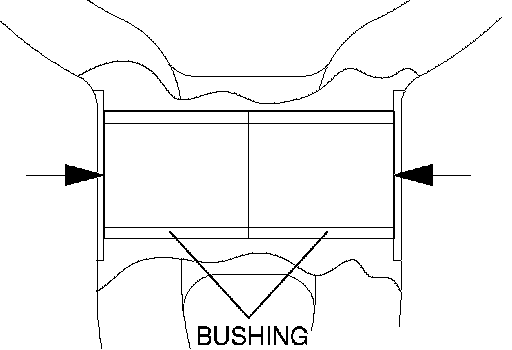

>>A<< BUSHING INSTALLATION





Press in the bushing into the release fork to the position shown in the illustration.

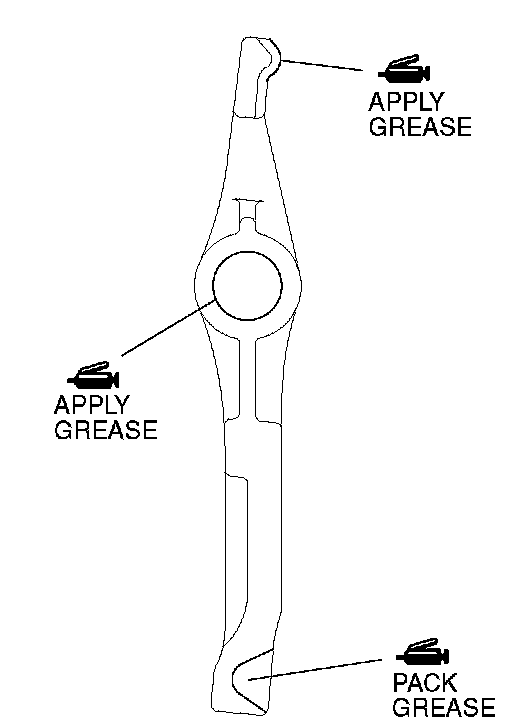

>>B<< RELEASE FORK INSTALLATION





Apply Mitsubishi part No.0101011 or equivalent to the illustrated positions of the release fork.

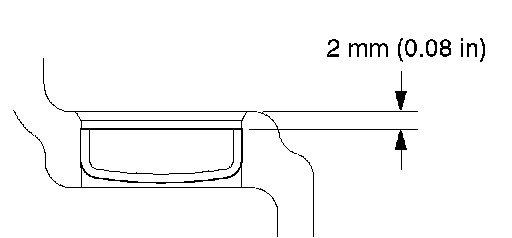

>>C<< SEALING CAP INSTALLATION





Press in the sealing cap to the position shown in the illustration. Be sure that it is not installed in a slanted position.

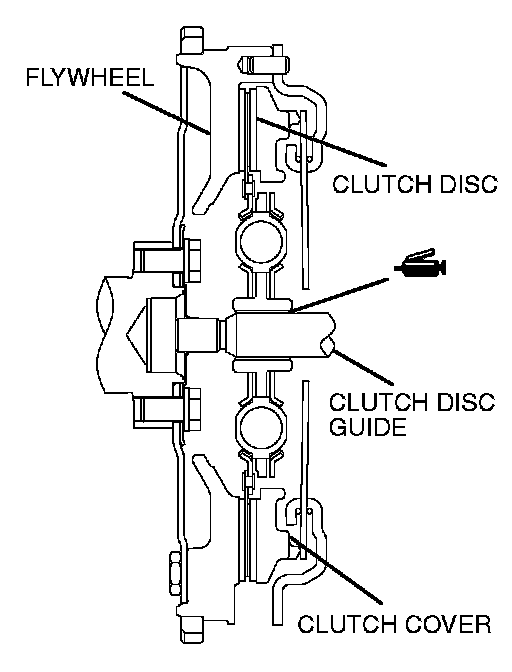

>>D<< CLUTCH DISC AND CLUTCH COVER INSTALLATION





1. Apply Mitsubishi part No.0101011 or equivalent to the clutch disc splines and rub it in the splines with a brush.
2. Use the clutch disc guide to position the clutch disc on the flywheel.
3. Install the clutch cover onto the flywheel.

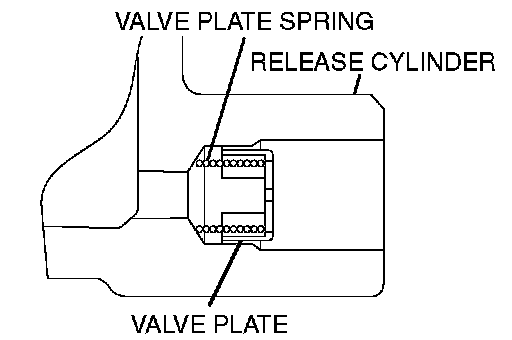

>>E<< VALVE PLATE SPRING AND VALVE PLATE INSTALLATION





Set the spring's large diameter side to the valve plate side, and install the valve plate spring and valve plate.
