Clutch: Description and Operation

GENERAL DESCRIPTION
The clutch is a dry single-disc, diaphragm type; hydraulic pressure is used for the clutch control.

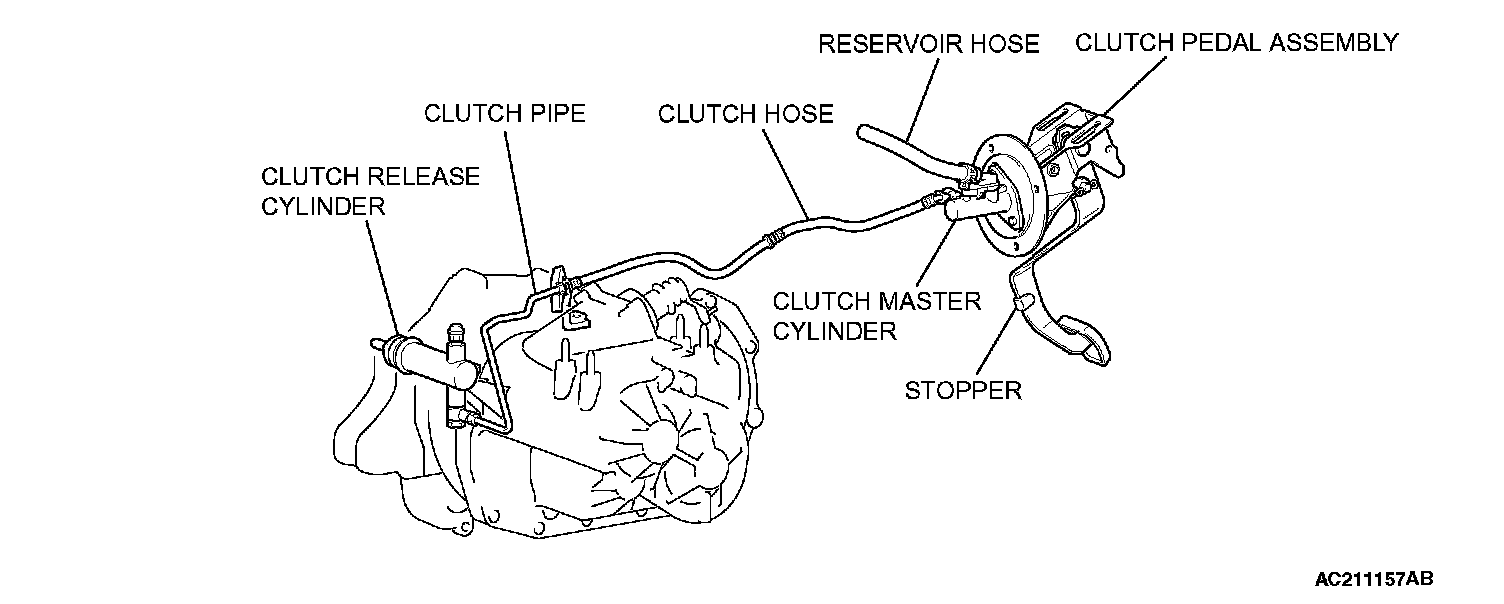

CONSTRUCTION DIAGRAM
