Procedures

INSPECTION

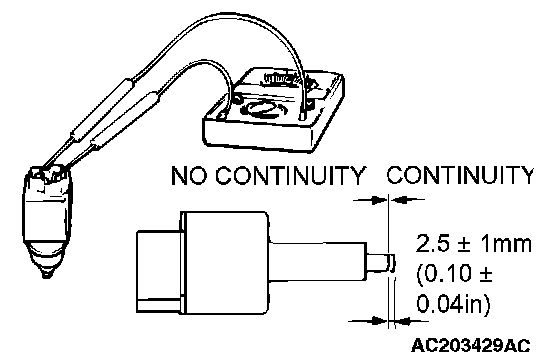

CLUTCH PEDAL POSITION SWITCH CHECK





1. Connect an ohmmeter between the clutch pedal position switch connector terminals.
2. There should be no continuity between the terminals when the plunger is pushed in as shown. There should be continuity when it is released.

CLUTCH INTERLOCK SWITCH CHECK





1. Connect an ohmmeter between the clutch interlock switch connector terminals.
2. There should be no continuity between the terminals when the plunger is pushed in as shown. There should be continuity when it is released.
