W5M51

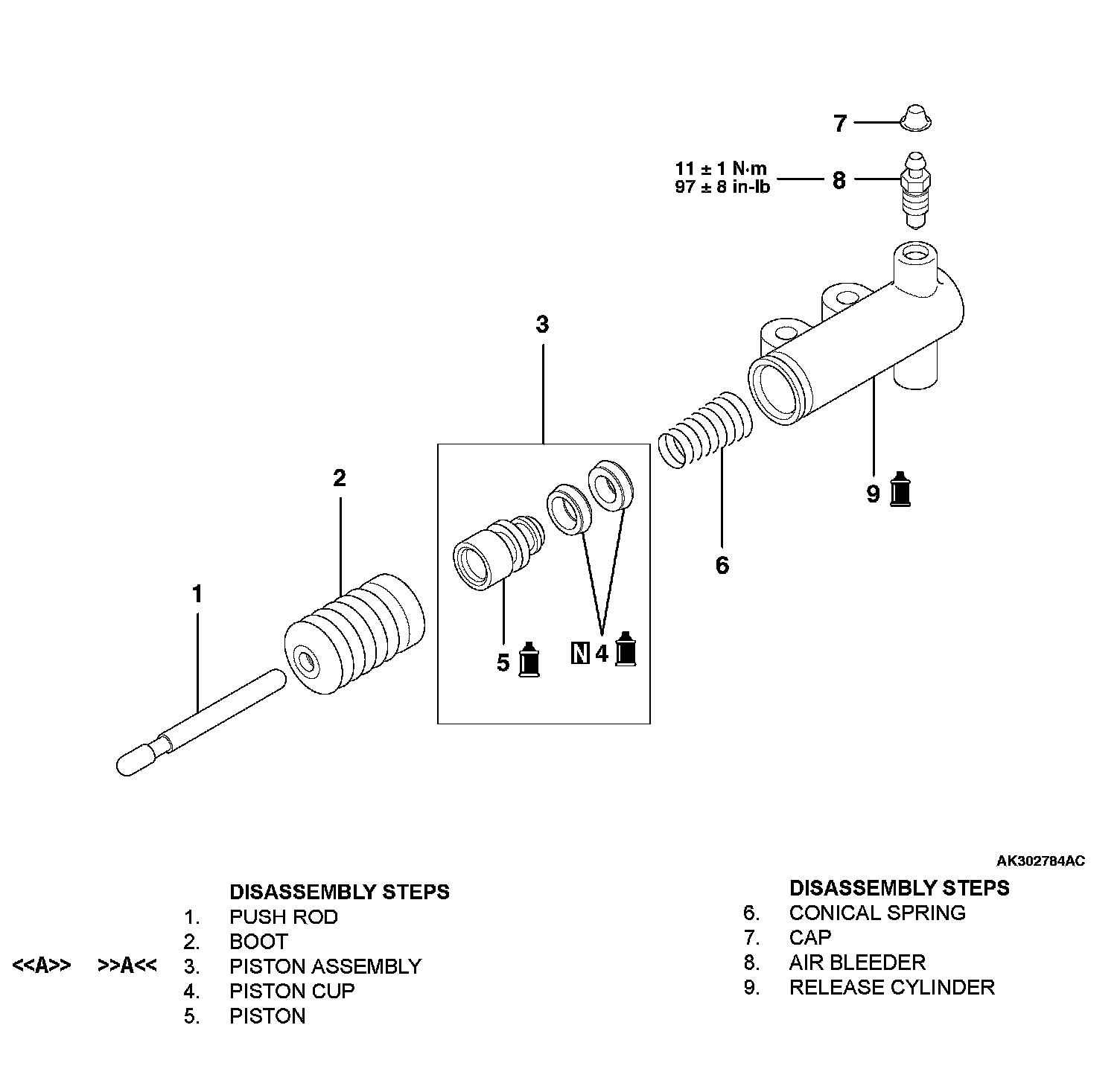

DISASSEMBLY AND REASSEMBLY
DISASSEMBLY SERVICE POINT
<> PISTON ASSEMBLY REMOVAL

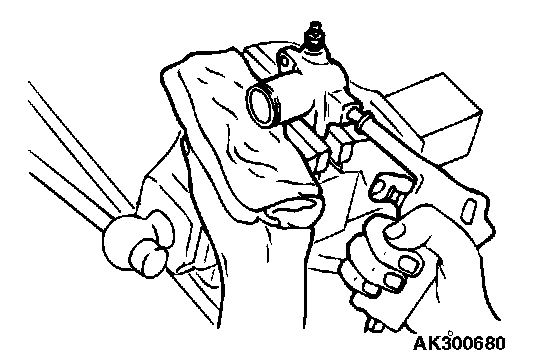

1. Cover with a shop towel to prevent the piston from popping out.

CAUTION: Apply compressed air slowly to prevent brake fluid from splashing.





2. Apply the compressed air into the tube mounting hole to remove the piston assembly.

ASSEMBLY SERVICE POINT
>>A<< PISTON ASSEMBLY INSTALLATION

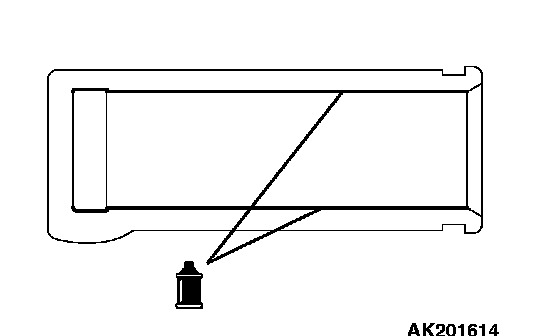

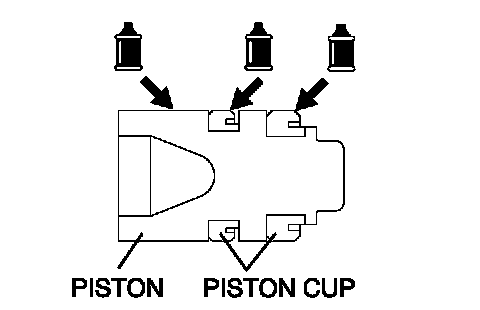

1. Apply brake fluid DOT3 or DOT4 to the piston cup and inner surface of the release cylinder.
2. Insert the piston assembly into the release cylinder.
