Clutch Master Cylinder: Service and Repair

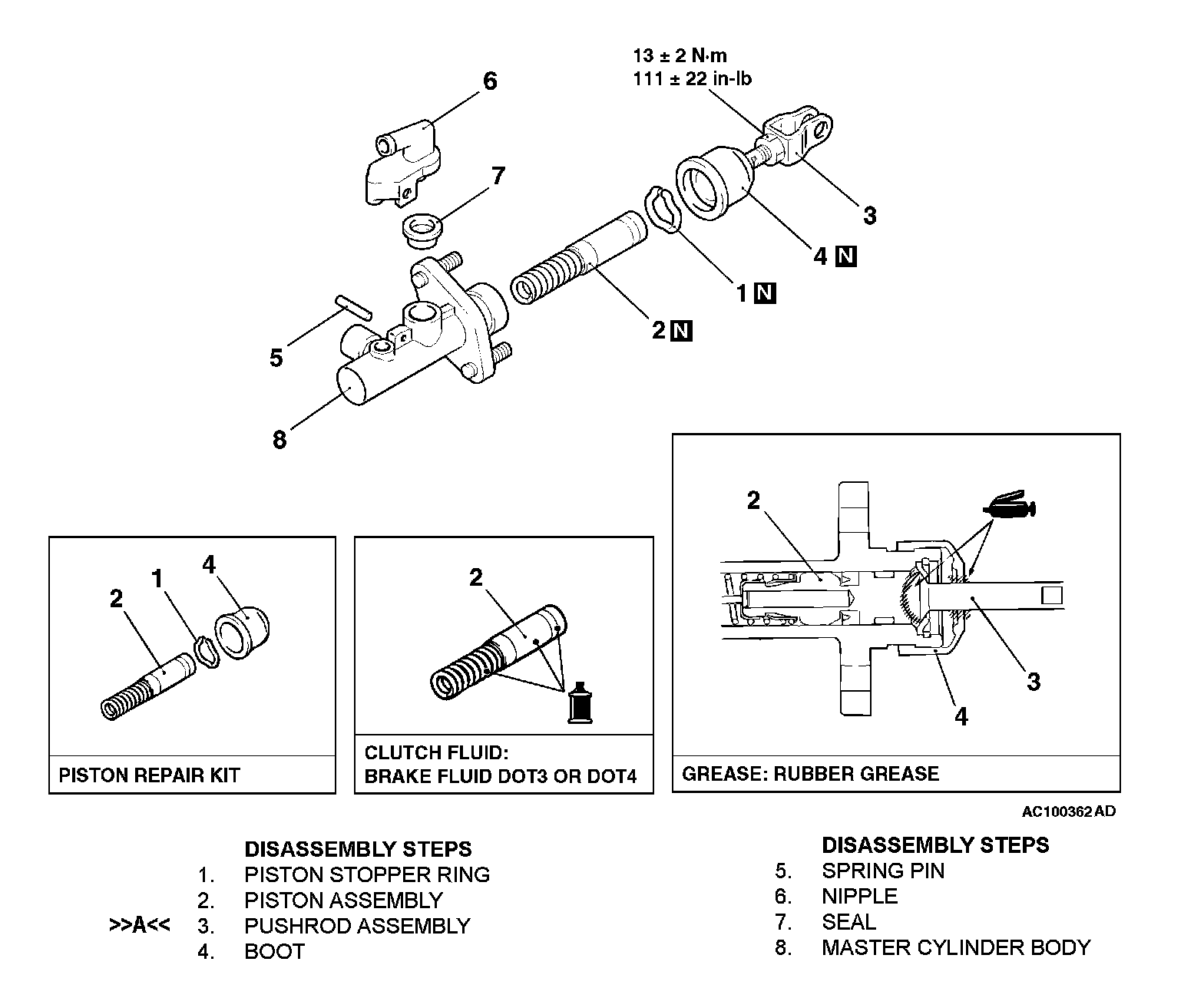

DISASSEMBLY AND ASSEMBLYCLUTCH MASTER CYLINDER
CAUTION: Do not disassemble the piston assembly.
ASSEMBLY SERVICE POINT
>>A<< PUSHROD ASSEMBLY INSTALLATION
Set the length of the pushrod assembly to the dimension shown to make the adjustment of the clutch pedal easier.
INSPECTION
^ Check inside the cylinder body for rust and scars.
^ Check the piston cup for wear and deformation.
^ Check the piston for rust and scars.
^ Check the pipe connection for clogging.
