Removal and Replacement

REMOVAL AND INSTALLATION

INSTALLATION SERVICE POINT

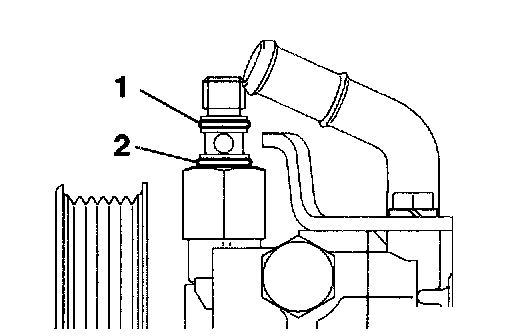

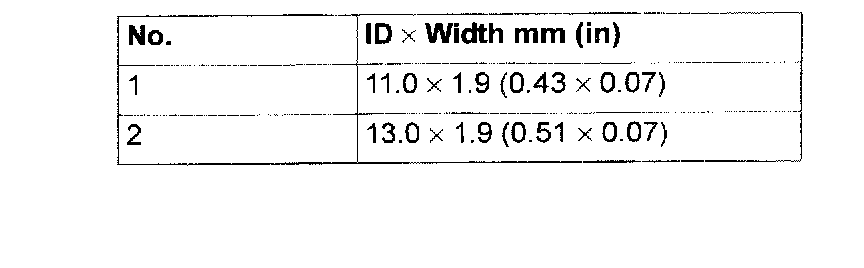

]]A[[ O-RING INSTALLATION

]]B[[ PRESSURE HOSE/SUCTION HOSE INSTALLATION





1. Install the pressure hose so that the notch is fixed with bracket as shown in the illustration.
2. Install the suction hose so that the marking is positioned as shown in the illustration
