Steering: Description and Operation

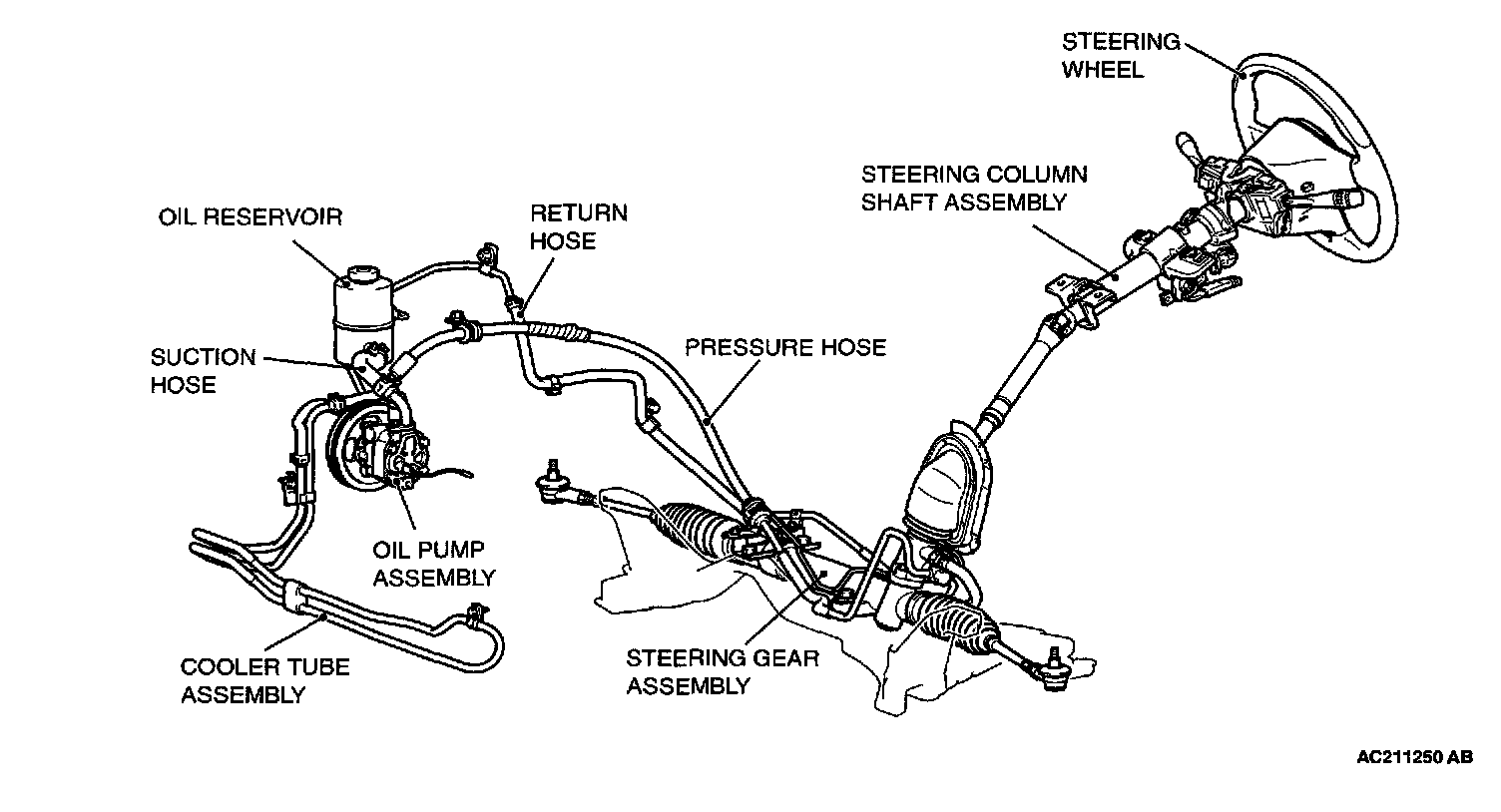

GENERAL DESCRIPTION
Power steering has been adopted in all vehicles to make the steering system easier to handle.





^ MOMO leather-wrapped 3-spoke steering wheel is used.
^ The steering column has a shock absorbing mechanism and a tilt steering mechanism.
^ A rack and pinion steering gear is used for steering that feels more direct and for ample handling performance.
^ An oil pump responsive to engine RPM is used, which, with tuning for a rigid gear box mount, provides stable steering at high speeds.
^ The separate oil reservoir is rubber-mounted.
