Home >> Mitsubishi >> 2006 >> Lancer Evolution L4-2.0L DOHC Turbo >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> Cylinder Block Assembly >> System Specifications >> Engine Overhaul >> Service Specifications

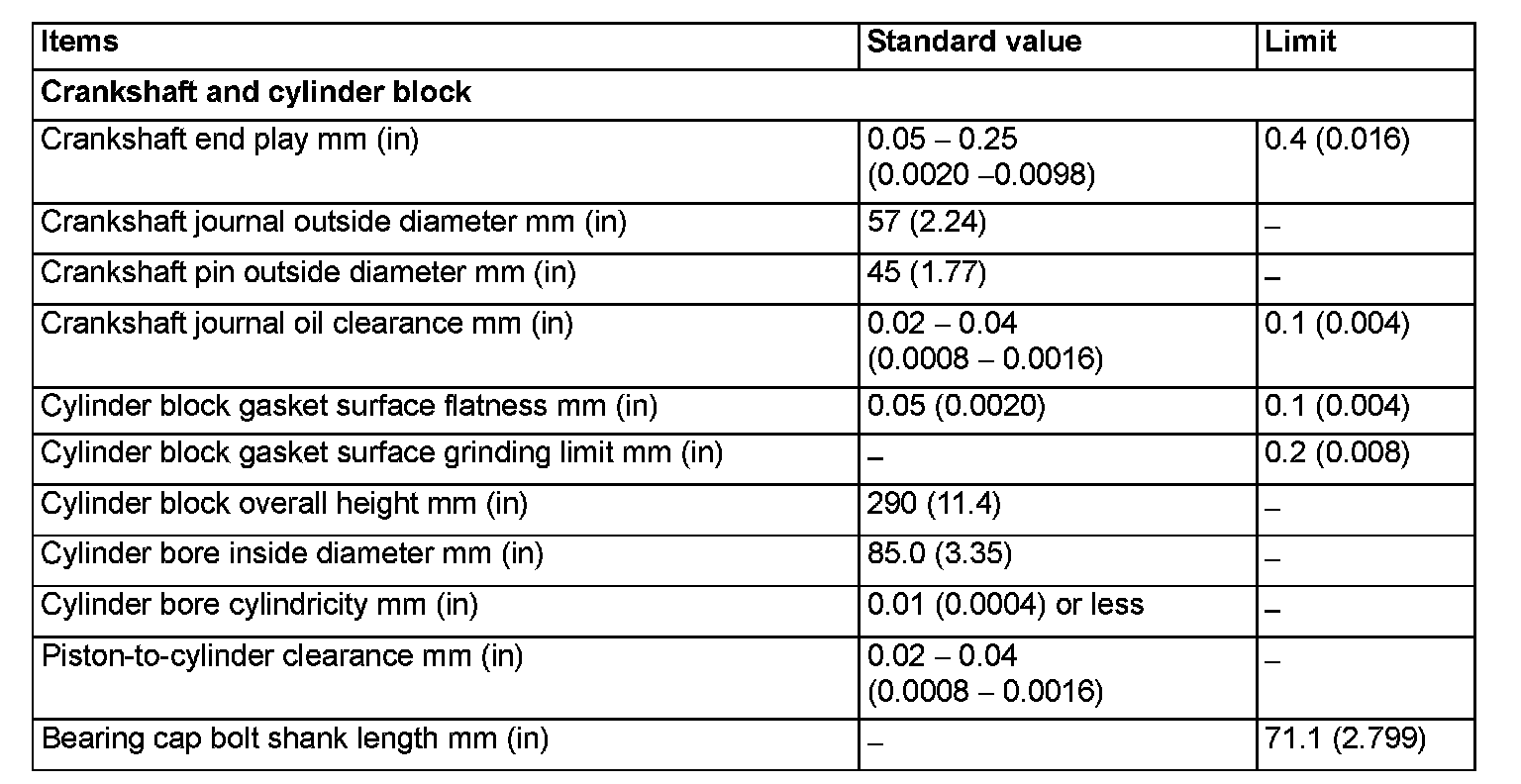

Service Specifications

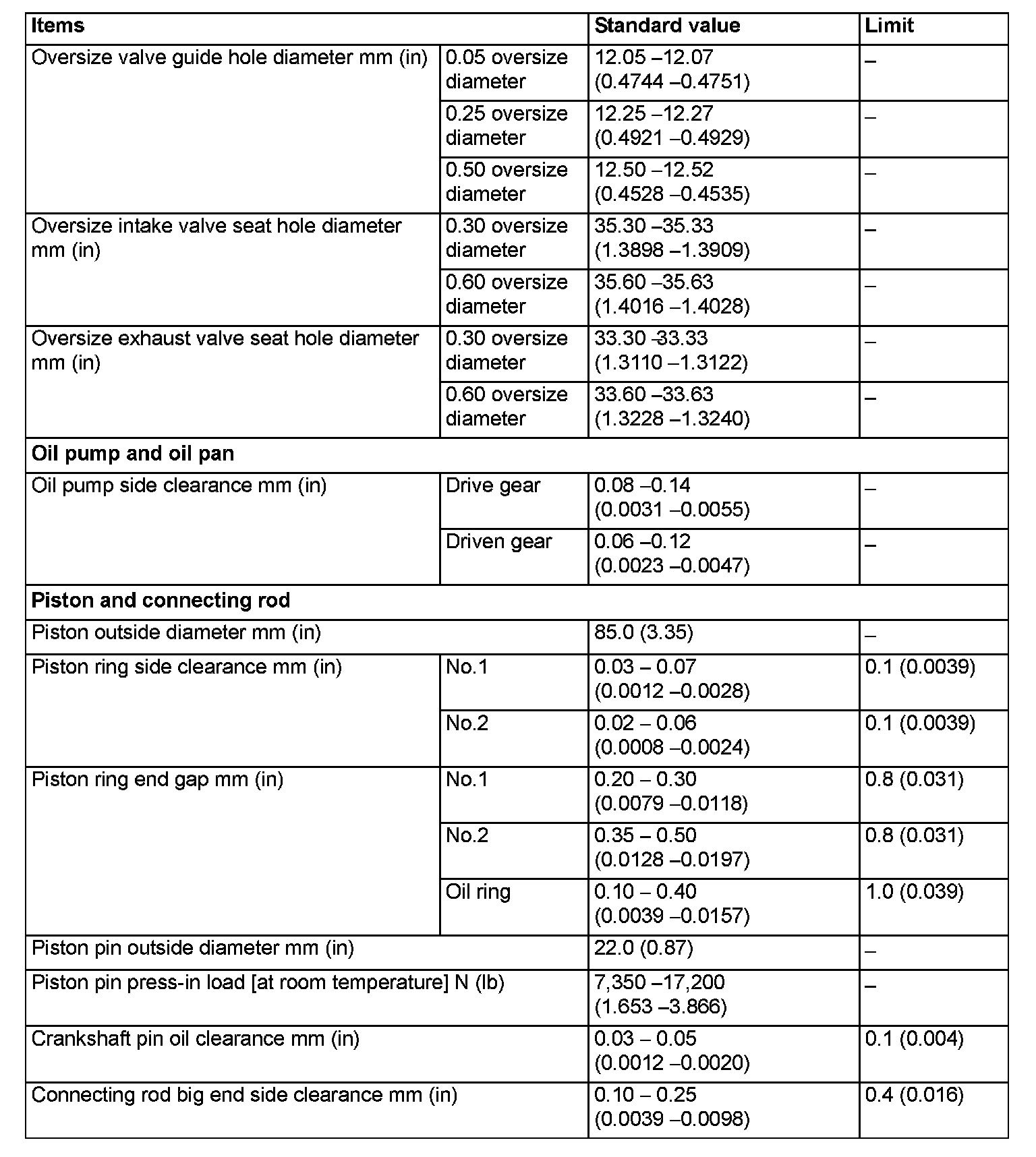

Service Specifications Part 2:



Service Specifications Part 3:
