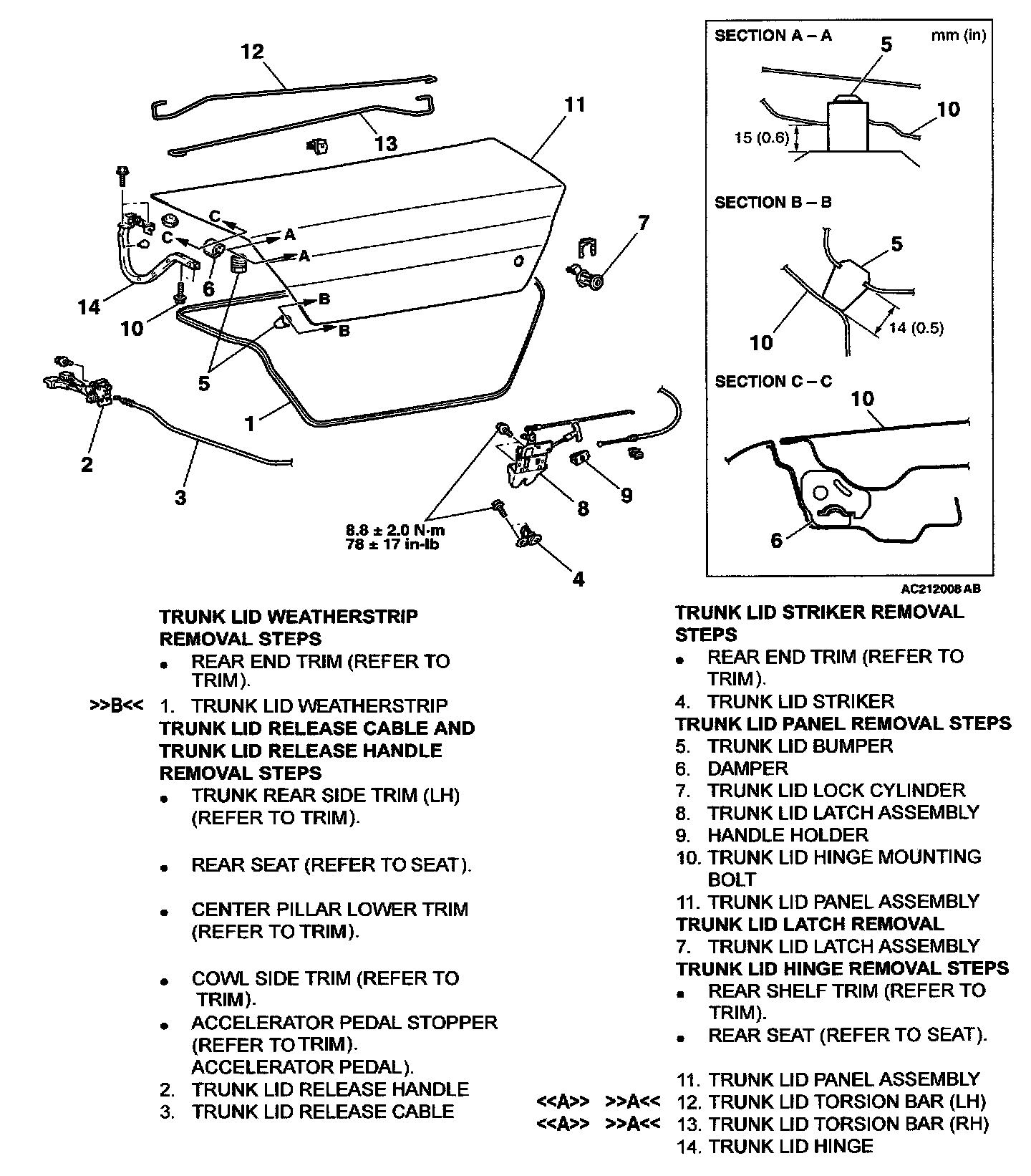

Trunk / Liftgate

Trunk Lid:

ITEM SPECIFICATION
Trunk lid
Trunk lid latch assembly bolt 8.8 ± 2.0 N.m (78 ± 17 in-lb)
Striker bolt 8.8 ± 2.0 N.m (78 ± 17 in-lb)



COMPONENT IDENTIFICATIONS

EQUIPMENT IDENTIFICATION COLOR
Vehicles without rear spoiler
LH -
RH Red

Vehicles with rear spoiler
LH Green
RH Yellow
