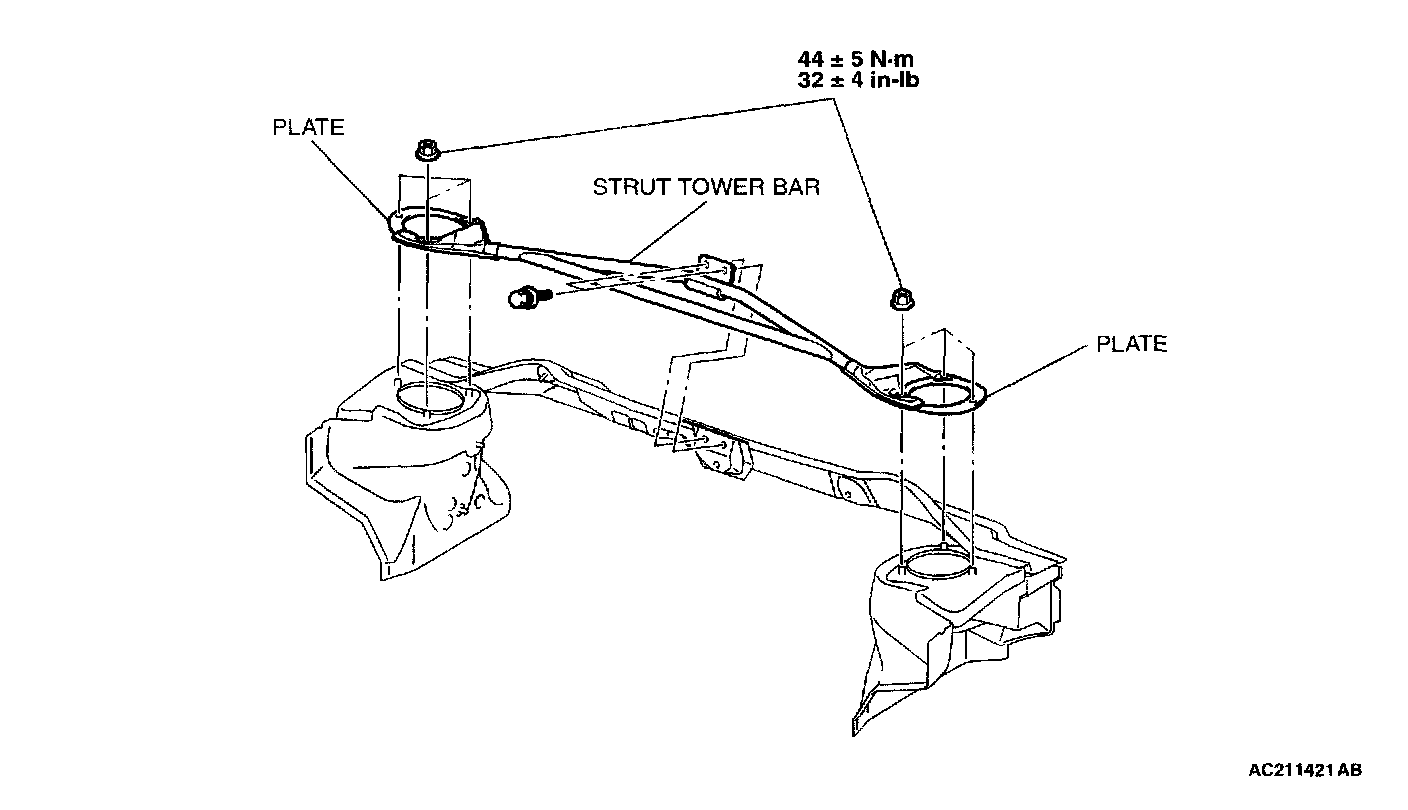

Strut Tower Brace



Strut Tower Bar:






ITEM SPECIFICATION
Strut tower bar
Strut tower bar bolt 44 ± 5 N.m (32 ± 4 in-lb)
