Lancer Evolution L4-2.0L DOHC Turbo
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Body and Frame
>>

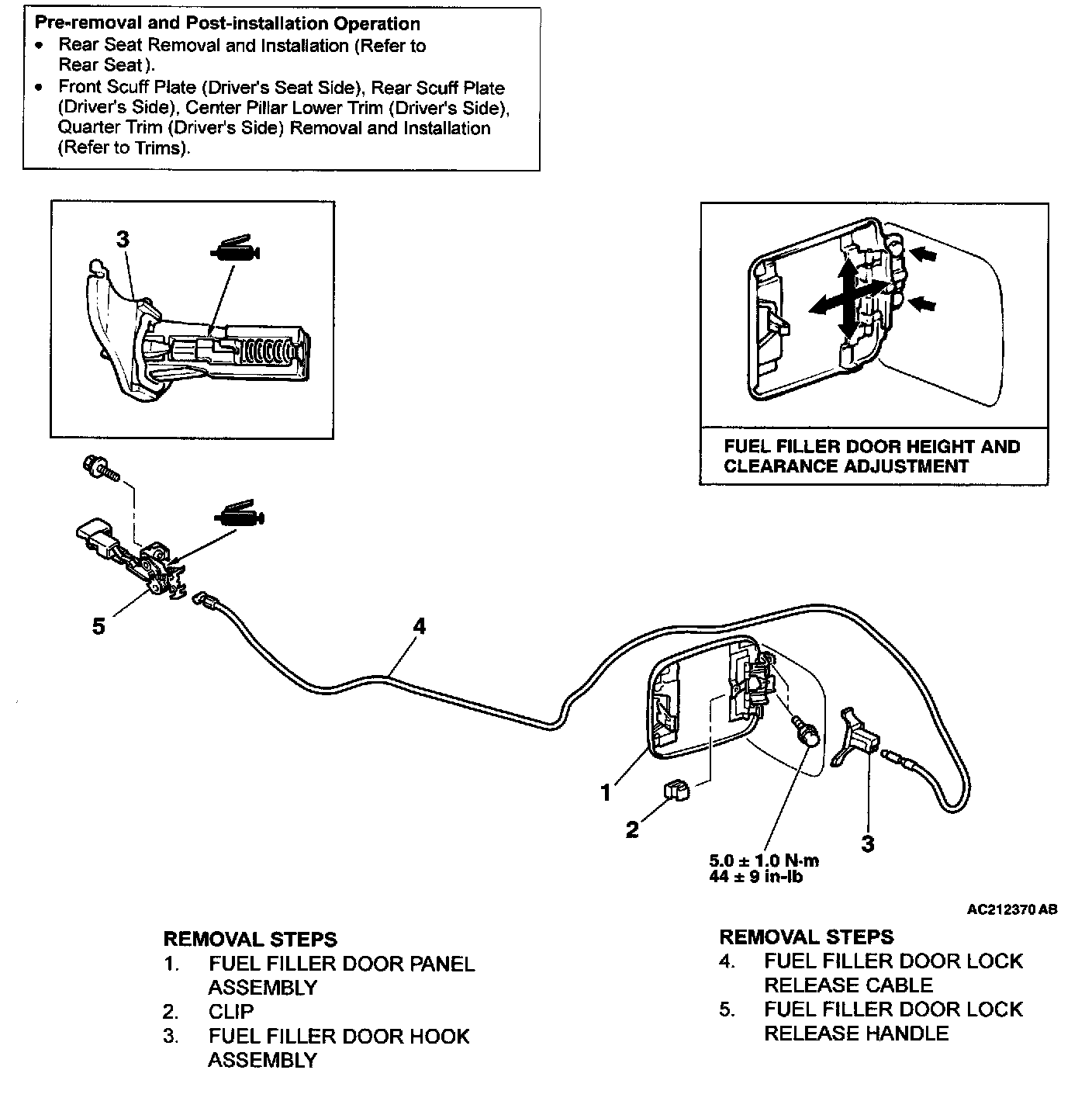

Fuel Door
Fuel Door
Fuel Filler Lid:
ITEM
SPECIFICATION
Fuel filler lid
Fuel filler lid bolt
5.0 ± 1.0 N.m (44 ± 9 in-lb)
