Restraints and Safety Systems: Service Precautions

WARNING/CAUTION LABELS

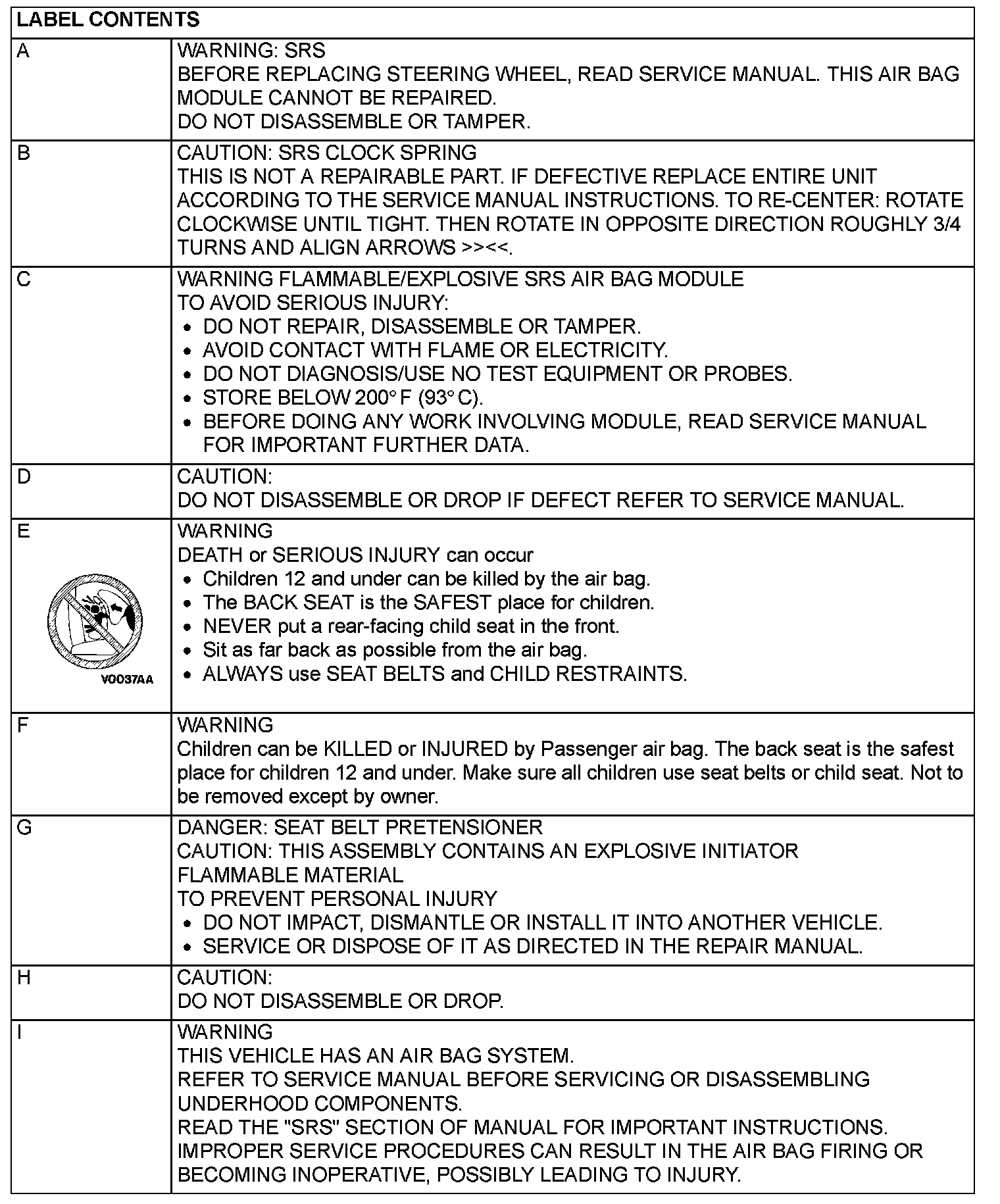

Label Contents:

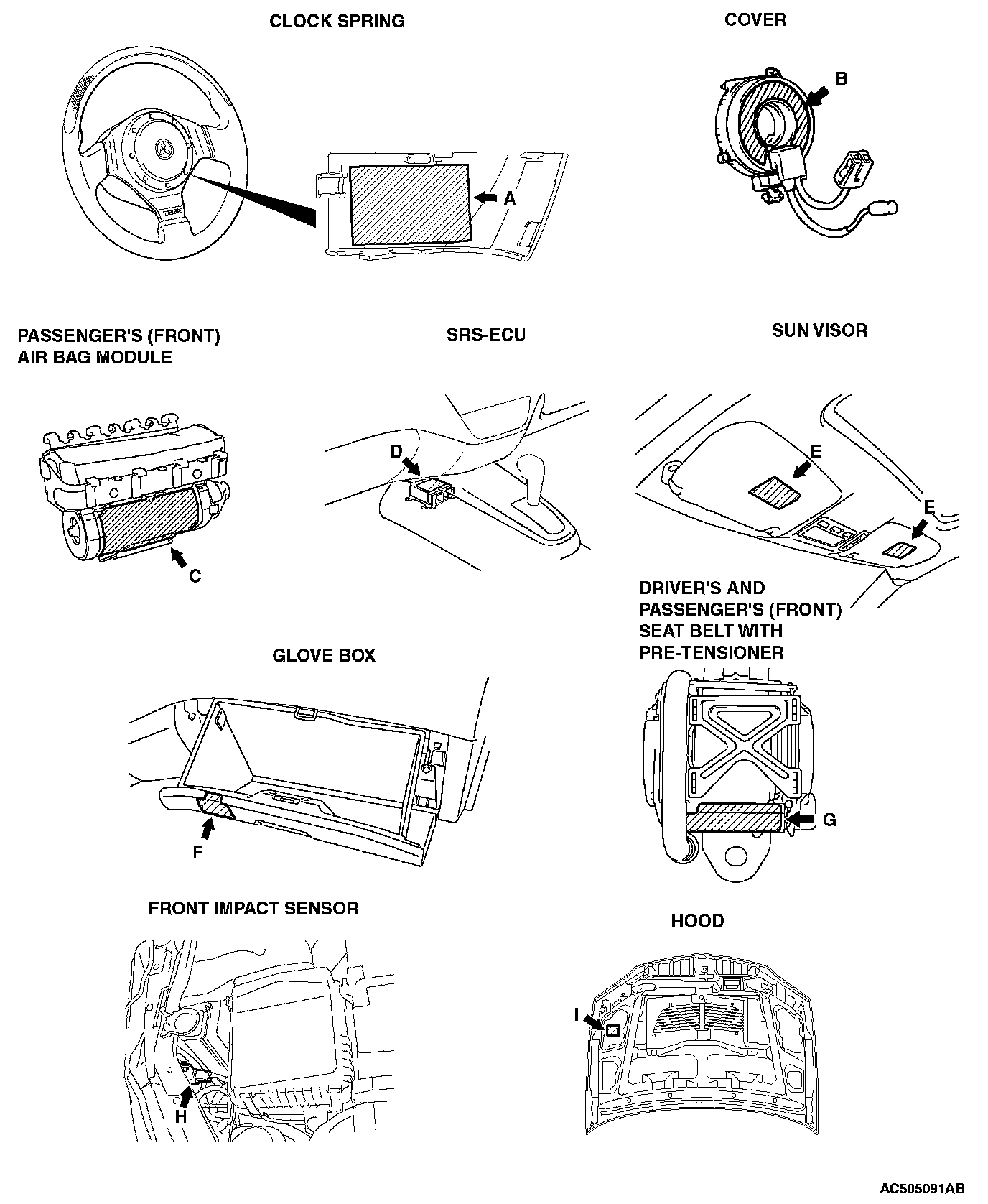

A number of caution labels related to the SRS are found in the vehicle, as shown in the illustration. Follow label instructions when servicing SRS. The label H is not to be removed except by owner. If the other labels are dirty or damaged, replace them.
