AWD System - ECU Terminal Voltage Chart Revision

No.: TSB-06-22-001

DATE: April, 2006

MODEL:
2005-06 Evolution

SUBJECT:
ECU TERMINAL VOLTAGE CHECK FOR ACD - SERVICE MANUAL REVISION

TSB Revision: TSB-06-22-001

PURPOSE

The ECU terminal voltage for ACD is incorrectly specified in the affected service manual pages. This bulletin contains the corrected voltage specification for terminal 1 of the AWD-ECU connector.

Write the TSB revision number of this bulletin in the "TSB Revision" box at the bottom of the affected service manual pages.

AFFECTED VEHICLES
2005-2006 Lancer Evolution models equipped with Active Center Differential (ACD)

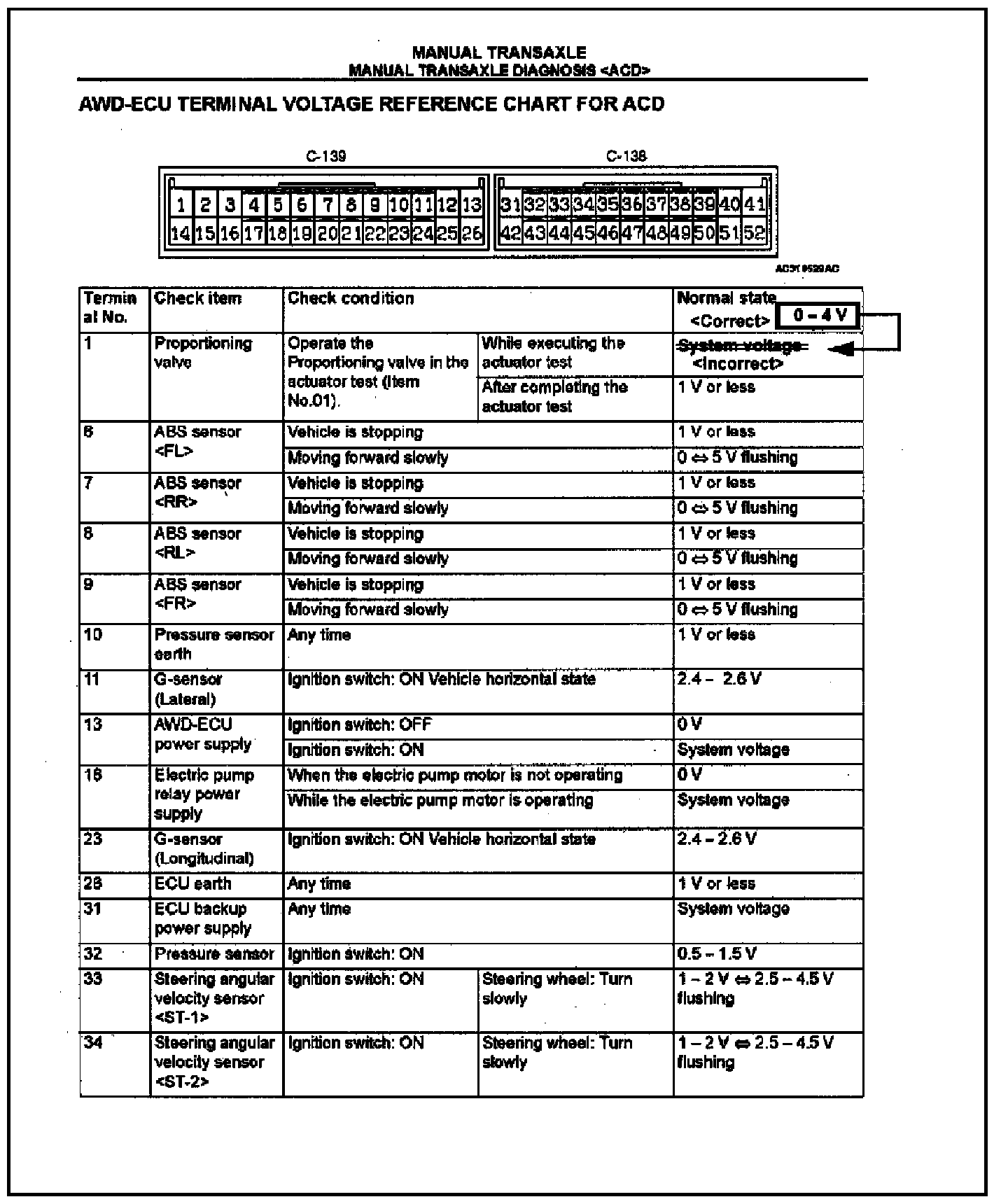

AFFECTED SERVICE MANUALS
2005 Lancer Evolution, page 22A-196
2006 Lancer Evolution, page 22A-198





2005 Lancer Evolution, page 22A-196
2006 Lancer Evolution, page 22A-198
