Removal and Installation

THROTTLE BODY ASSEMBLY

REMOVAL AND INSTALLATION

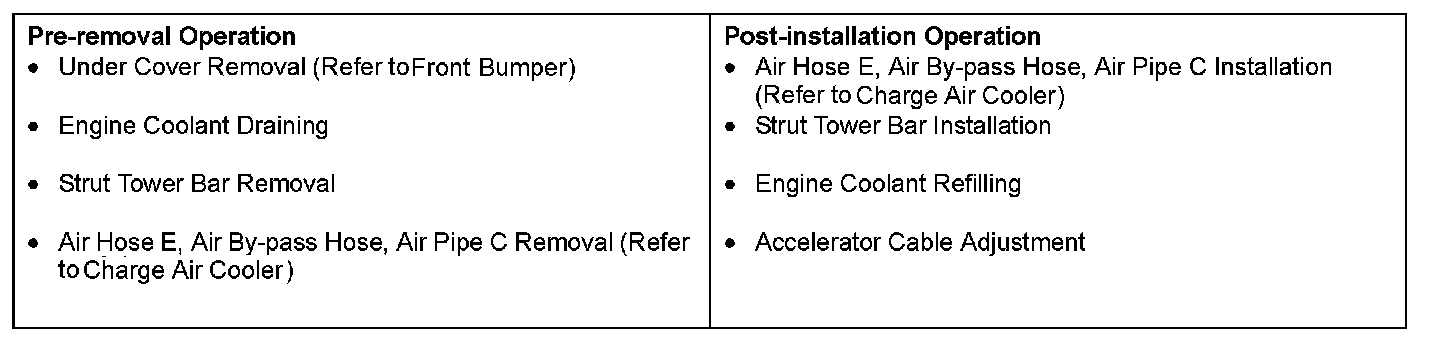

Pre-removal Operation And Post-installation Operation:

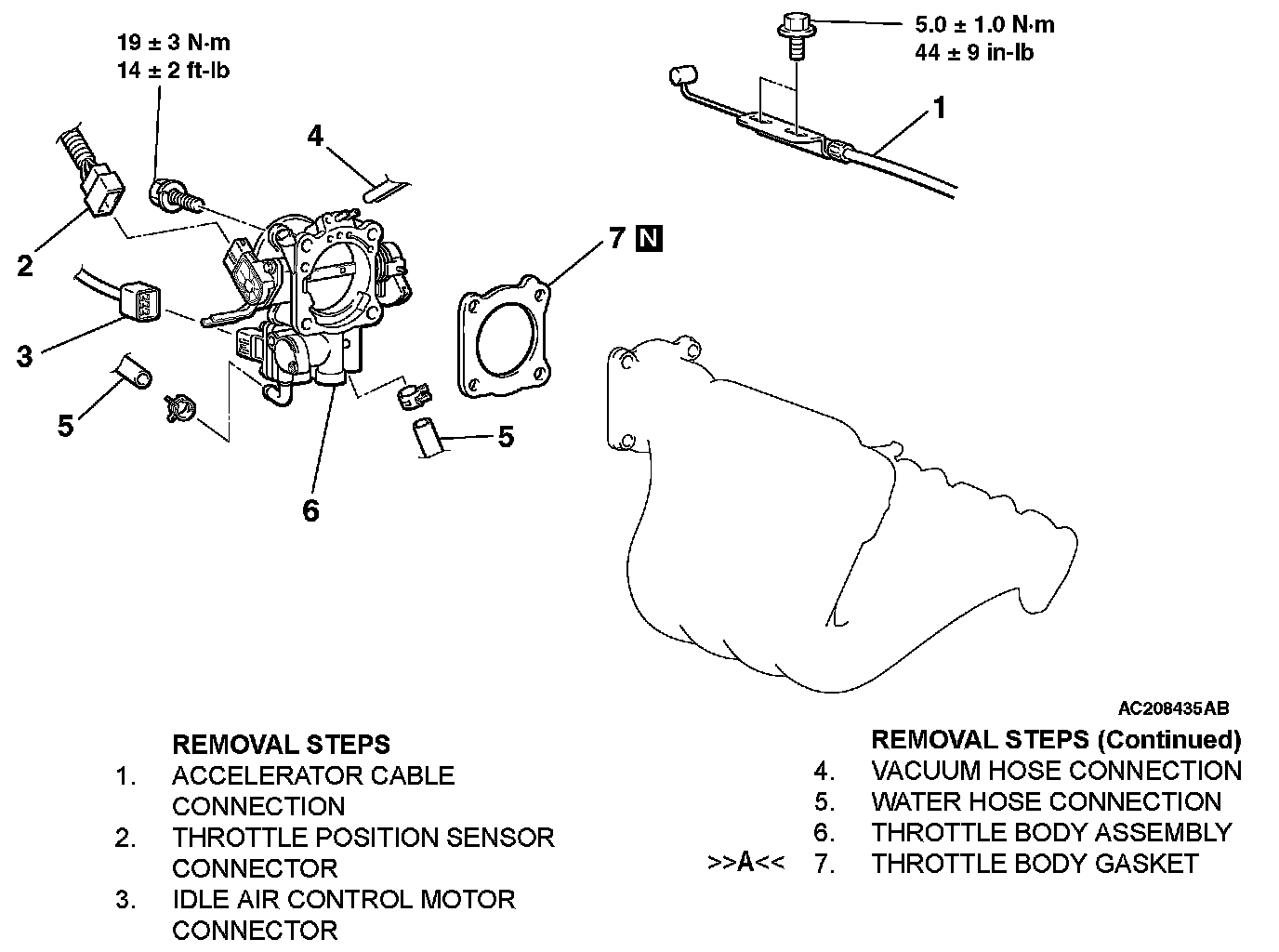

Removal Steps 1 - 7:

CAUTION: When the throttle body assembly replacement is performed, use scan tool MB991958 to initialize the learning value.

INSTALLATION SERVICE POINT

>>A<< THROTTLE BODY GASKET INSTALLATION

CAUTION: Poor idling etc. may result if the throttle body gasket is installed incorrectly.

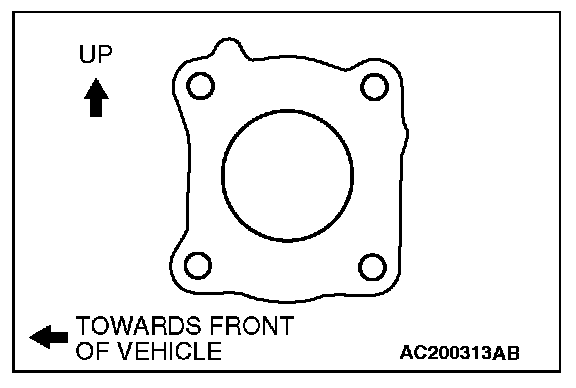

Install the throttle body gasket as shown in the illustration.
