Fuel Tank: Description and Operation

GENERAL DESCRIPTION

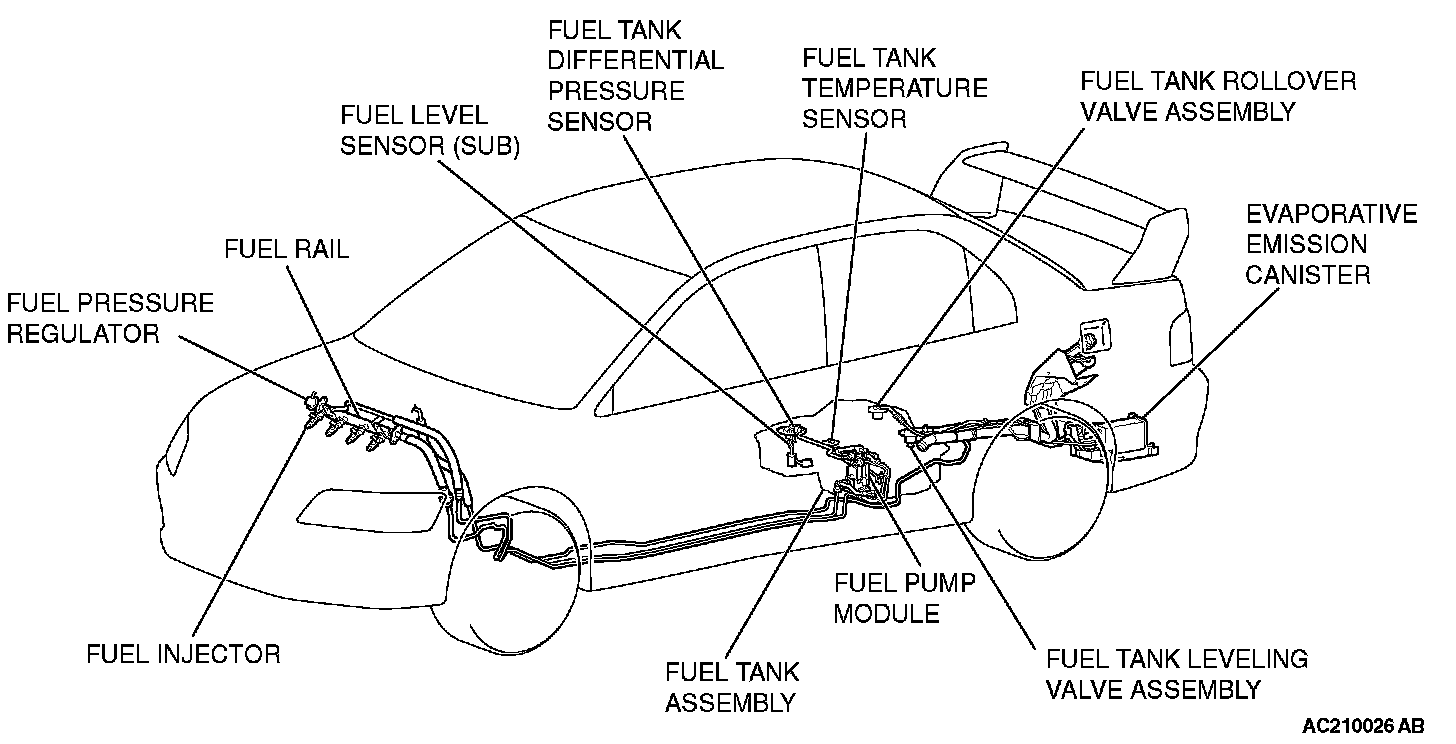

- The fuel tank is located under the floor of the rear seats to provide increased protection and more luggage space.
- A fuel tank rollover valve assembly is used to prevent fuel from leaking out in case of a collision.
- A fuel pump module, including fuel pump, fuel filter, reservoir cup and fuel level sensor (main), is utilized to reduce weight and improve serviceability.
