Fuel Pump Module Replacement
FUEL PUMP MODULE REPLACEMENT1. Remove the rear seat cushion assembly.
2. Remove the service hole cover.

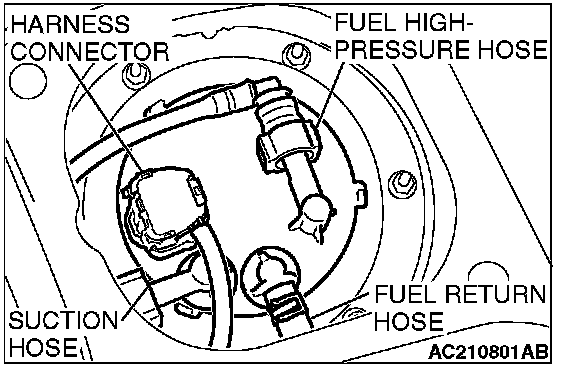

3. Disconnect the harness connector.
NOTE: Check the fuel pump. If defective, replace the fuel pump, which is incorporated in the fuel pump module.
4. Disconnect fuel high-pressure hose, suction hose and fuel return hose.

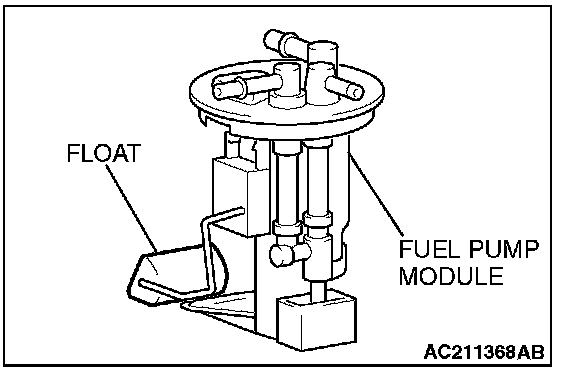

CAUTION: When withdrawing the fuel pump module from the fuel tank, be careful not damage the module unit and the float.
5. Unscrew the mounting nuts to remove the fuel pump module.
6. Replace the fuel pump.
CAUTION: When installing the fuel pump module into the fuel tank, be careful not damage the module unit and the float.
7. Install the fuel pump module. Tighten the mounting nuts to the specified torque.
Tightening torque: 2.5 ± 0.5 N.m (23 ± 4 in-lb)

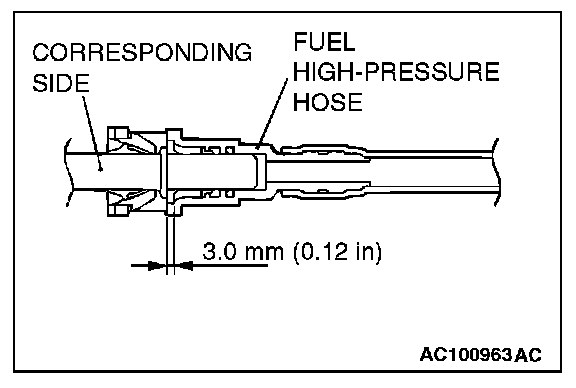

CAUTION: Snap the fuel high-pressure hose one-touch joint into place, then pull back slightly on the hose to assure it is secure. However, the connection should have a play of approximately 3.0 mm (0.12 inch).
8. Connect the harness connector, fuel high-pressure hose, suction hose and fuel return hose.
9. Replace the service hole cover.
10. Install the rear seat cushion assembly
