Fuel Pump Module Disassembly and Assembly

FUEL PUMP MODULE DISASSEMBLY AND ASSEMBLY

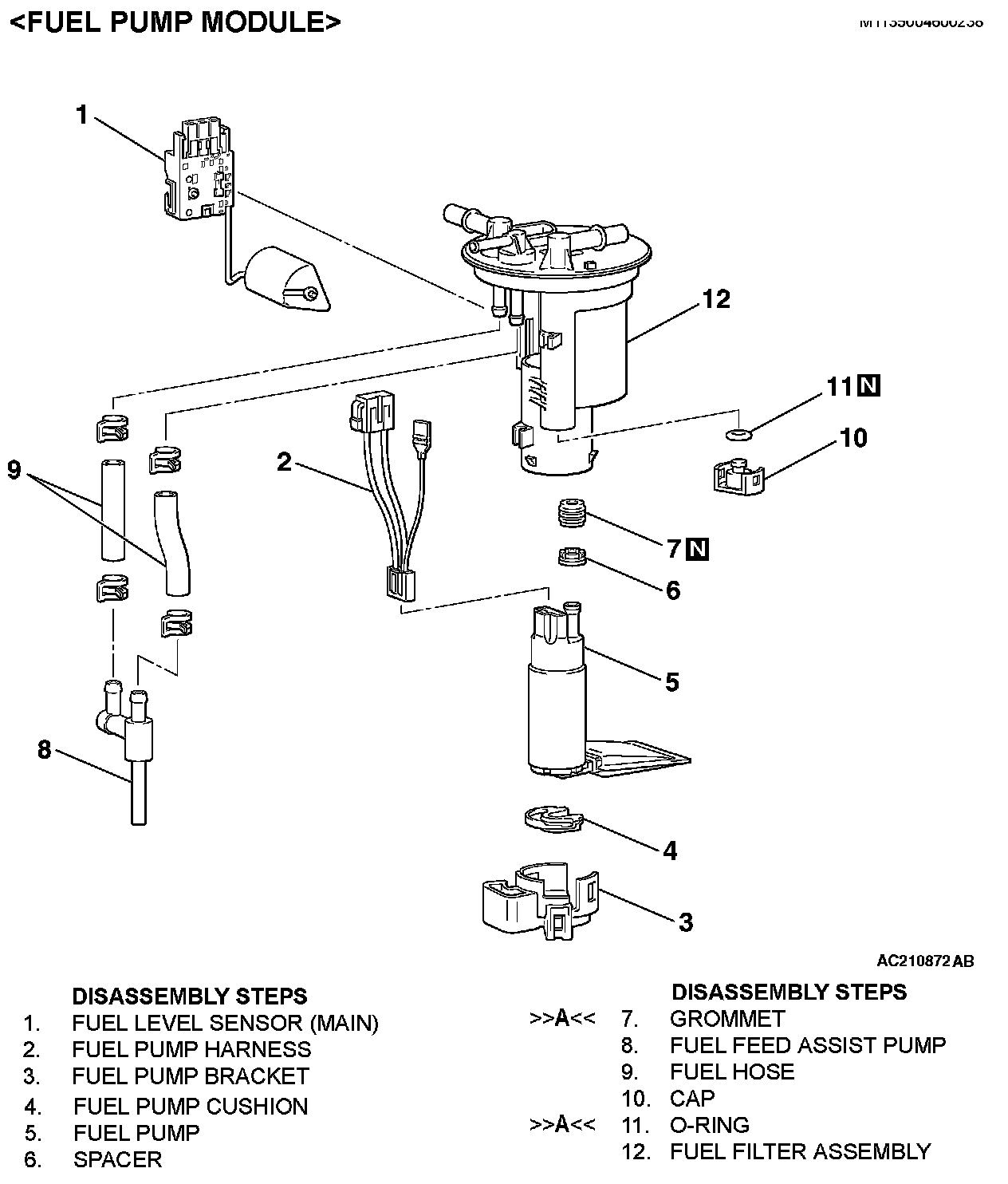

Disassembly Steps 1 - 12:

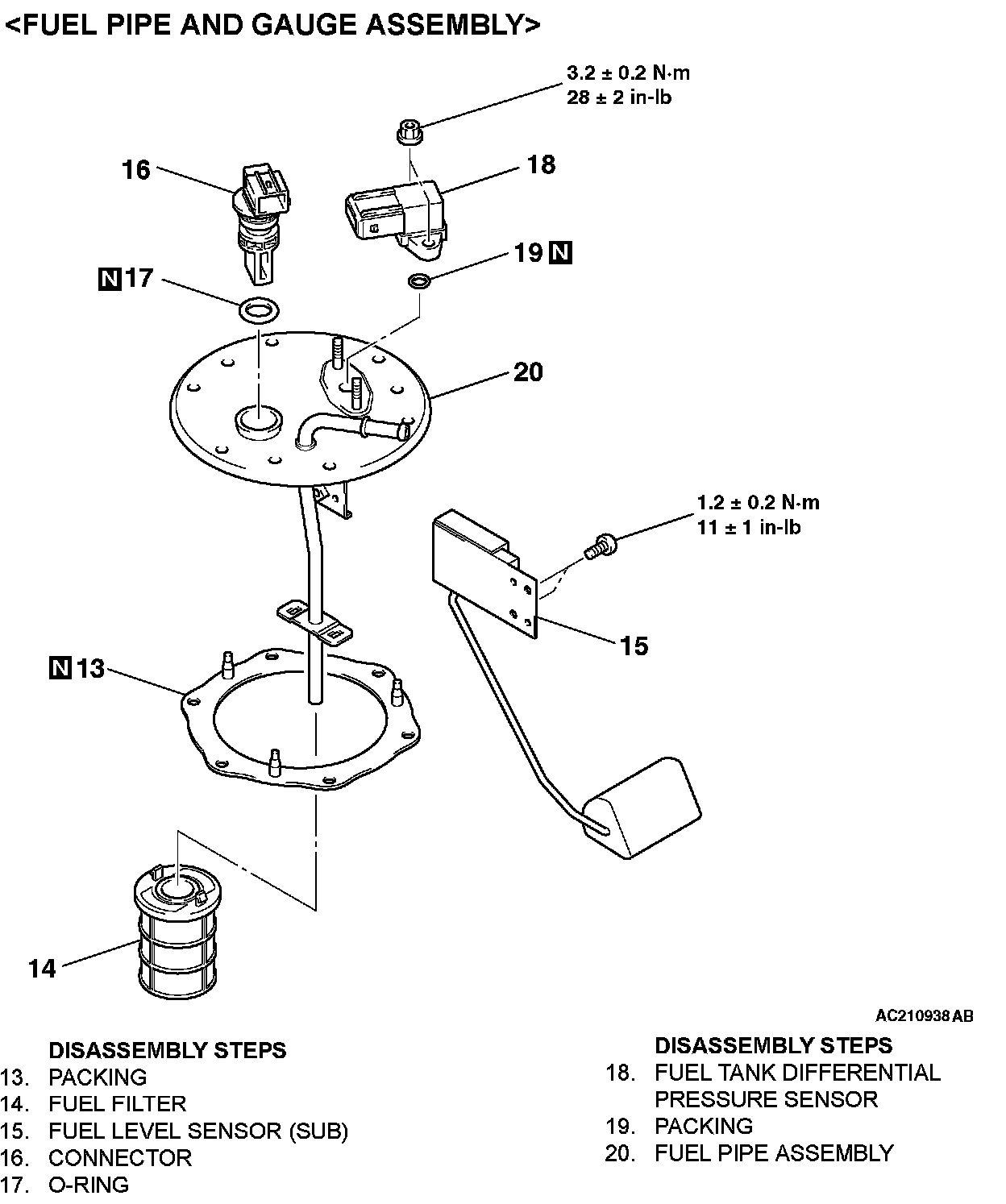

Disassembly Steps 13 - 20:

ASSEMBLY SERVICE POINT

>>A<< O-RING/GROMMET INSTALLATION

Apply gasoline on the O-ring and the grommet before mounting them to prevent damage or twisting.
