Injector Resistor Check

INJECTOR RESISTOR CHECK

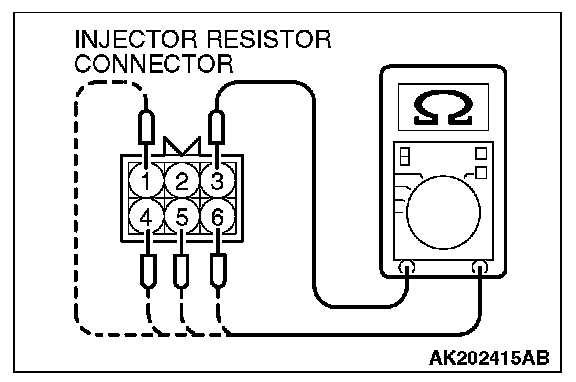

1. Disconnect the injector resistor connector.

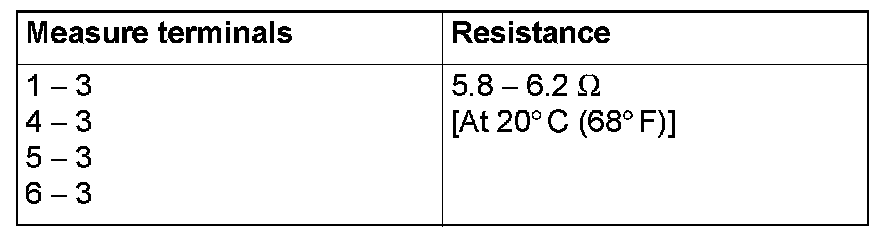

2. Measure the resistance between terminals.
3. If the resistance is out of specification, replace the injector resistor.
