Exhaust Gas Recirculation: Service and Repair

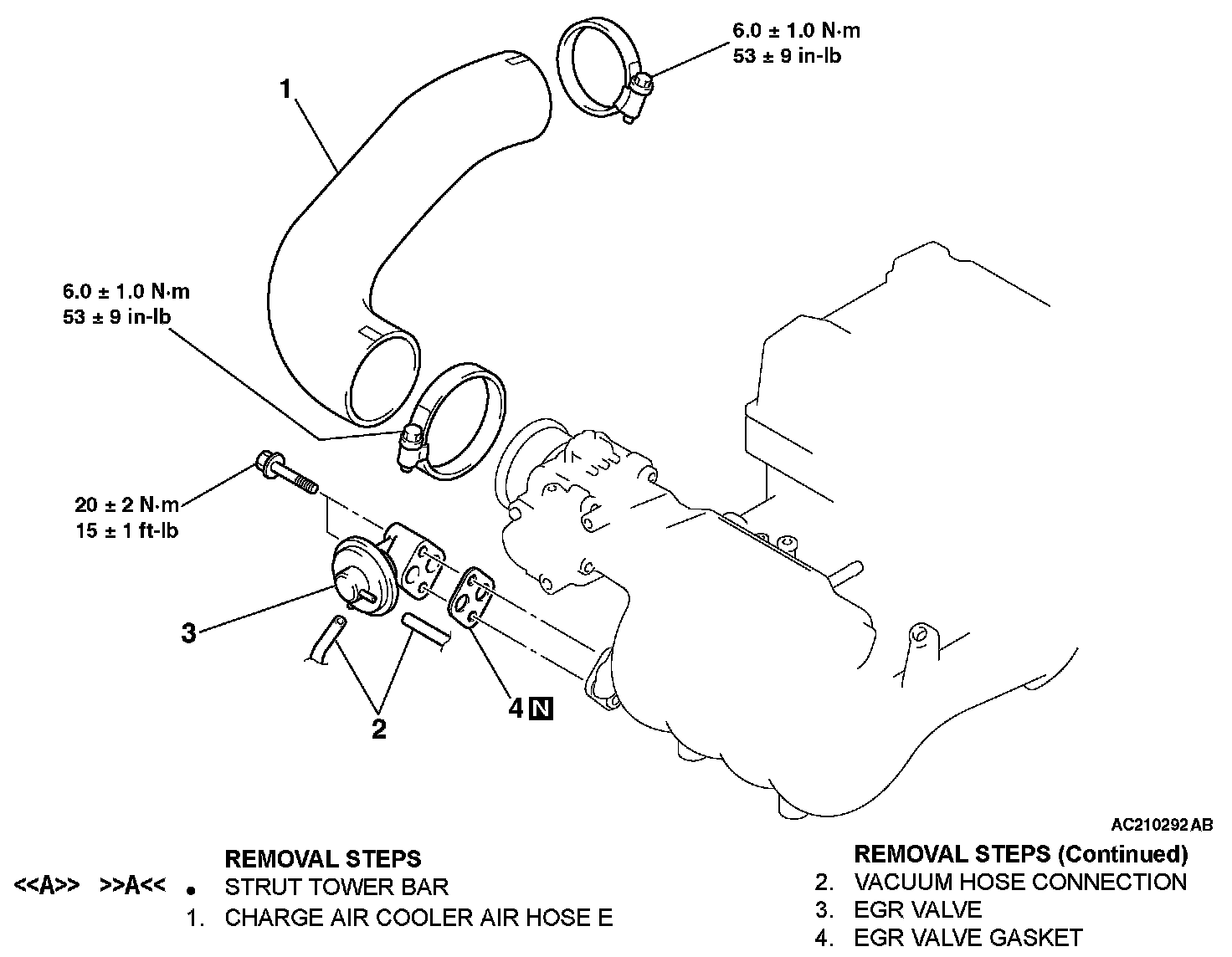

REMOVAL AND INSTALLATION






REMOVAL SERVICE POINT

>>A<< STRUT TOWER BAR REMOVAL

1. Remove the strut tower bar. (Refer to Strut Tower Bar).
2. After removing the strut tower bar, install the top of the strut assembly temporarily with the strut tower bar mounting nuts.

INSTALLATION SERVICE POINTS

>>A<< STRUT TOWER BAR INSTALLATION

1. Remove the nuts that are temporarily securing the strut assembly.
2. Install the strut tower bar. (Refer to Strut Tower Bar).
