Terminal Resistance and Continuity Check

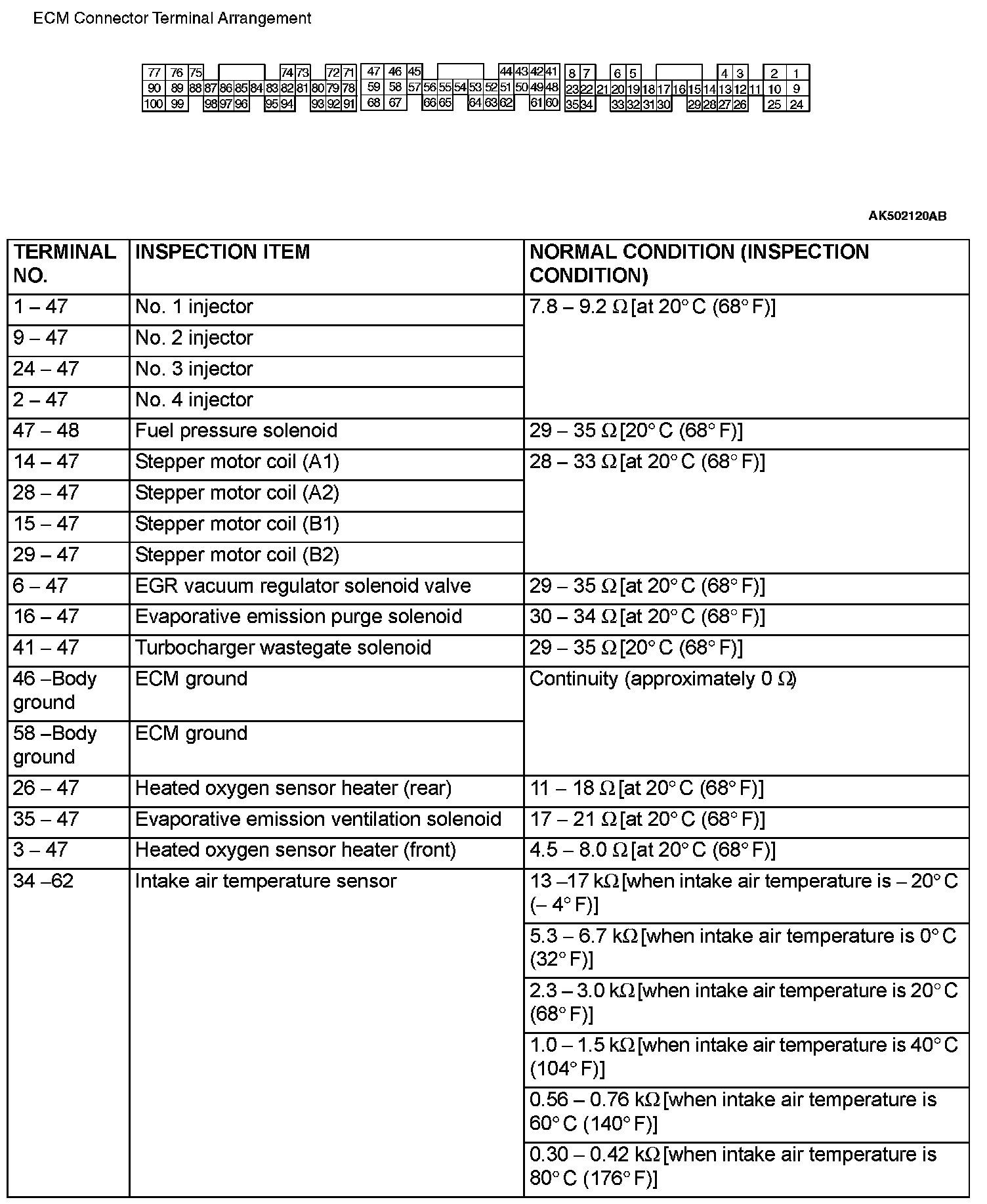

ECM Connector Terminal Arrangement Part 1:

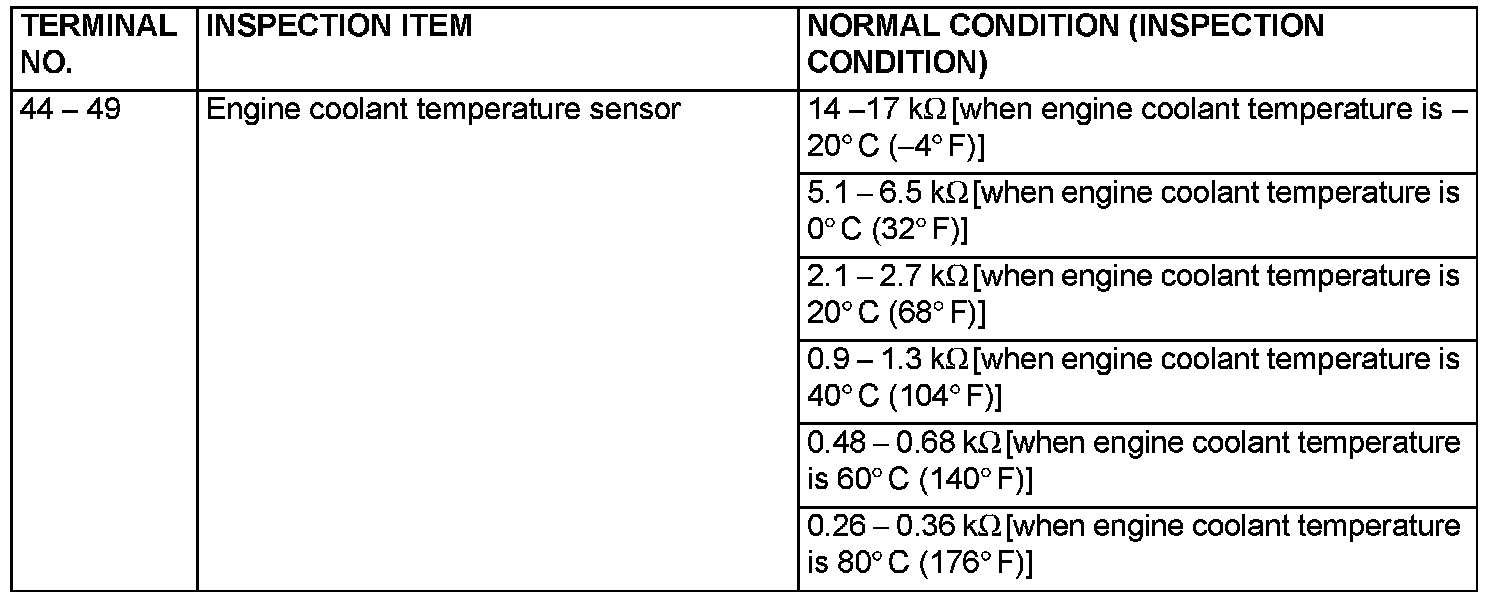

ECM Connector Terminal Arrangement Part 2:
