Fail-Safe Function Reference Table

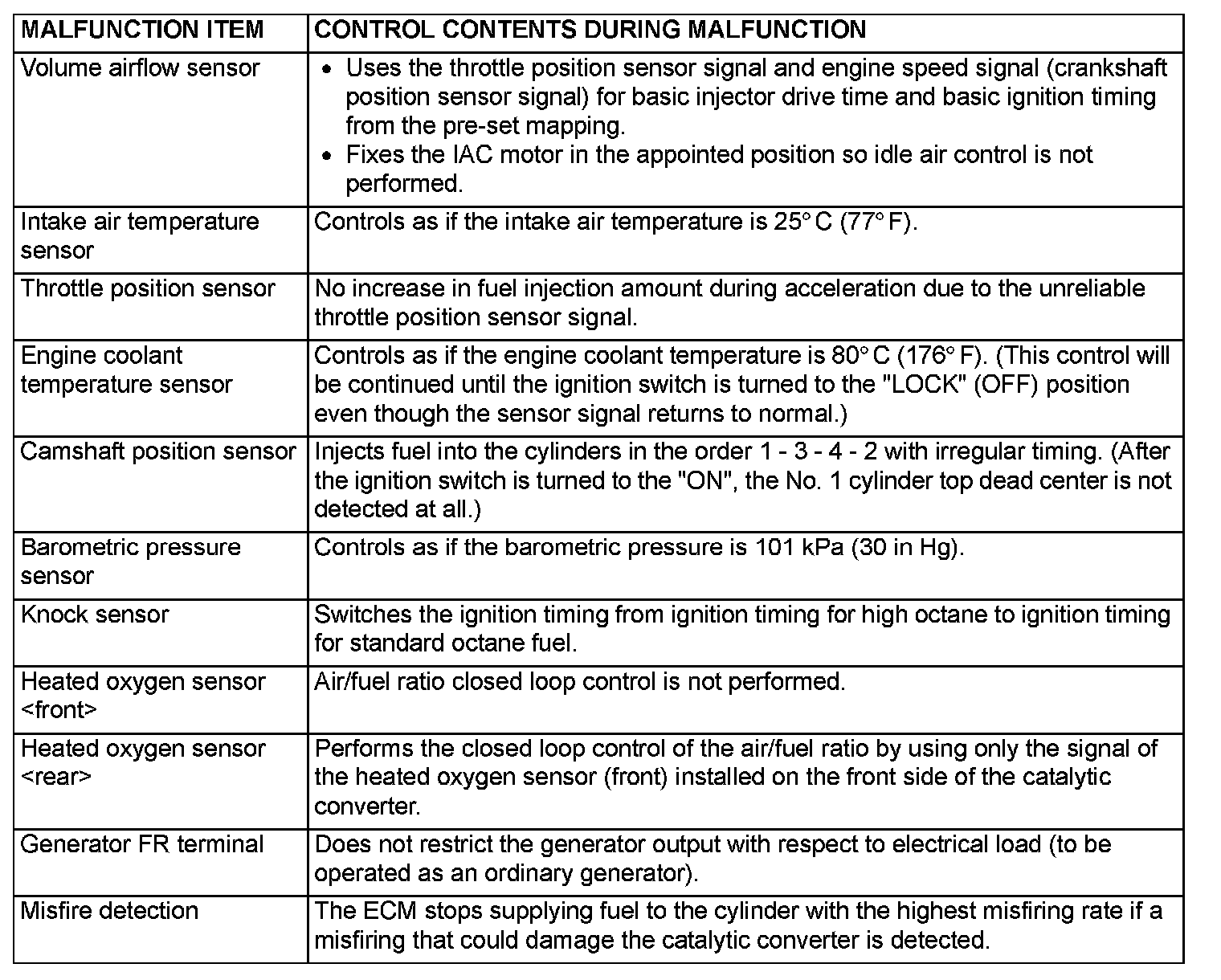

FAIL-SAFE FUNCTION REFERENCE TABLE




When the main sensor malfunctions are detected by the diagnostic test mode, the vehicle is controlled by means of the defaults.
