Fuse: Application and ID

CENTRALIZED JUNCTION

Fusible Link And Fuse

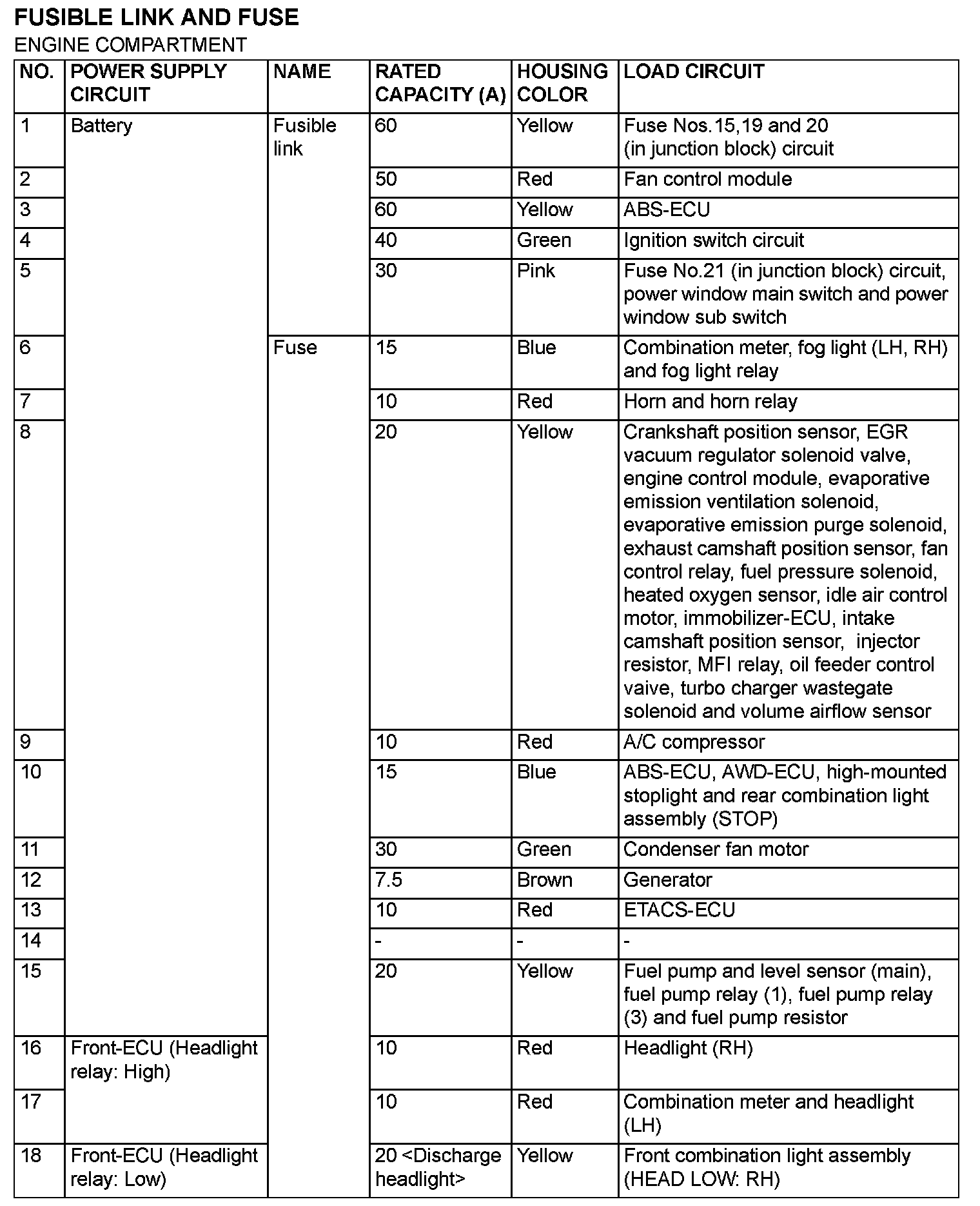

Application Table Part 1:

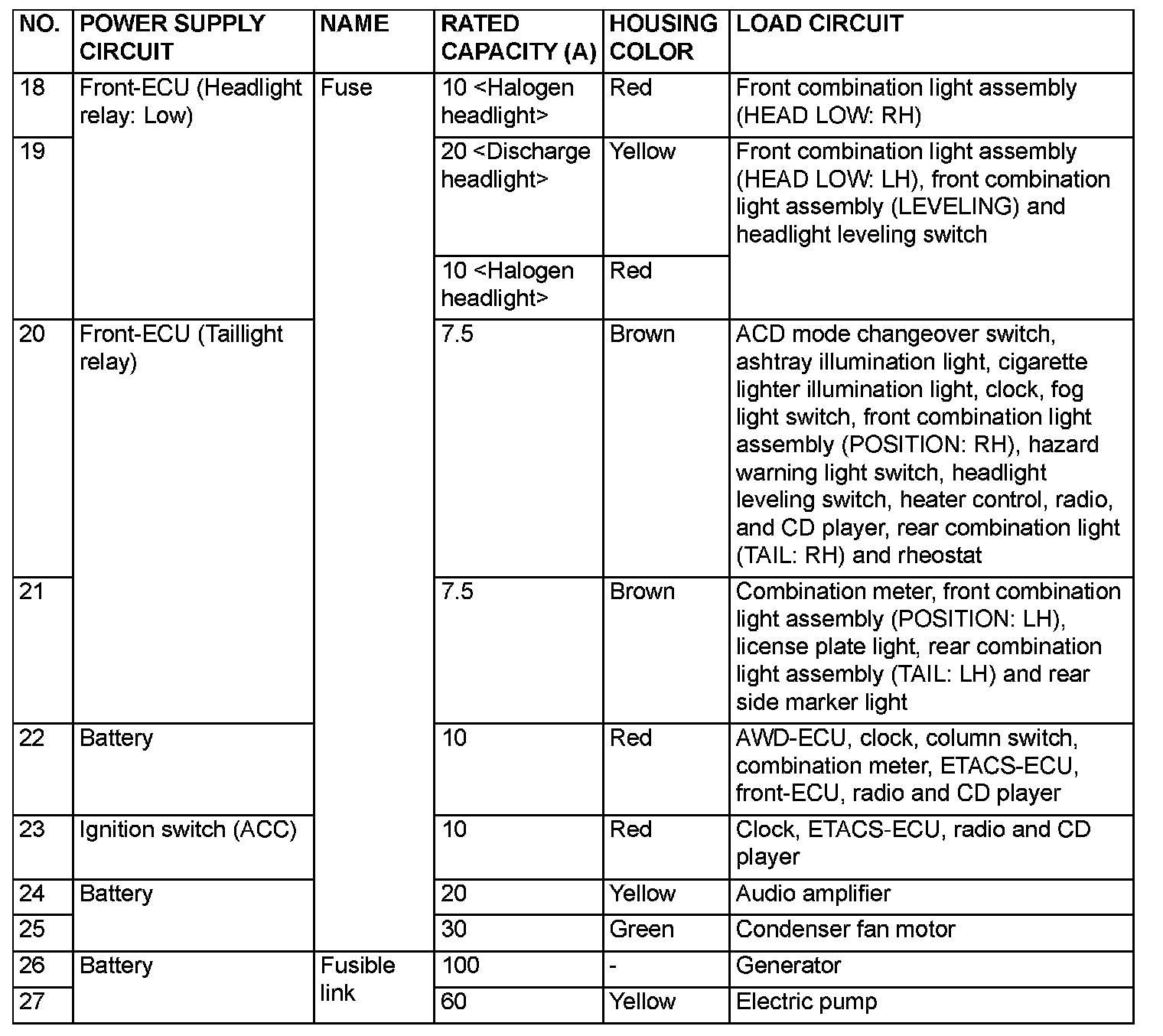

Application Table Part 2:

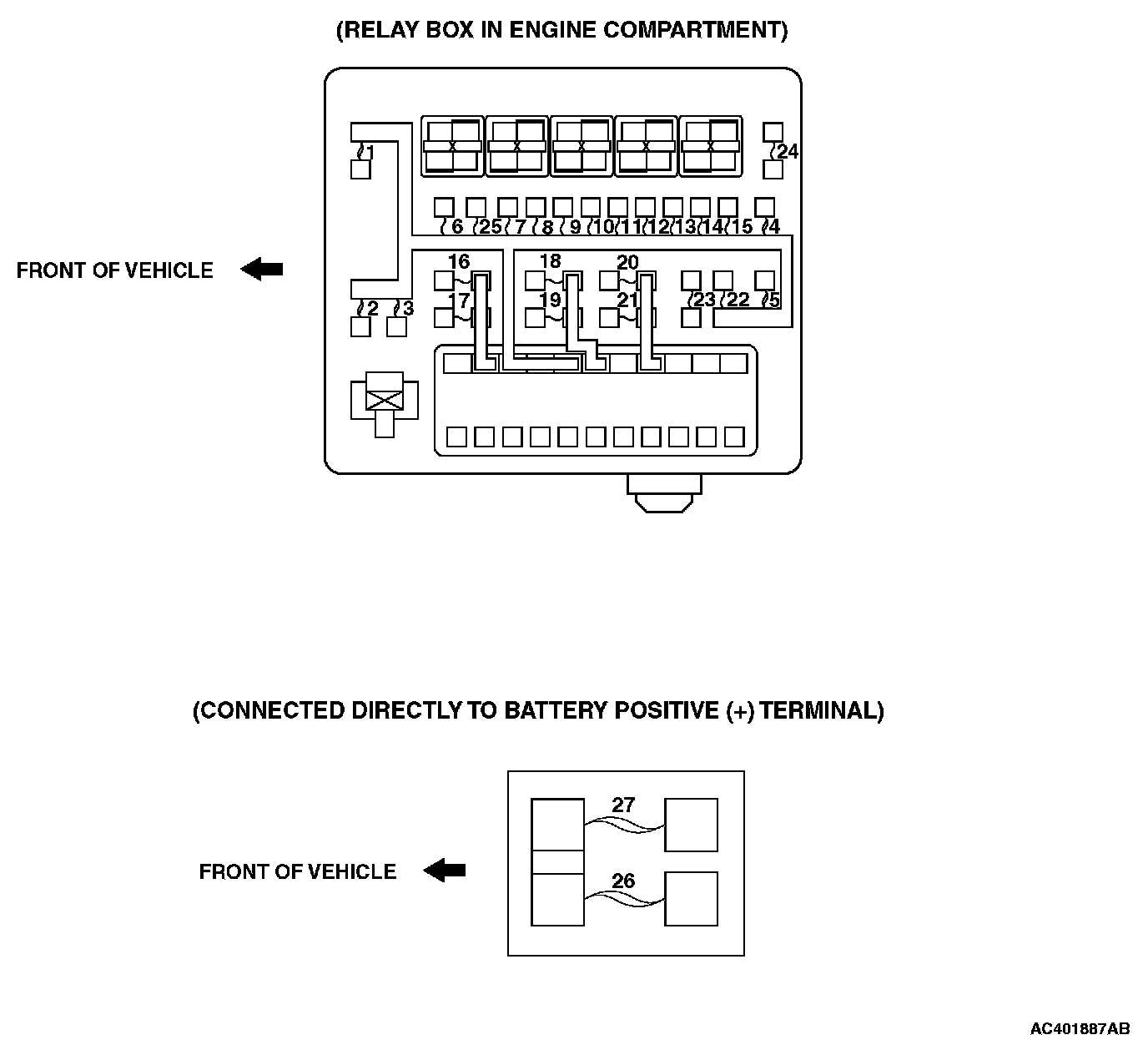

Location View:




Engine Compartment

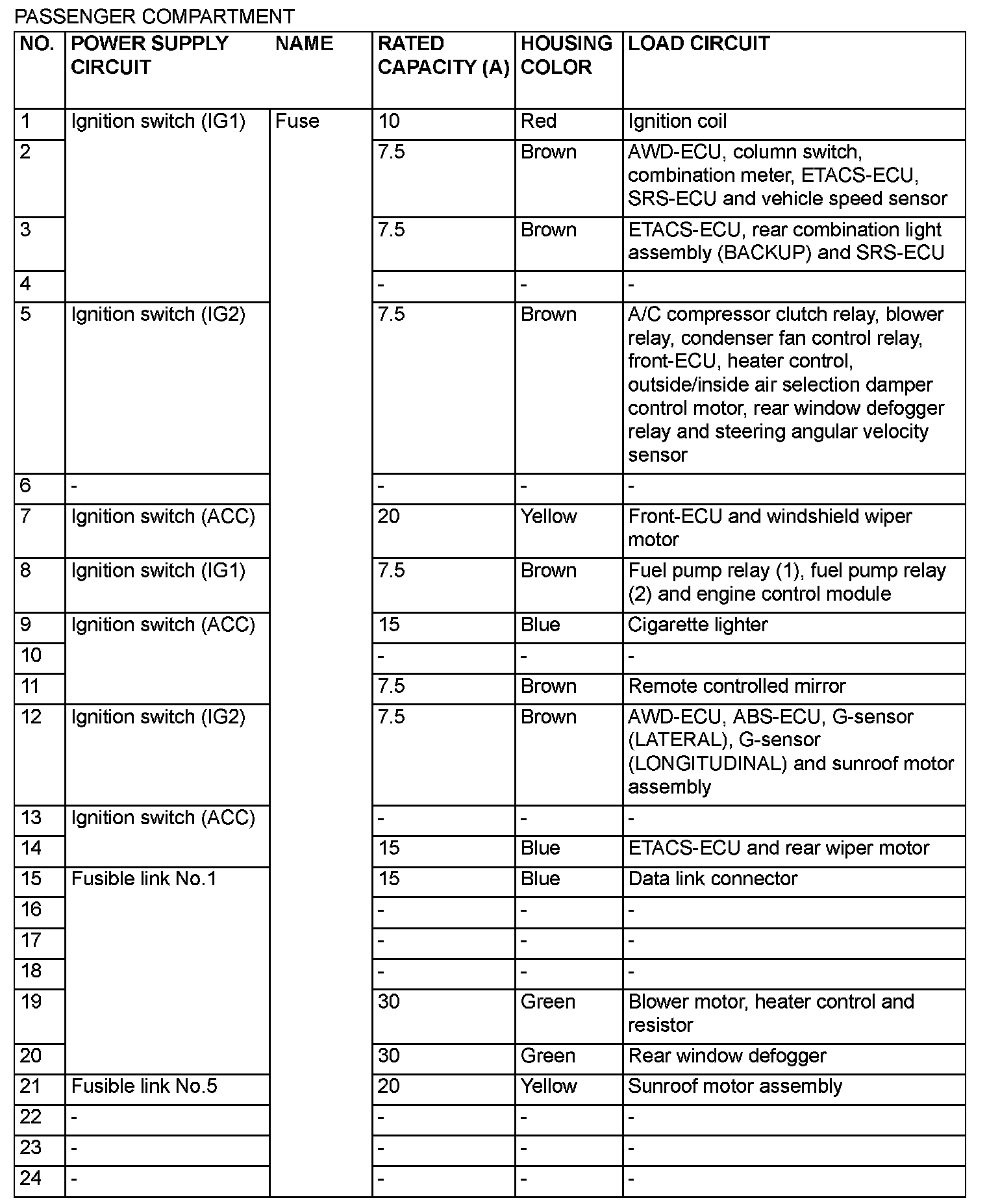

Application Table:

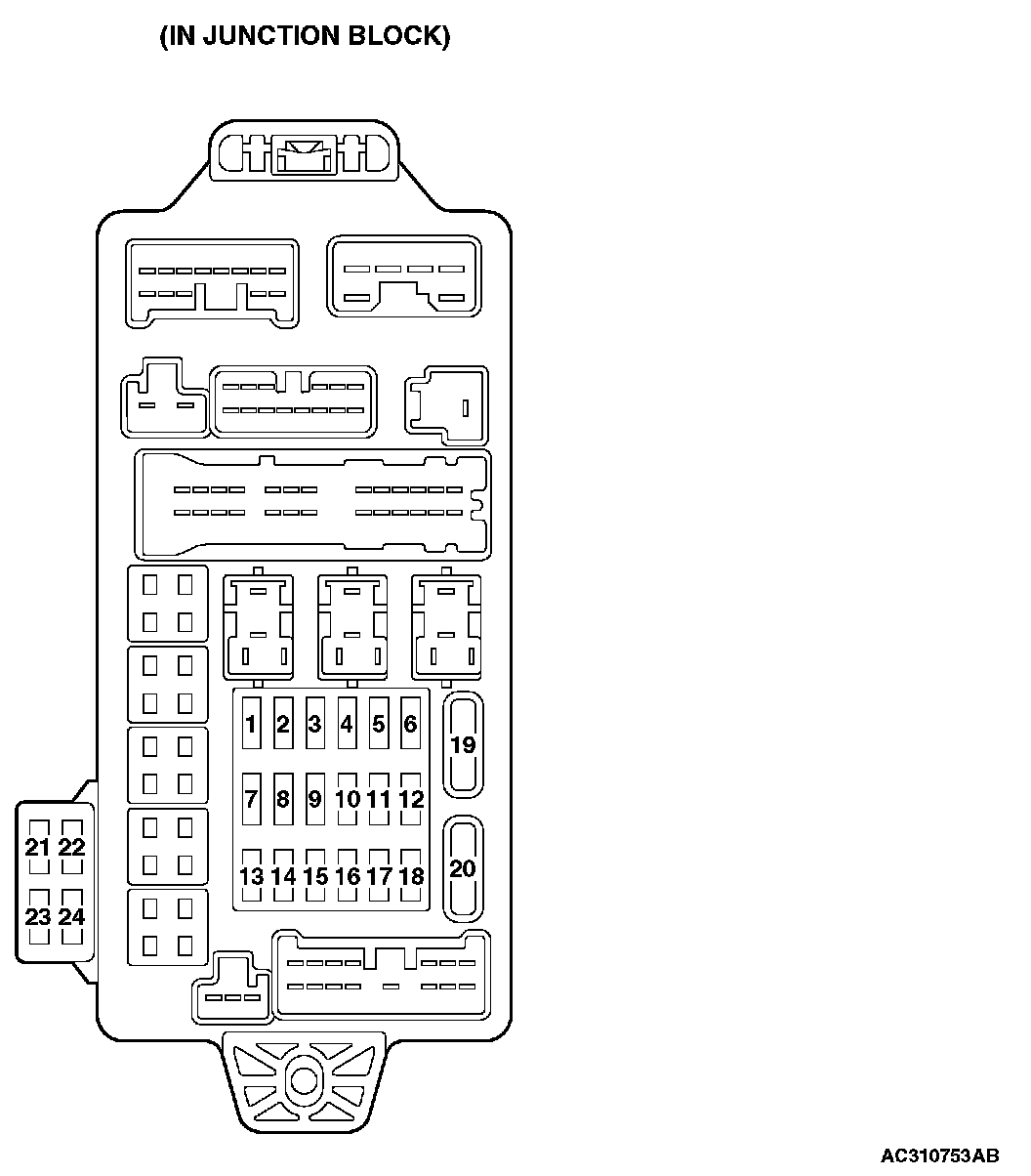

Location View:




Passenger Compartment
