Vehicle Lifting: Service and Repair

LIFTING, JACKING SUPPORT LOCATION

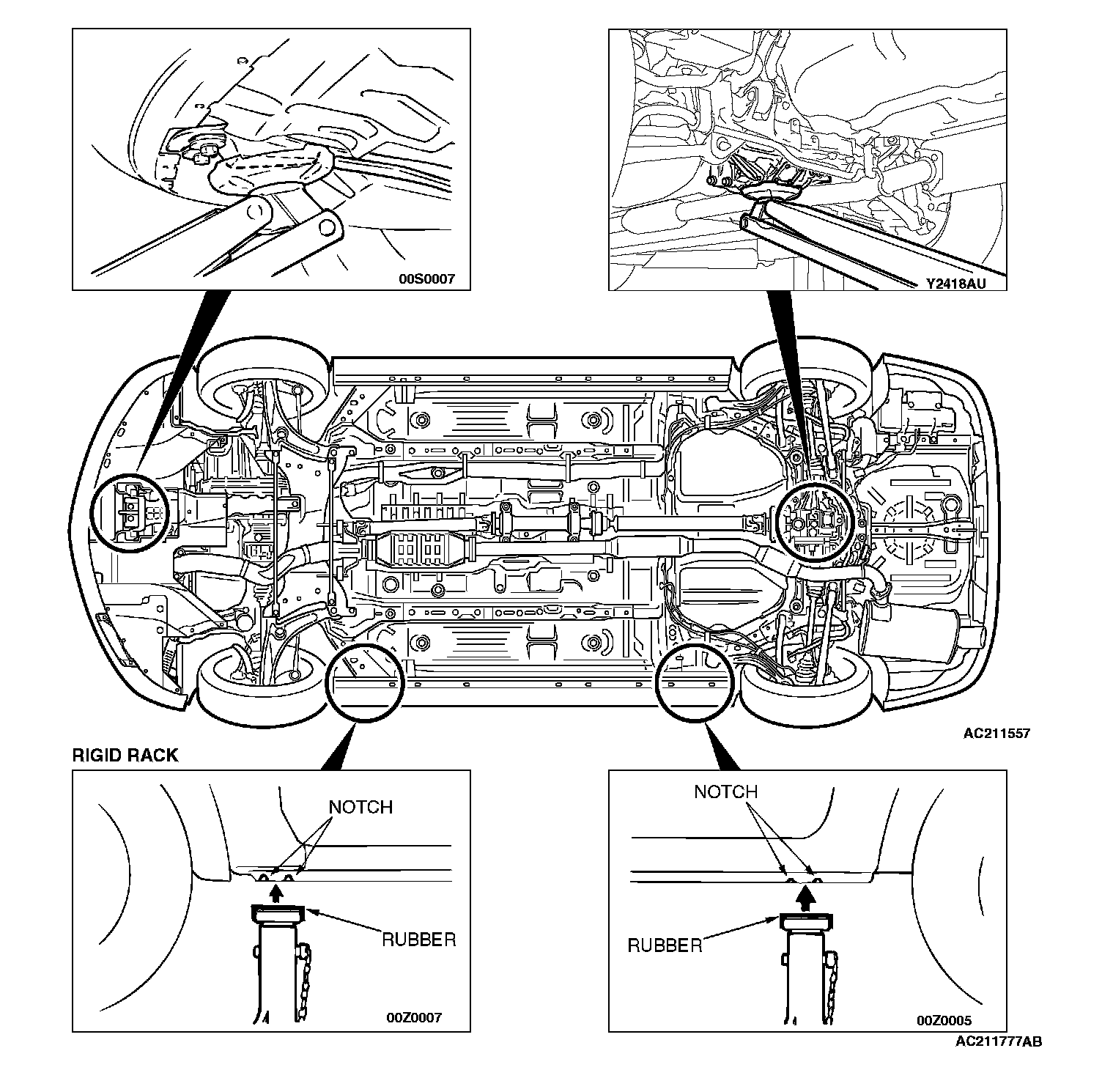

Floor Jack






Caution:
- Never support any point other than the specified one, or that point will be damaged.
- For lifting, put rubber or similar material between the side sill and rigid rack, or the side sill area will be damaged.

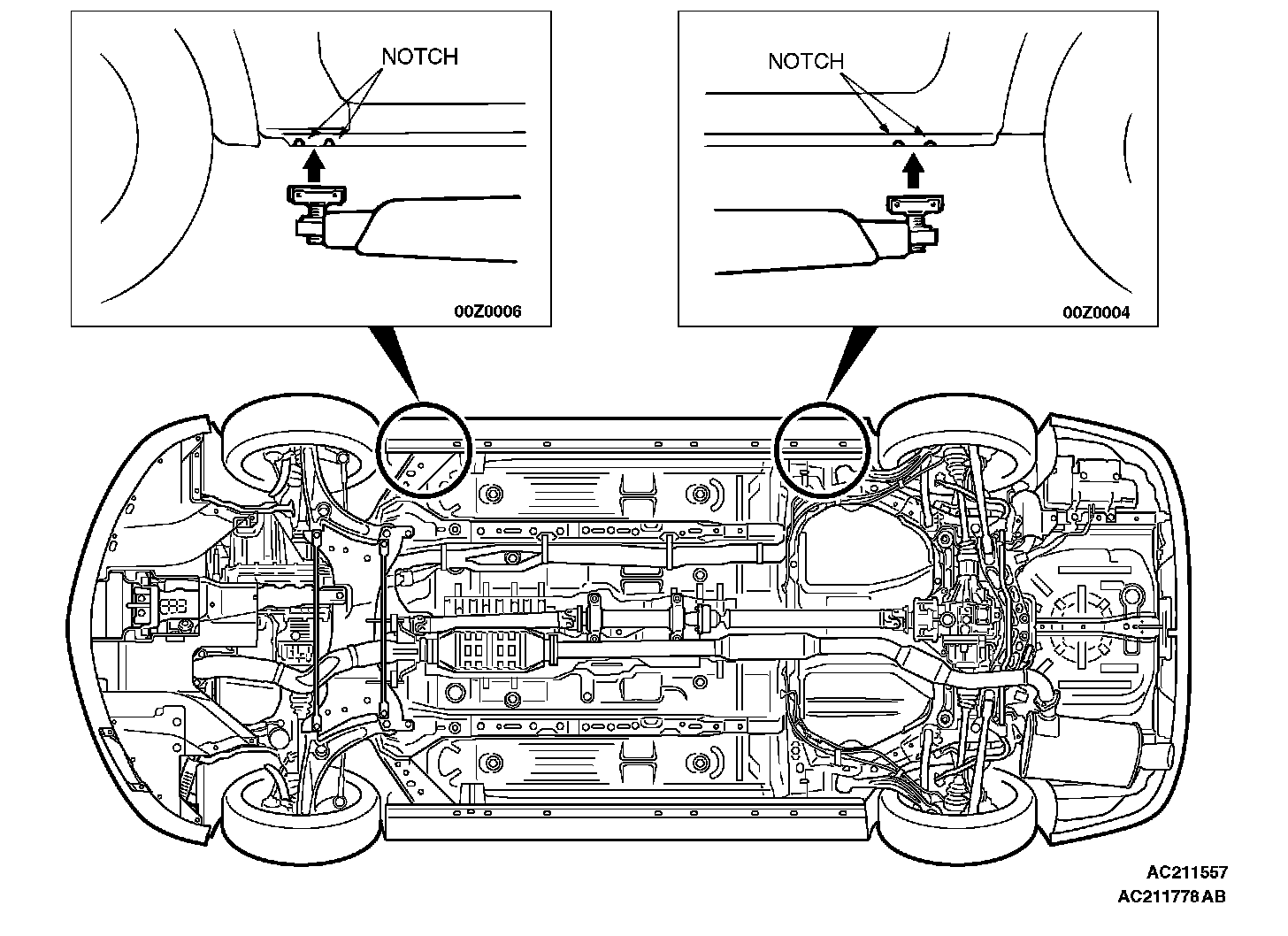

Post Type






Special care should be taken when raising the vehicle on a frame contact type hoist. The hoist must be equipped with the proper adapters in order to support the vehicle at the proper locations.

Caution: When service procedures require removing rear suspension, fuel tank and spare tire, place additional weight on rear end of vehicle or anchor vehicle to hoist to prevent tipping when the location of the center of gravity changes.
