Power Steering Line/Hose: Service and Repair

Part 1 Of 2:

Part 2 Of 2:

REMOVAL AND INSTALLATION

REMOVAL SERVICE POINTS
[[A]] EYE BOLT/RETURN TUBE REMOVAL
1. Loosen the crossmember mounting bolts and nuts, and lower the crossmember to a position so that the eye bolts or return tube at the steering gear side can be removed.

NOTE: In this case, do not remove the crossmember mounting bolts and nuts.

2. Remove the eye bolts or return tube.

INSTALLATION SERVICE POINTS
]]A[[ RETURN HOSE INSTALLATION

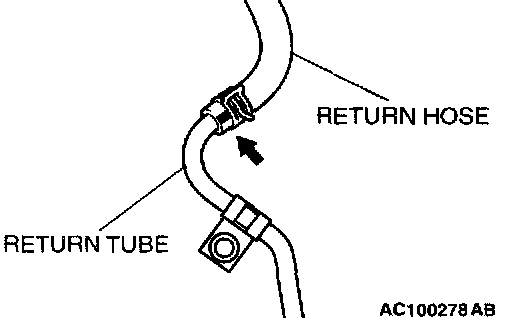

1. Install the return hose so that the marking is positioned as shown in the illustration.

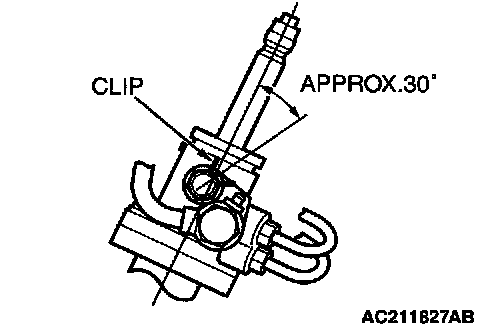

2. Install the clip as shown in the illustration.

]]B[[ PRESSURE HOSE/SUCTION HOSE INSTALLATION





1. Install the pressure hose on pump side so that the notch is fixed with bracket as shown in the illustration.
2. Install the suction hose so that the marking is positioned as shown in the illustration

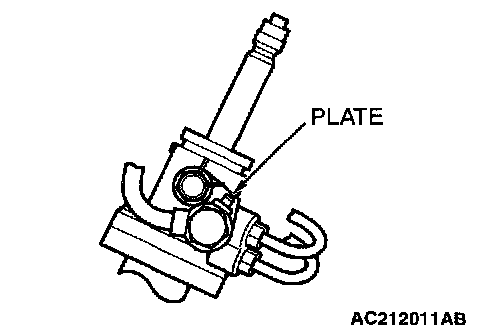

3. Install the pressure hose on gear box side so that its plate part is positioned as shown in the illustration.

]]C[[ RETURN HOSE INSTALLATION

Part 1 Of 2:

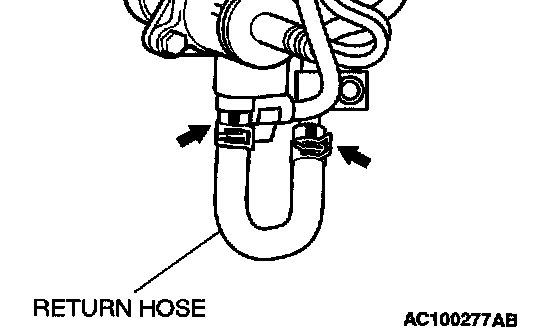

Install the return hose so that the marking is positioned as shown in the illustration.
