Hose/Line HVAC: Service and Repair

REFRIGERANT LINE

Removal And Installation:

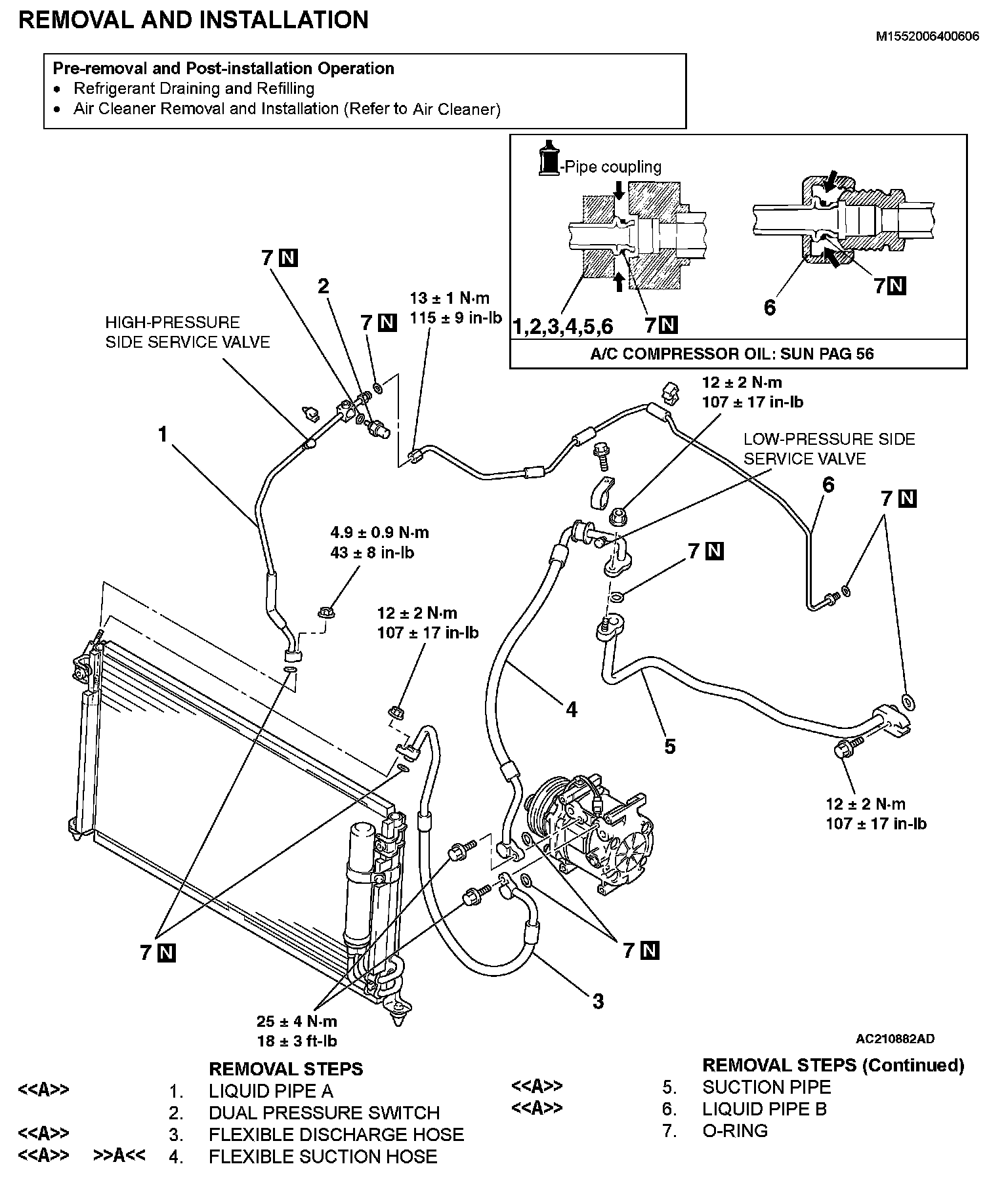

REMOVAL AND INSTALLATION

REMOVAL SERVICE POINT

<> LIQUID PIPE A, FLEXIBLE DISCHARGE HOSE, FLEXIBLE SUCTION HOSE, SUCTION PIPE, LIQUID PIPE B, DISCONNECTION

CAUTION: As the compressor oil and receiver are highly moisture absorbent, use a non-porous material to plug the hose and nipples.

To prevent the entry of other foreign material, plug the condenser, compressor, and expansion valve nipples.

INSTALLATION SERVICE POINT

>>A<< FLEXIBLE SUCTION HOSE INSTALLATION
When replacing the suction hose, refill them with a specified amount of compressor oil, and then install them.

Compressor oil: SUN PAG 56
Quantity: 10 cu.cm (0.3 floz)
