Home >> Mitsubishi >> 2006 >> Lancer Evolution L4-2.0L DOHC Turbo >> Repair and Diagnosis >> Lighting and Horns >> Tail Lamp >> Service and Repair

Tail Lamp: Service and Repair

REMOVAL AND INSTALLATION

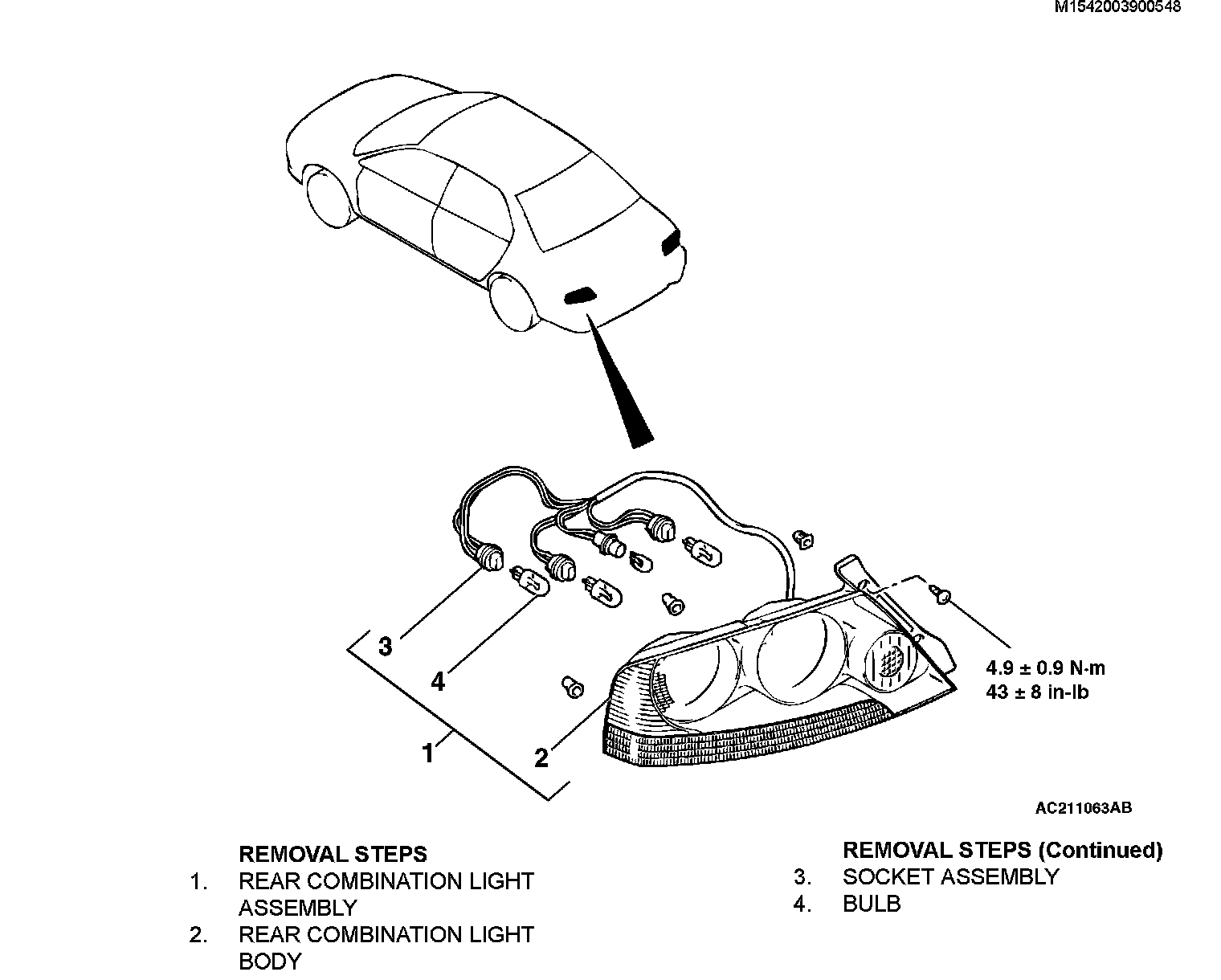

Removal Steps 1-4:






Required Special Tool:
- MB990784: Ornament remover
