Symptom Related Diagnostic Procedures

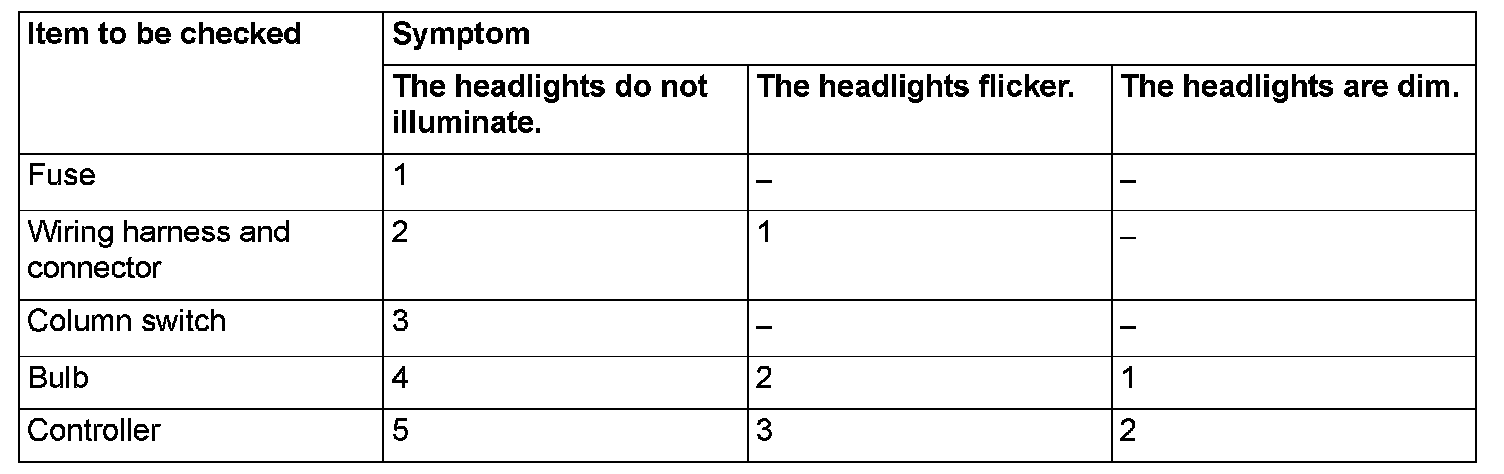

Symptom Chart

Symptom Chart:

NOTE:
1. The numbers indicate the sequence in which the component is checked.
2. Refer to for the troubleshooting other than above. (Refer to SWS Diagnosis - Symptom Chart in Body Control Systems.)
3. If the ETACS-ECU failed, only the low-beam headlights will illuminate as a fail-safe measure.
