Headlamp Bulb: Service and Repair

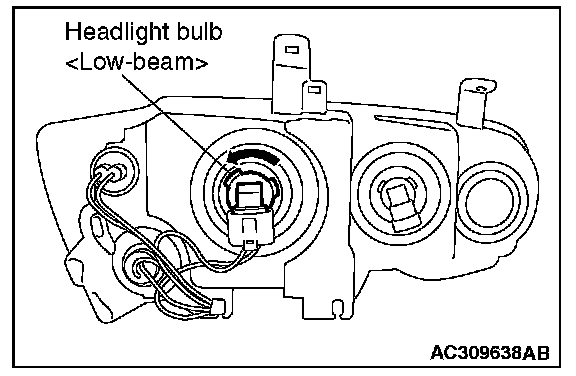

HEADLIGHT BULB




1. Disconnect the battery.
2. Disconnect the connector.

CAUTION: Do not touch the surface of the bulb with hands or dirty gloves, as the bulb may pop after a short time. If the surface does become dirty, clean it with alcohol or thinner, and let it dry thoroughly before installing.

3. Screw out the head light bulb.
4. Replace the valve, and connect securely the connector.

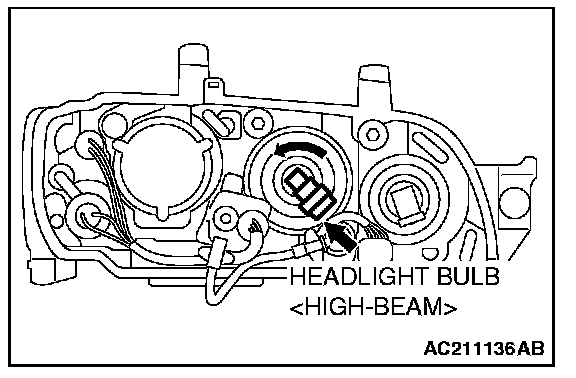

HEADLIGHT BULB




1. Disconnect the battery.
2. Disconnect the connector.

CAUTION: Do not touch the surface of the bulb with hands or dirty gloves, as the bulb may pop after a short time. If the surface does become dirty, clean it with alcohol or thinner, and let it dry thoroughly before installing.

3. Screw out the head light bulb.
4. Replace the valve, and connect securely the connector.
