Dimmer Switch: Testing and Inspection

RHEOSTAT CHECK

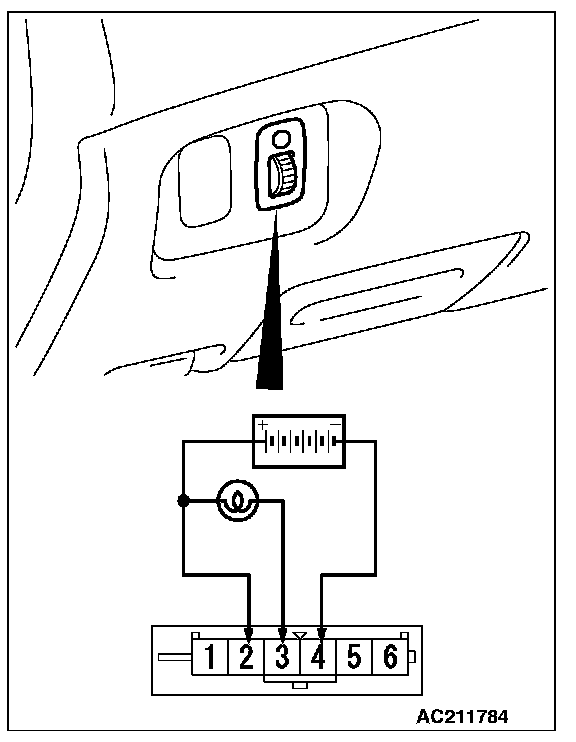

1. Connect a test light (40 W) as shown in the illumination.
2. Operate the rheostat, If the luminance of the lamp changes steadily with no flashing, the rheostat is functioning normally.
