FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mitsubishi
>>
2006
>>
Lancer Evolution L4-2.0L DOHC Turbo
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Instrument Cluster / Carrier
>>
Specifications
>>
Electrical Specifications
>>
Service Specification
Service Specification

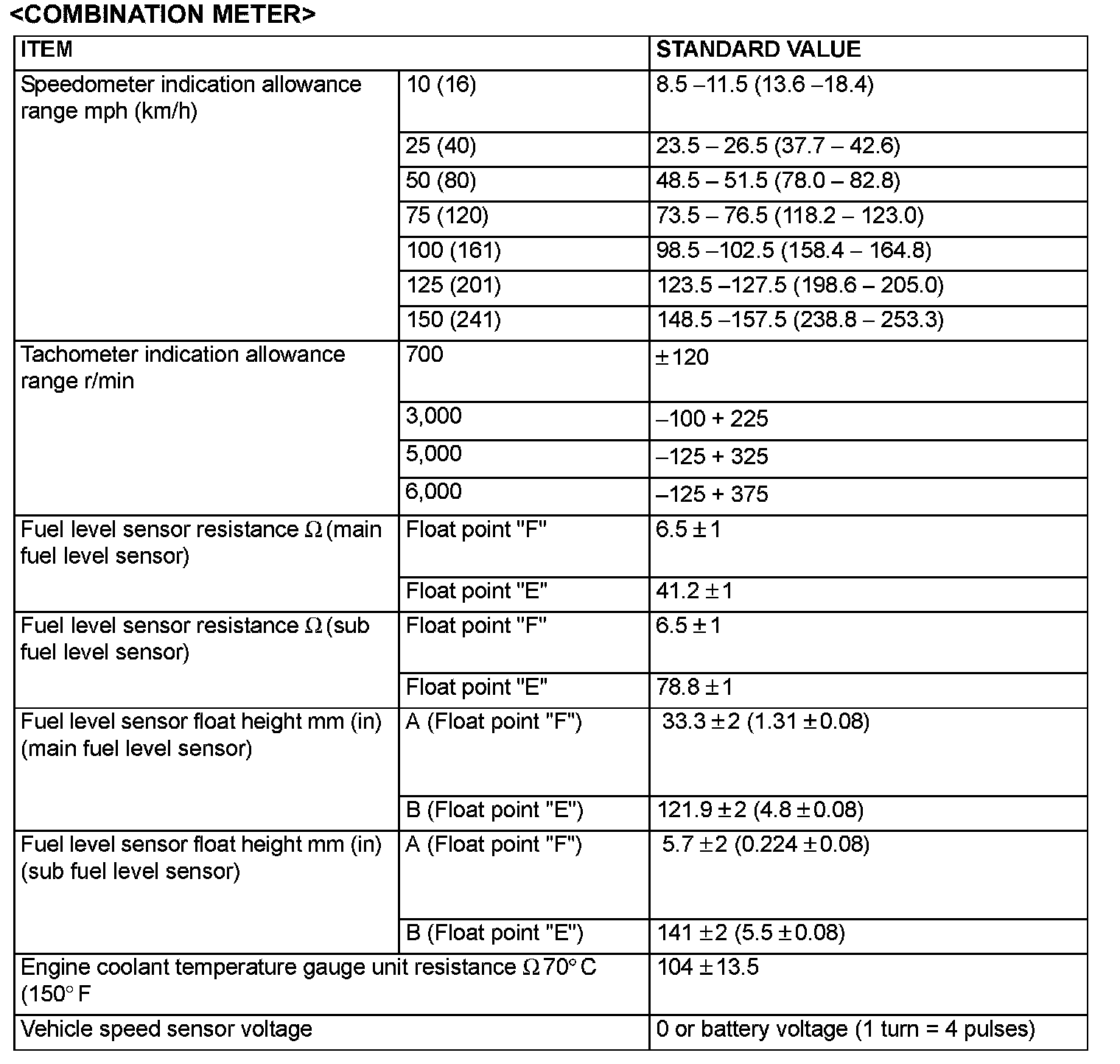

Service Specifications - Combination Meter:
